Stone Cutting Machine

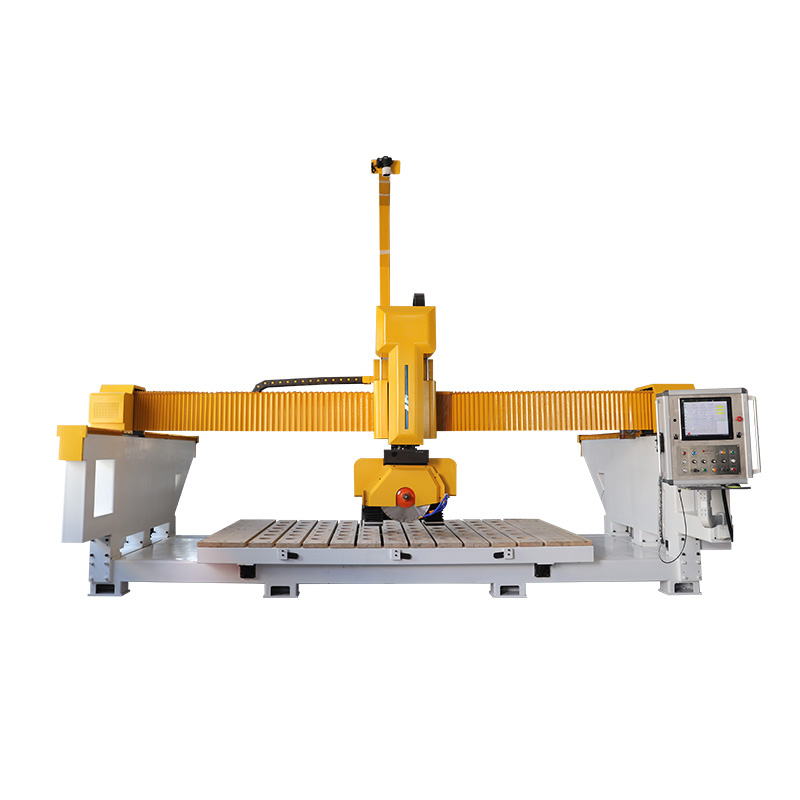

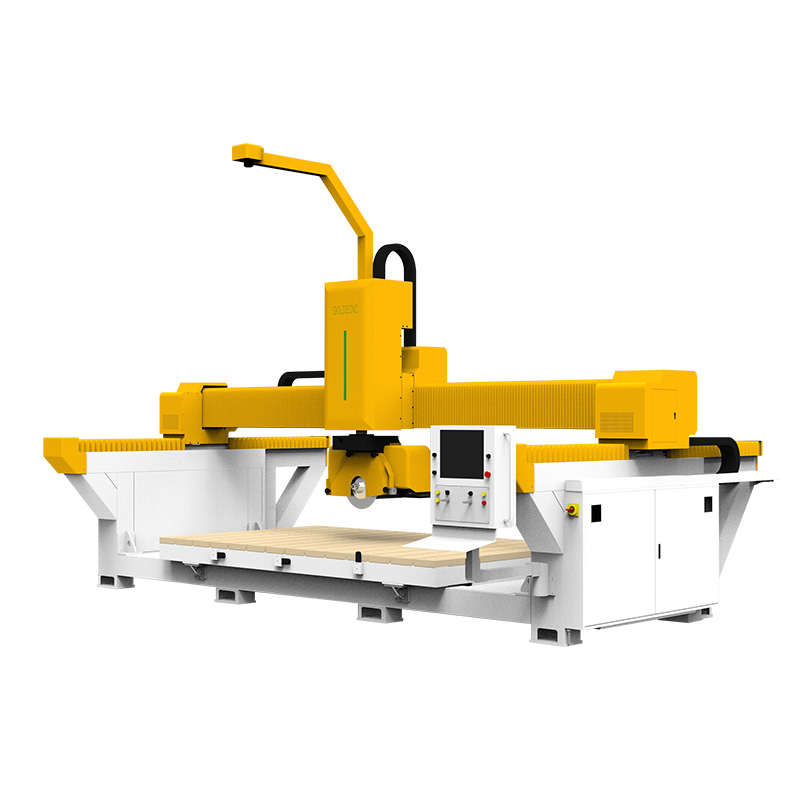

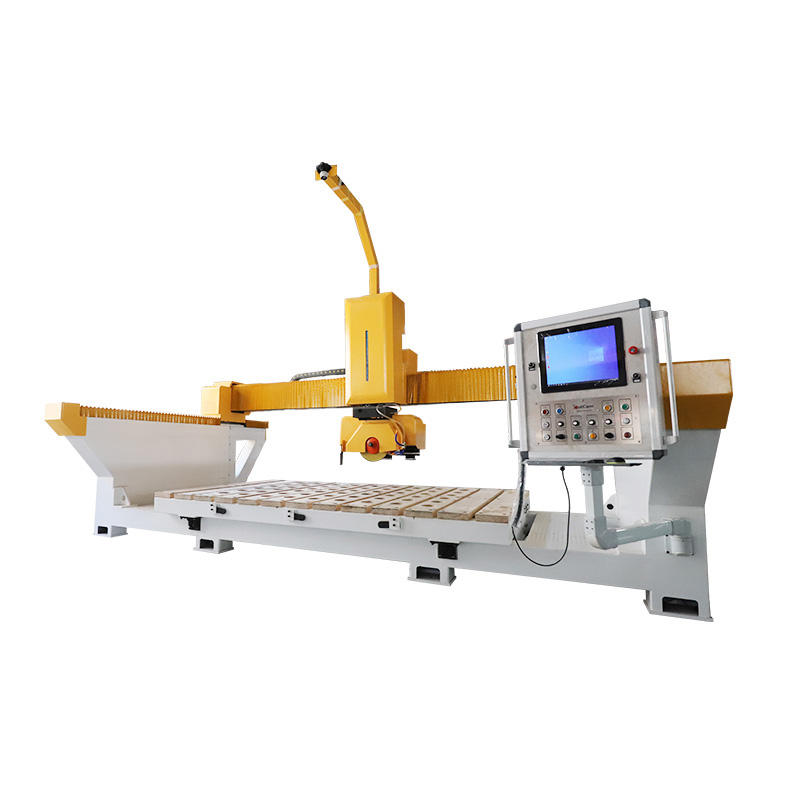

5 axis bridge saw stone cutting machine integrates horizontal cutting, vertical cutting, 45-degree oblique cutting, round, oval, special-shaped layout, infrared positioning, CNC automation, and other functions. It is used to cut quartz, granite, marble, rock slabs, ceramic tile, slate, and other stone materials.Some advanced CNC machines feature an automated tool changer that allows for seamless transitions between cutting, shaping, and polishing tools, optimizing workflow efficiency.
If you need more detailed information, please inform us as soon as possible.

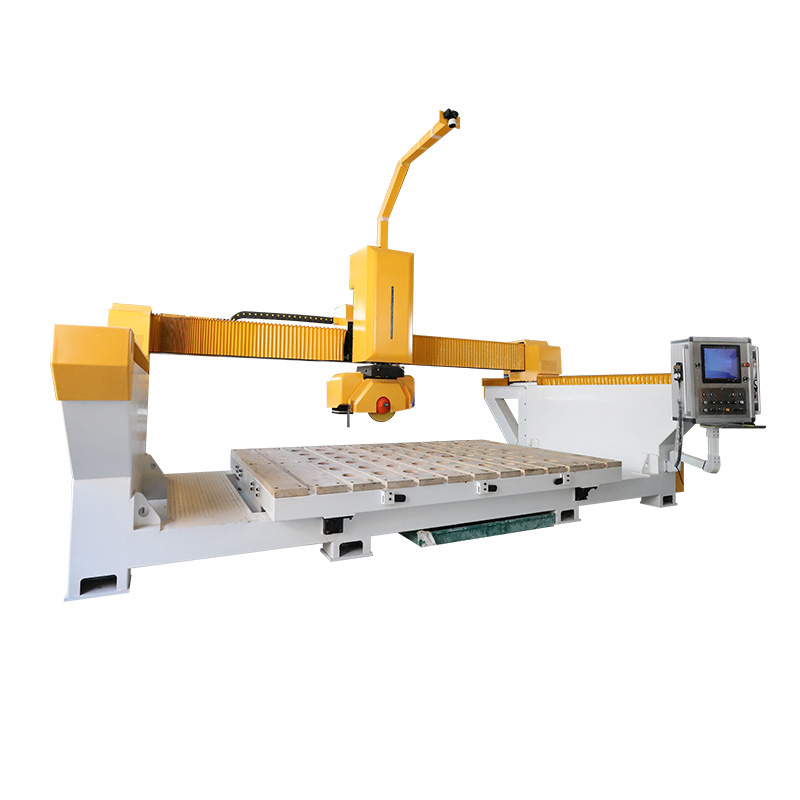

The 5 axis CNC stone bridge saw is good at cutting, milling, chamfering and edging quartz, marble, artificial stone and slabs in regular and irregular shapes. It can realize countertop cutting, bridge cutting, roman column cutting, arc line cutting, concave-convex cutting, and irregular edge cutting and milling.
The automatic stone cutting bridge saw can process products of sanitary ware, stone furniture, interior decoration, and other fields. For example, wash basins, bathroom countertop, stone tables, dinning tables, kitchen tables, kitchen cabinet basins, background wall, roman edge stone decorations, etc.
Durable
Good quality steel is used as the mechanical parts and reliable electric parts are used to guarantee high reliability & durability.
Multifunctional
It can do chamfer cut, straight cut, arc cut, arc cutting, shape cut, milling, drilling, line cut, and edging. With optional sensor, profiling function can be added.
User-Friendly
Automatic touch screen cutcam system,Professional CNC system, easy to set and machining, touch control, simple operation.
Precise
Magnetic ruler is adopted for slicing measure.
Laser device for accurate alignment.
Through the optimization of the process parameters by the numerical control system, the product data files can be stored in modules and called manually. The ideal effect of extremely coordinated movement of each precision component is realized. The process of machine cutting stone slabs can realize automatic and intelligent cutting of stone materials through the pre-setting of the cutting coding program and the automatic operation of the cutting process, so as to achieve the mass production of stone slabs.
1. The integrated design gives the machine more advantages, such as occupying small space, easy installation and debugging, high precision, stable performance, easy operation and so on.
2. Bridge, sliding rails and blade holder are built in strong and stiff cast iron for stability, durability and low resonance.
3. Cutting head rotate 90°, tilting 45° suitable for chamfering cutting.
4. 0° to 360° cutting head rotation and 0° to 90° cutting head tilting.
5. The worktable installs independently, the hydraulic console panel level 0, 45°, 90° turns. Worktable tilting vertical turn 85°, easier and safe loading raw materials.
6. The CNC bridge saw is made up of main motor, longitudinal slicing part, worktable assembly, electric control system, hydraulic system and so on.
7. The CNC bridge saw is equipped with infrared tool setting gauge, to accurately adjust the cutting size.
8. Once all the parameters are well setting, it is not necessary to have workers watching on machine. It will automatically stop once it finishes the cutting. It is an ideal automation equipment of stone slab cutting machine.
Technical indicators | parameter |
Model | iGS-B3620(Pro) |
Stroke of X axis | 3600mm |
Stroke of Y axis | 2000mm |
Z-axis stroke 1 | 255mm(Blade Diameter 400mm) |
A axis | 90° |
C axis | 360° |
Spindle (optional) | Standard 4.5kw water-cooled spindle (5.5kw optional) |
Saw blade motor power | 7.5kw/11kw / 15kw/18.5kw |
Blade Diameter | 350mm/400mm/450mm |
Motor power | XYZ axis 1.8kw (Z-axis holding brake); A-axis 0.85kw; C axis 1.3kw |
Input power | 3-phase AC 380V/220V 50-60Hz 10A |
Bridge Stone Saw Application
The CNC Bridge Saw is highly versatile, making it perfect for a range of stone-cutting applications. Whether you’re working on kitchen countertops, bathroom vanity tops, or other surfaces, this machine ensures high-quality, precise results every time. Here are its key applications:
• Kitchen Countertops: The machine’s precision makes it perfect for cutting and shaping granite, marble, and quartz kitchen countertops. It can handle both large and intricate designs with ease, ensuring top-quality results for customers.
• Bathroom Vanity Tops: The saw’s accuracy is ideal for creating vanity tops with perfect edges and smooth finishes. It is a popular choice for fabricators looking to create high-quality stone countertops for bathroom applications.
• Bar Island Counters: Whether you’re working with granite or marble, the 4 Axis CNC Bridge Saw can craft intricate and unique designs for bar island counters that enhance the aesthetic of any space.
• Coffee Table Surfaces: The machine is ideal for cutting and shaping stone tabletops for coffee tables. It ensures each piece is cut to size with precision, offering a smooth, professional finish.
• Stone Tabletops: Perfect for cutting tabletops in various styles, from traditional to modern. The saw provides precise measurements, ensuring the design fits the intended space perfectly.
• Architectural Stonework: Beyond countertops, this machine can be used for cutting and shaping architectural stone for various other applications, providing the same level of precision and quality for all projects.
