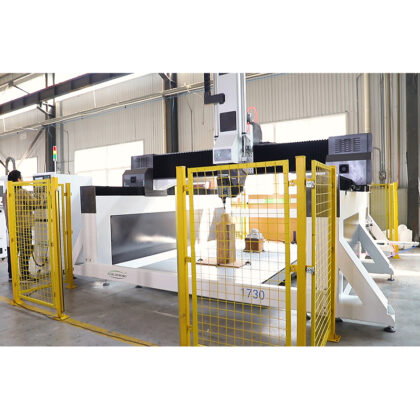

5 Axis CNC Machine with Gantry Moving for Wood Foam 3D Carving

Item No:: iGW-5GM

Advanced 5 axis cnc machine, also known as 5 axis cnc machining center, 5 axis cnc milling machine, is good at space curved surface processing, special-shaped processing, hollow processing, punching, oblique drilling, chamfering, etc. It is widely used in aerospace, military scientific research, precision machinery, high-precision medical equipment, normal manufacturing, etc.

Category: CNC Router>>Woodworking>>5 Axis
Response time: Within 1 hour
Supply Ability: 200 sets/month
Price Range: $70270-$72270

Get Latest Price:

Description

Who is it for?

The best 5 axis CNC machine with gantry moving and 5-axis spindle, it’s easy to accomplish full set processing of complex parts from milling, slotting, drilling, sawing, mortise, mortise, etc, the advanced model designed by iGOLDENCNC, combined with a competitive set of configurations. Hot applications include:

>Composite materials industry: Trimming and punching of various composite materials such as plastic parts, glass fiber reinforced plastic parts, rubber and plastic products;
>Mold industry: 5 axis processing of FRP wood mold, casting wood mold, resin products, sludge model and various non-metal molds;
>Ceramic sanitary industry: 5 axis processing of gypsum molds, 5 axis processing of various gypsum products;
>Furniture industry: 5 axis processing of solid wood furniture, 5 axis processing of various furniture tenon and mortise pieces, 5 axis processing of stair elbows, and 5 axis processing of various furniture.

What makes it unique?

Popular with manufacturer or factory with high-precision curved special shape processing requirements, which can finish the complicated process, the iGW-GM series 5 axis CNC machine is suitable for high precision industry and manufacturing industry.

>3D carving, special-shaped processing professor;
>Mechanized processing of complex workpieces to improve production efficiency;
>Heavy industry quality, stable operation for 10 years;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.

Applications of 5 axis CNC machine

Instruments Processing

Wooden Crafts Carving

Molding Processing

3D Molding Carving

Glass Steel Processing

Foam Molding Milling

Blister Pieces Processing

Bathroom ACCES. Processing

Positioning Accuracy ±0.02mm
Repositioning Accuracy ±0.02mm
Command Language G Code
Flash Memory 128G
Max. Rapid Travel Rate 60000mm/min
Max. Working Speed 30000mm/min
Spindle Power 14-17kw air cooling
Spindle Speed 24000rpm/min
Working Voltage 380V/50Hz
Running Environment Temperature About 25℃
Relative Humidity <85%
Ps. Adjustment is available according to locally requirement
Working Area (X,Y) 2000*3000(The length of Y-axis is no limited)
Z-axis Height 1000-2000mm
Packing Size 4800*2400*3500mm
N.W./G.W. 10000/12000kg

Features of 5 axis CNC machine

14-17kw 5-axis ATC Spindles

Spanish akemd five axle head and 14.4-17KW spindle

>High speed, low noise, zero maintenance cost and long service life.
>Fast automatic tool change and improve work efficiency;
>High engraving strength and normal operation under low-temperature conditions;
>Stable operation, high accuracy and long life;

Disc Tool Bank

Tool magazine with 6-10 discs on the side.
Load 6-10 tools with different functions at one time and change the tool in 2 seconds.
Save time for manual tool change and improve work efficiency.

The Third-generation Gantry

The thickened rectangular tube beam has an extended design and can withstand a weight of up to 1500kg. It is tempered and tempered at high temperature, and annealed.
High strength, good rigidity, light weight, no deformation, long service life.
The damage to the motion conduction device is small, and the resistance to the drive motor is small, so that the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use costs are reduced.

Cast Iron Worktable

Flake graphite cast iron, the minimum tensile strength is 200MPa.
Has strong shock absorption and wear resistance; high carbon content, high compressive strength and high hardness; moisture resistance, corrosion resistance, acid and alkali resistance, non-magnetic, strong stability.
The low thermal sensitivity reduces the loss of the equipment and maintains the stability and long-term accuracy of the long-term life cycle without deformation during the life cycle. The rapid exchange can be realized within 10S of the double table, which greatly improves the work efficiency.

High-precision Transmission System

The positioning accuracy of the machine is 0.02mm, the maximum running speed is 60,000mm/min, and machine working life up to 10 years.

Taiwan HIWIN Guide Rails and Rack

Japan YASKAWA Servo Driver

Japan SHIMOP Reducer

Upgraded Intelligent Control System

Taiwan SYNTEC 5 axis System.

>Strong compatibility Compatible with many CAD / CAM software such as Type3 / Artcam / Castmate / Proe / UG / Carved Wentai;
>Advanced file pre-processing function helps users to correct errors in processing files in time;
>Advanced three-dimensional curve prediction algorithm, the polyline is stable, ensuring the speed and accuracy of the curve;
>It has the function of breakpoint and breakpoint engraving, and the function of automatic error correction when returning to the origin, which effectively guarantees the processing accuracy when working for a long time;
>The system is easy to operate, responds quickly, and quickly removes obstacles, which is conducive to learning.

High-precision Automatic Tool Sensor

High precision automatic tool sensor, 1um repeatability, suitable for 95% of the operating system in the market, easy to install, super-hard alloy for the blade surface, stable and durable, IP67 class deep waterproof.
Compared with a manual toolset, the machining accuracy and work efficiency are improved. The operation time is saved by 70%, the machining accuracy is increased by 30%, and the defective rate of products is reduced.

France Schneider Electric Components

Advanced anti-interference ability, stable signal, suitable for the different working environment, high safety.
Stable operation for 10 years, ensure engraving machine circuit safety, safety performance improved 50%.

Automatic Lubrication System

Guaranteed machine’s lubrication all the time, ensure the smooth operation of the CNC router, with abnormal alarm and liquid level alarm. It will extend the service life of the transmission system and whole machine, and reduce maintenance time, increase your profits.

Options of 5 axis CNC machine

Worktable Optioned

Cast iron worktable is standard worktable.

Steel plate welding worktable can be optioned.

Dust Collector Device

A special dust remover for woodworking machines with the antistatic device, explosion discharging device and strong pulse blocking device is adopted. The dust removal efficiency can reach 99%, and there is no dust flying for two times.

Energy-saving and environmental protection to ensure the safety of operators and safe and stable operation of equipment.

Foam mold, wood mold, large plastic mold, large casting mold.
Processing and manufacturing of lampshade molds and large special molds.

1. The 5 axis cnc router body is constructed of stainless steel alloy. The bed is subjected to high temperature quenching, which provides a more stable processing platform for the machine tool, and the bed parts have been cleared of mechanical stress before the bed is processed.
2. The 5 axis cnc router positioning bearings, ball screws, linear guides, and racks all have centralized active smoothing systems for machine tool control systems to support them. This is the way that ball screw and linear guide makers recommend consistently.
3. Each 5 axis cnc router is equipped with a compatible tool magazine as standard. This tool magazine is controlled by a CNC computer, which makes the engraving machine tool change fast and reliable.
4. The vacuum adsorption table of the 5 axis cnc router is divided into six processing areas, which can be processed in a single area or at the same time. The processing efficiency has been improved.
5. The Z-axis of the 5 axis cnc router is supported by the pneumatic equalization system. The pneumatic equalization system is a closed ring whose function is to minimize the amount of air used during operation.
6. The 5 axis cnc router is controlled by an integrated industrial computer to ensure high-speed and high-precision machining of the machine.

Four axis can only engrave cylinder.
Five axis can engrave various shapes.

5 axis cnc router generally uses syntec, Osset, Siemens System.
