In the world of advanced woodworking, the 5 axis CNC wood carving machine stands as a symbol of innovation, precision, and limitless creativity. Unlike traditional routers or even 3-axis CNC machines, a 5-axis CNC machine offers unparalleled freedom of movement, enabling artisans and manufacturers to carve complex 3D shapes, undercuts, and intricate geometries that were once impossible or extremely labor-intensive.

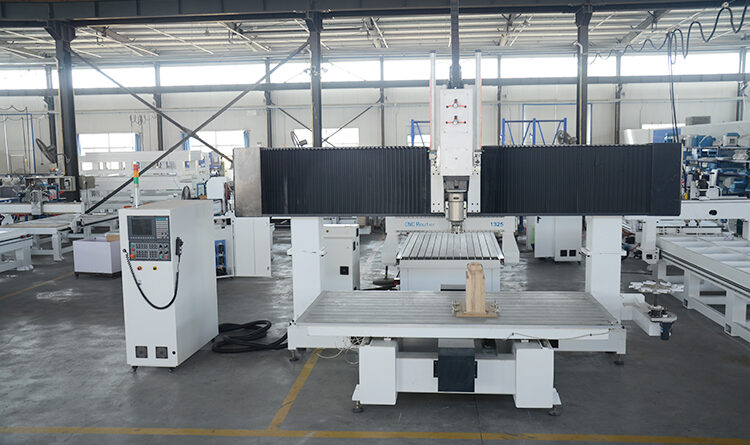

5 Axis CNC Wood Carving Machine

A 5 axis CNC wood carving machine is a computer-controlled cutting tool that moves along five different axes simultaneously. While most CNC machines operate on three axes (X, Y, and Z), a 5-axis machine adds two additional rotational axes—A (rotation around X) and B (rotation around Y)—allowing the cutting tool to approach the workpiece from virtually any angle.

This enhanced mobility enables the machine to perform highly complex carvings, such as organic shapes, deep reliefs, and compound curves, with exceptional detail and surface finish.

How Does a 5 Axis CNC Wood Carving Machine Work?

The machine operates by interpreting a 3D CAD model, which is then converted into a CAM toolpath. The controller processes this data and moves the cutting tool along five axes: X-axis – Left to right Y-axis – Front to back Z-axis – Up and down A-axis – Rotation around the X-axis B-axis – Rotation around the Y-axis This simultaneous movement allows the tool to maintain optimal cutting angles, resulting in smoother cuts, fewer passes, and reduced tool wear.

features of the 5 Axis ATC Cnc Router

The 5 axis cnc router is good at processing methods such as space surface processing, special-shaped processing.

All famous brand and high quality choice, ensure machine with high performance and long working life.

The workpiece can complete complex processing needs in one clamping, and it can adapt to the processing of modern molds such as auto parts and aircraft structural parts.

Details

Disc Auto Tool Changer

8pcs carousel auto tool changers, HSK63F tool holder.

The tool magazine is fixed on the side of the gantry, always at the same horizontal line as the spindle, don’t need to change tools manually when machine works, improve efficiency a lot.

Italian Hiteco 12kw 5axis spindle

It is professionally applied to 5-axis cnc router.

it has strong cutting ability and low noise, which can ensure the machine to work for a long time.

Syntec controller 21MA

Professional famous brand in 5 axis machine line.

Five-axis linkage with RTCP function (true five-axis interpolation) , suitable for large-scale three-dimensional curved surface machining modeling.

Applications of 5 Axis CNC Wood Carving Machines

The versatility of a 5-axis CNC machine makes it ideal for a wide range of industries and creative fields:

Custom Furniture Design – Sculptural chairs, curved table legs, and artistic furniture elements .

Architectural Woodwork – Ornate moldings, corbels, columns, and ceiling medallions.

Fine Art and Sculptures – Organic forms, statues, and abstract carvings .

Musical Instruments – Carving guitar bodies, violin tops, and intricate inlays.

Restoration Work – Reproducing historical wood carvings with precision.

Mold Making – Creating wooden molds for casting or composite fabrication.

Workflow: From Design to Carving

1. Design in CAD

Create your 3D model using software like Fusion 360, Rhino, or SolidWorks.

2. Generate CAM Toolpaths

Use CAM software to define toolpaths, cutting strategies, and simulate the carving.

3. Post-Process to G-Code

Export the toolpath into G-code compatible with your CNC controller.

4. Setup the Machine

Secure the wood, calibrate the tool, and set the origin point.

5. Run the Program

Execute the job while monitoring for tool wear, debris, and machine behavior.

6. Finishing

Light sanding or sealing may be required depending on the surface quality.

Frequently Asked Questions (FAQ)

1. What’s the difference between 3-axis and 5-axis CNC routers?

A 3-axis router moves in X, Y, and Z directions, while a 5-axis router adds two rotational axes, allowing for multi-angle cutting and complex 3D shapes.

2. Can I use a 5-axis CNC router for materials other than wood?

Yes! With the right tooling, you can cut foam, plastics, composites, and soft metals like aluminum.

3. Is 5-axis CNC difficult to learn?

While there is a learning curve, modern CAD/CAM software makes it accessible. Many platforms offer tutorials and simulation tools to help beginners.

4. How much space does a 5-axis CNC machine require?

Industrial models can be large. Ensure you have adequate floor space, ventilation, and power supply.

5. What is the best software for 5-axis CNC wood carving?

Top options include Fusion 360, PowerMill, RhinoCAM, and Vectric Aspire for advanced 3D modeling and toolpath generation.

Conclusion

The 5 axis CNC wood carving machine is the ultimate tool for those who demand precision, complexity, and artistic freedom in their woodworking projects. It bridges the gap between craftsmanship and automation, enabling you to produce museum-quality carvings, architectural masterpieces, and high-end furniture with ease.

Whether you’re scaling up your production or pushing the boundaries of design, a 5-axis CNC machine is a transformative investment that will elevate your woodworking to a professional, world-class level.
