Small CNC Router for Beginners
Item No:iGW-M
A small CNC router is a computer-controlled cutting machine that is used to carve and shape a variety of materials such as wood, plastics, and metals. They offer exceptional accuracy, speed, and repeatability, allowing you to create intricate designs and shapes with ease. If you are new to the world of CNC routing, a small CNC router is a great place to start.
Price Range: $12500-$14500
Category: CNC Mini Carving Machine
Description

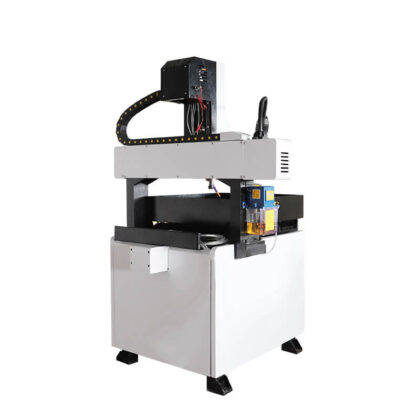

Best CNC Router for Small Shop
A small cnc router for beginners is a computer-controlled cutting machine that uses a rotating cutting tool to remove material from a solid block of material. As the name suggests, the machine has three axes; X, Y, and Z. The X-axis controls the left and right movement, the Y-axis controls the forward and backward movement, and the Z-axis controls the up and down movement. The machine can cut and shape various materials such as wood, plastic, metal, foam, and many more. The small CNC router has a cutting area of 600 x 900 mm (2ft x 3ft), making it suitable for various types of projects.
A small cnc router for beginners is a computer-controlled cutting machine that uses a rotating cutting tool to remove material from a solid block of material. As the name suggests, the machine has three axes; X, Y, and Z. The X-axis controls the left and right movement, the Y-axis controls the forward and backward movement, and the Z-axis controls the up and down movement.
Small CNC router come in various sizes and configurations. The most common sizes are 2′ x 2′, 2′ x 3′, and 2′ x 4′. They are available in different power options, ranging from 500 W to 3 kW. The spindle speed ranges from 10,000 RPM to 24,000 RPM, depending on the model. Small CNC machines are popularly equipped with a 3-axis, 4-axis, or 5-axis system.

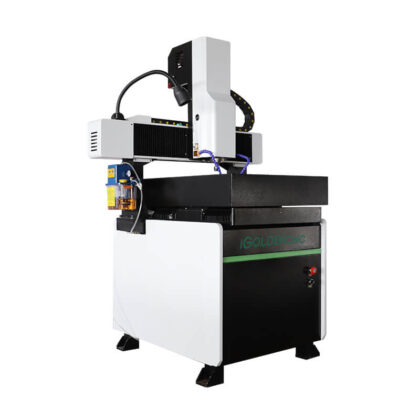

Parameter of Small CNC Wood Router
| Technical indicators | parameter |
| Model | iGW-M |
| Operating stroke | 600*600*200mm |
| Control system | DSP A11 |
| Bed | Welded bed |
| Spindle | 2.2KW/3KW water-cooling |
| Guide rail | Taiwan Hiwin 20 |
| Screw | Three axis 25 lead screw |
| Motor | Stepper 450B/ Hybrid servo 758 |
| Table | Cast iron countertop |
| Cabinet | Built-in cabinet |
| Oiler | Hand oiling |
| Inverter | Fuling |
| Tool setting | Manual tool setting |
| Dust prevention | Three-axis dust prevention |
| Blank speed | 0-15m/min |
| Working speed | 0-10m/min |
| Working accuracy | ≤±0.1mm |
| Dimensions | 1080*1090*1750 |
| Packing size | 1200*1200*2000 |
Application of Small CNC Router
Applied Industries
Metal molds, bronze, embossed mold, wooden mold, three-dimensional model making, and jewellery industry.
Applied Materials
Various types of mold and model processing on man-made stone, copper, aluminum, iron, plastic, and wood.
Best CNC Router for Small Business

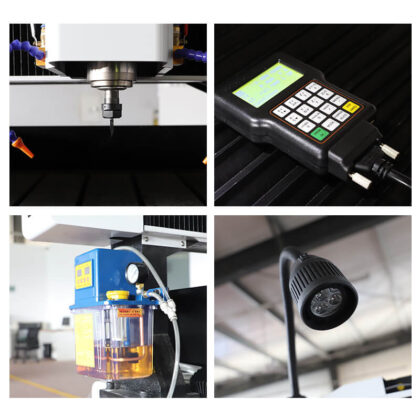

• The X, Y, and Z axes use linear guides (Taiwan TBI ball screw drive), which have high precision, stable performance, and strong load-bearing capacity.
• The high-power spindle is used, which is a good choice when processing small molds and the machining center is not good at it.
• The high-subdivision drive is used, which has fast speed and high precision.
• The worktable moving structure is cast iron, with strong stability and great support.
• Compatible with a variety of CAD/CAM software, such as Type3, ArtCAM, and Wentai.
• The CNC controller is simple and convenient to operate, allowing users to quickly become familiar with the operation of the machine.

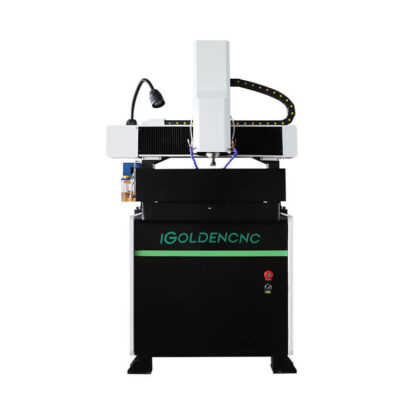

Mini CNC Router Machine
• CE certification.
• Working area:600*600*200mm.
• 2.2kw water-cooling spindle.
• 20 Hiwin Rails.
• Taiwan TBI ballscrew.
• Leadshine Stepper motor.
• Leadshine driver.
• Fuling inverter.
• DSP controller.
• Tool sensor (Auto tool zero calibration for Z axis).
• Cast iron structure.
• All the necessary parts for machine use (different size collets).
Small CNC Milling Machine FAQ
A small CNC milling machine uses computer numerical control to automate the movement of a cutting tool (end mill) along multiple axes (typically X, Y, and Z). These machines are smaller in size compared to industrial CNC mills but still offer high precision and versatility for a variety of materials.
- Work Area Size: Ensure the machine can handle your project sizes.
- Material Compatibility: Check if the machine can mill the materials you plan to work with.
- Spindle Power: Higher power allows for faster milling and harder materials.
- Software Compatibility: Look for machines compatible with CAD/CAM software like Fusion 360, Vectric, or Carbide Create.
- Build Quality: Choose a machine with a sturdy frame and durable components.
- Budget: Balance your budget with the features and quality you need.
- Support and Warranty: Check for good customer support and warranty options.
- Frame: The rigid structure that supports the machine and ensures stability.
- Spindle: The rotating cutting tool that mills the material.
- Stepper Motors: Control the movement of the spindle along the X, Y, and Z axes.
- Control System: Includes a control board and software to interpret design files and control the machine.
- Work Bed: The surface where the material is placed and secured for milling.
- Cooling System: May include air or liquid cooling to prevent overheating during operation.
Conclusion
A small CNC milling machine is an excellent tool for hobbyists, small businesses, and educational institutions that require precision milling in a compact and affordable package. When choosing a machine, consider factors like work area size, material compatibility, and software features to find the best fit for your needs. With the right machine, you can unlock endless possibilities for creativity and production.
