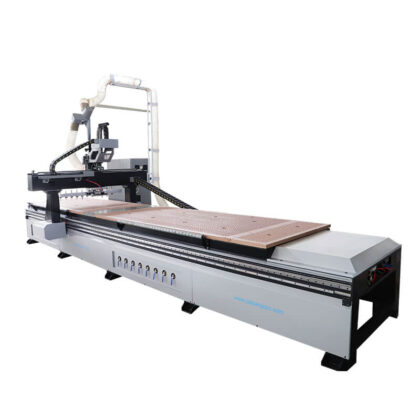

CNC Router ATC Machine

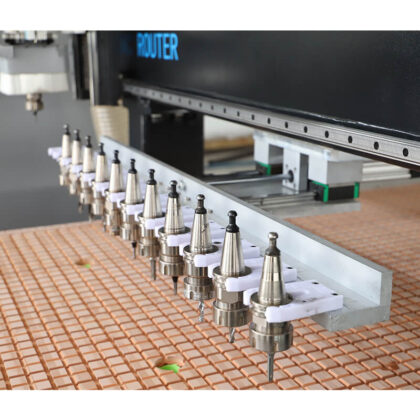

Linear ATC Tool Magazine

Cabinet Furniture Industry Wood CNC Nesting Machine

Item No.:Wood CNC Nesting Machine

The best wood CNC nesting machine are fast, can use many types of drills for fine details, and can cut on the X, Y, and Z axes. Equipped with a pushing device, this machine can automatically pushes the plate off the processing table, which is convenient for the operator to take the material. With the double-station equipment and uninterrupted processing, which can greatly saving time and realize maximum productivity.

Get Latest Price:

Description

CNC cabinet making machines have revolutionized the woodworking industry by offering increased precision, efficiency, and customization capabilities. They are widely used in both commercial cabinet production and custom woodworking businesses.

This cnc machines for cabinet making can automatically pushes the plate off the processing table, which is convenient for the operator to take the material. With the double-station equipment and uninterrupted processing, which can greatly saving time and realize maximum productivity.

Cabinet making machine is a kind of automation equipment, mainly used to produce and process common panel cabinets, cabinets, tatami mats and office furniture.

It can also be applied to advertising carving, mold milling, musical instrument carving and crafts. Its main working principle: The precision electric spindle drives the tool to rotate at high speed to complete drilling, cutting, engraving and other processes.

 CNC Nesting Machine Parameter

Model iGC-4AP-1325
Machine stroke 1300*2500*200mm*2 stations
File format G code
Workbench structure Class A hard special vacuum adsorption table
Working voltage 380V/50HZ
Bed Heavy-duty stable bed, CNC gantry milling
Spindle  HQD 6KW air-cooled tool change spindles*2, 4.5KW tool change spindle*2
Drive system Japanese / Taiwan  server motor drive
Control system Taiwan LNC system + wireless handwheel
Rack Taiwan high precision helical rack
Guide rail Taiwan HIWIN square rail
Lead screw Taiwan TBI lead screw
Electrical components Schneider, France/ Omron, Japan
Inverter Fuling
Cabinet Independent large computer cabinet
Dust collection system Floating dust collection + central dust collection structure
Lubrication system Electric motor oil pump microcomputer centralized lubrication control, regular and quantitative lubrication

Best Cnc Machines For Cabinet Making Details


Application Industry Of Best Cnc Machines For Cabinet Making :

Automatic loading and unloading cnc router  for cutting cabinet furniture

Wooden door, cabinet, panel fumiture, closet, etc. Suitable for standard or bespoke production.

Main Function of CNC Router Cabinets Machine:

 Automatic tool change, Cutting, Milling, Hollowing, Slotting, Drilling, etc.


iGOLDENCNC, Your best choice

Becoming a customer of iGOLDENCNC, we will cooperate with you on the basis of complete trust and comfort. You will find that we are a reputable supplier and worth your trust. We understand that every customer is valuable, and we will cherish every opportunity to cooperate!

Strict Quality Control System

Advanced testing equipment are used, such as: dynamic balance tester, CNC high precision machining machine, 3D measuring machine; iGOLDENCNC has established a complete and strict quality control system, including 48-hour running test and 72-hour aging test, to ensure the excellent quality of our machines.

FAQ

The working path is automatically generated by the CAD/CAM software of the CNC wood cutting machine. Through the intelligent design software(Cabinet Version, Haixun, etc. ) to split single 3D modeling, it can realize the real effect of map rendering. The customized furniture’s shape and size will be seen clearly at a glance. After the automatic assembly generated a single panel report and hardware statements and outputs all sheet drawing formats (DXF format drawing is a common format, it can be open in all the CNC router operation software), each piece of wood plate holes, slots are automatically generated. Through the optimization by the automatic layout software to optimize the layout and generate the processing path —NC program, to maximize the use of the raw materials. It can completely mass production of customized furniture, semi-finished products processing can be clearly distinguished, not easy to confuse for the worker. The convey belt uploading table has two laser radiation sensors, when the workpiece arrives at the sensor, the conveyance will stop automatically. When the worker takes off the workpieces from the table, the convey continues to run until the sensor detects the next workpieces. The CNC wood cutting machine also can reduce labor, improve the utilization of raw materials, greatly reduce production costs.

Many customers have used traditional CNC wood routers before using nesting CNC machines. Previously, they were mainly used to cut special shapes or make some hollow lattices, cabinet door milling and other processes. From the functional principle to the appearance of the machine, the CNC wood router is similar to the nesting CNC machine, but in fact the main function of the CNC wood router is for carving, and the main function of the nesting CNC machine is for cutting.

1. Although the ordinary CNC wood router can open materials, its bed structure and mechanical parts determine that it cannot be used for long-term cutting work, otherwise it will cause bed deformation and lower and lower mechanical accuracy;

2. Machine configuration: CNC wood routers generally use stepping motors and ordinary Weihong systems. The nesting CNC machine generally adopts Japanese Yaskawa or Taiwan Delta high-speed servo drive system, and Taiwan’s new generation control system, so the cost difference is very large.

3. The control system used is different. The nesting CNC machine can cooperate with many design and layout optimization cutting software, which can greatly improve the utilization rate of the plate, and the software can automatically split the order and automatically open the material. The operation is simple and the production can be achieved. This is ordinary Unmatched by CNC wood router;

4. The bed structure and accessories used by the cutting machine are much higher than that of the CNC wood router, which can adapt to the long-time cutting work, and the speed is very fast;

5. Save labor. The excellent nesting CNC machine can cooperate with automatic feeding, unloading, automatic labeling and other automation systems to truly realize automatic production, and one person can complete the operation;

6. The dust collection function of the cutting machine is much stronger than that of the engraving machine, and the dust removal effect is better;

7. The cutting machine is a numerical control device with more detection and fault tolerance mechanisms, and is simple to operate. Ordinary workers can complete the operation after simple training.

The working path is automatically generated by the software. Through the intelligent design software to split single 3D modeling,it can realize the real effect of map rendering. Customized furniture shape and size at a glance. After the automatic assembly generated a single panel report and hardware statements, and outputs all sheet drawing format (DXF format drawings belonging to a common format, it can be open in all the CNC router software), each piece of plate holes, slots are automatically generated. Through the optimization by the automatic layout software to optimize the layout and generate the processing path (NC program), to maximize use of raw materials. It can completely mass production of customized furniture, semi-finished products processing can be clearly distinguished, not easy to confuse. It can reduce labor, improve the utilization of raw materials, greatly reduce production costs. In the convey belt uploading table, it has two laser radiation sensor, when the workpiece arrival to the sensor, the convey will stop automatically. When the worker take off the workpieces,the convey continue to run until the sensor detect next workpieces.
