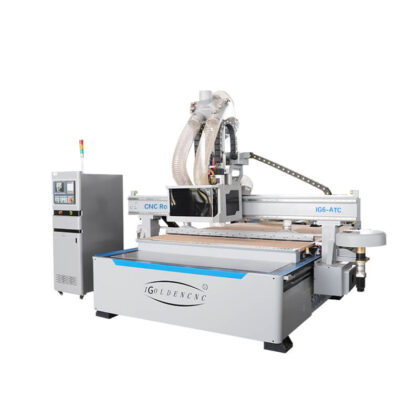

Wood panel cutting machine

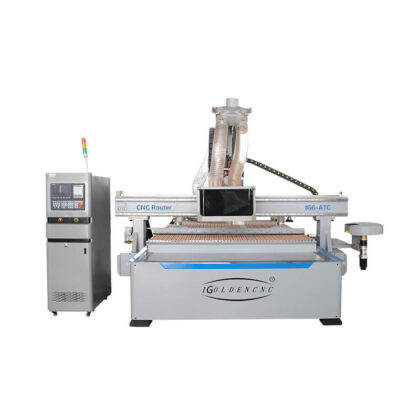

CNC Router Nesting for Furniture Production Line-01

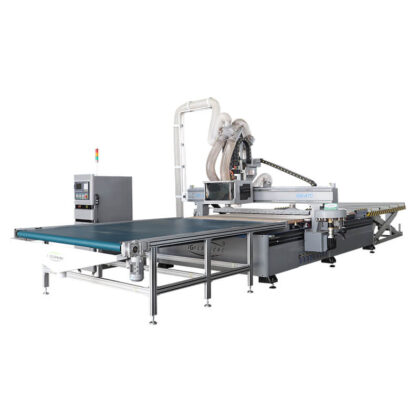

Wood panel cutting machine-03
automatic loading and unloading system -05

Auto tool changer CNC Router Nesting Machine

Item No.:Nesting CNC Router Machine-2128

Nesting CNC Machine is a Wooden Furniture production line, it includes loading equipment, auto-feeding equipment, Nesting CNC Router with auto tool changer, unloading equipment, it automatic the whole process of MDF prepare, feeding, fixing, cutting, carving and unloading; best choice for Wooden Furniture making.

If you need more detailed information, please inform us as soon as possible.

Get Latest Price:

Description

Nesting furniture CNC Router Machine is heavy duty circular type auto tool changing machine center with excellent configurations. Boring head and auto loading & unloading parts are optional. It can be used in furniture decoration industry, wood products processing, musical instrusments industry, artwork industry and electronic industry.

It is equipped with the Automatic loading & Unloading system, which can greatly improve your work efficiency. As a CNC wood working machine, it can be used to process CNC Plywood, wood etc. At the same time you can also use it as c and c Cabinets machine. If you are interested in this machine, please contact us immediately.


Nesting CNC Router Machine Details


Nesting Machine  Advantages

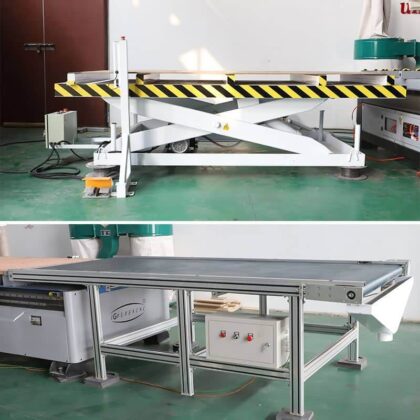

Automatic Loading&Unloading System Of CNC Wood Cutting Machine

The most notable feature of this CNC Woodworking machine is its automatic loading and unloading system. This system has a conveyor platform and a rear scissor lift which supports and raises the stack of material to the machine’s vacuum bed height, which is monitored with optical eye-sensing stack material height and machine bed surface. Through this system, you can not only reduce the employment cost of workers but also improve your work efficiency.

9KW Spindle And Servo Motor Of CNC Woodworking Machine

This CNC wood cutting machine is equipped with a 9kw high frequency automatic tool changer spindle.This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum In terms of hood. Power, we chose Japan Yaskawa Servo Motor and Drivers, which has high precision, stable operation and less maintenance. So the machine can process CNC Plywood, wood and other materials.

Vacuum Adsorption Function Of CNC Wood Cutting Machine

This CNC word cutting machine has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported. This table has multiple working areas, so you can Perform sub-regional cutting. At the same time, the machine also has CNC Suction Cup Load System, which can easily load a sheet on to the bed surface, so as to keep the material in the best position during processing.


CNC Woodworking Machine Application

It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.

cnc-router-application-in-the-construction-3

Furniture Production Line

Furniture Banding Edge

Woodworking industry

CNC Woodworking industry

Wooden Door Processing

CNC Woodworking Router-6

Furniture Making

nesting CNC machine Application_21

Wooden Furniture Processing

1325 Wood Cutting Machine

Cabinet Door Processing

1325 Wood Cutting Machine

Wooden Crafts Relief

1325 Wood Cutting Machine

Acrylic Cutting

iGOLDENCNC, Your best choice

Becoming a customer of iGOLDENCNC, we will cooperate with you on the basis of complete trust and comfort. You will find that we are a reputable supplier and worth your trust. We understand that every customer is valuable, and we will cherish every opportunity to cooperate!

Strict Quality Control System

Advanced testing equipment are used, such as: dynamic balance tester, CNC high precision machining machine, 3D measuring machine; iGOLDENCNC has established a complete and strict quality control system, including 48-hour running test and 72-hour aging test, to ensure the excellent quality of our machines.

FAQ

Actually, the CNC nesting machine cost is affected by many factors, such as the nesting machine configurations, faxes, shipping cost, packing cost, etc. Therefore, the nesting CNC machine price has very big differences. The following CNC nesting machine price quotation is just for reference. In general, the nesting machine cost ranges from $12,000 to $50,000. Except these, iGOLDENCNC also provide custom service for customers. So you can design the cheapest best nesting CNC machine as you want.

Nesting CNC machine is a type of panel furniture production line, which is a smart CNC solution for customized furniture production like panel furniture making, cabinet door making, closet door making, home door making, wardrobe making, home decoration making, cabinets making, home furniture making, shop and office furniture making. In the production process, the operator just as porters, the Intelligent CNC nesting machines can realize automatic paste barcode, automatic feeding, drilling, slotting, cutting, automatic uploading, automatic retrieval processes for cutting side hole, slot on the back, back hole, the whole process don’t need human judgment, automatic processing, get rid of the dependence of woodworking professional and technical workers. A nesting CNC machine is also known as CNC nesting machine, CNC nesting machining center, nesting CNC router, panel furniture production line.

Besides, automatic feeding CNC nesting machine instead of the traditional push table saw or precision saw, to prevent the occurrence of work-related injuries, the health of employees is guaranteed.

Panel furniture production lines include automatic labeling row drilling and cutting center, customized cabinet and wardrobe smart hole machine, CNC six-sided drilling, CNC panel saw, cabinet intelligent connection, cabinet and wardrobe molded door line, multiple six-sided drilling and cutting machine connections, production process planning and design, solid wood assembly machining center.

Many customers have used traditional CNC wood routers before using nesting CNC machines. Previously, they were mainly used to cut special shapes or make some hollow lattices, cabinet door milling and other processes. From the functional principle to the appearance of the machine, the CNC wood router is similar to the nesting CNC machine, but in fact the main function of the CNC wood router is for carving, and the main function of the nesting CNC machine is for cutting.

1. Although the ordinary CNC wood router can open materials, its bed structure and mechanical parts determine that it cannot be used for long-term cutting work, otherwise it will cause bed deformation and lower and lower mechanical accuracy;

2. Machine configuration: CNC wood routers generally use stepping motors and ordinary Weihong systems. The nesting CNC machine generally adopts Japanese Yaskawa or Taiwan Delta high-speed servo drive system, and Taiwan’s new generation control system, so the cost difference is very large.

3. The control system used is different. The nesting CNC machine can cooperate with many design and layout optimization cutting software, which can greatly improve the utilization rate of the plate, and the software can automatically split the order and automatically open the material. The operation is simple and the production can be achieved. This is ordinary Unmatched by CNC wood router;

4. The bed structure and accessories used by the cutting machine are much higher than that of the CNC wood router, which can adapt to the long-time cutting work, and the speed is very fast;

5. Save labor. The excellent nesting CNC machine can cooperate with automatic feeding, unloading, automatic labeling and other automation systems to truly realize automatic production, and one person can complete the operation;

6. The dust collection function of the cutting machine is much stronger than that of the engraving machine, and the dust removal effect is better;

7. The cutting machine is a numerical control device with more detection and fault tolerance mechanisms, and is simple to operate. Ordinary workers can complete the operation after simple training.

The working path is automatically generated by the software. Through the intelligent design software to split single 3D modeling,it can realize the real effect of map rendering. Customized furniture shape and size at a glance. After the automatic assembly generated a single panel report and hardware statements, and outputs all sheet drawing format (DXF format drawings belonging to a common format, it can be open in all the CNC router software), each piece of plate holes, slots are automatically generated. Through the optimization by the automatic layout software to optimize the layout and generate the processing path (NC program), to maximize use of raw materials. It can completely mass production of customized furniture, semi-finished products processing can be clearly distinguished, not easy to confuse. It can reduce labor, improve the utilization of raw materials, greatly reduce production costs. In the convey belt uploading table, it has two laser radiation sensor, when the workpiece arrival to the sensor, the convey will stop automatically. When the worker take off the workpieces,the convey continue to run until the sensor detect next workpieces.
