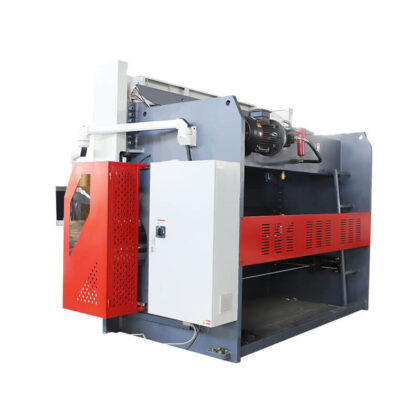

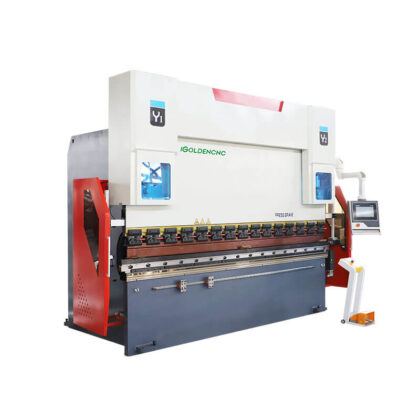

CNC Metal Bending Machine for Sale

Item No:: iGM-B

The bending machine is a kind of machine that can bend the metal sheet. The upper and lower molds of different shapes can be bent into various shapes. The slider stroke can be bent once on the sheet material, and the workpiece of more complex shape can be obtained after multiple bending.Widely used in automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries of plate bending processing.

Can be customized according to different sheet material different weights of the machine.

Price Range: $10000-$20000

Category: Metal Bending Machine

Get Latest Price:

Description

CNC Bending Machine for Metal Sheet Bending

A bending machine is a tool used to bend metal sheet into various shapes and angles without breaking or damaging the material. It utilizes computer numerical control (CNC) technology to precisely control the bending process. Oil-electric hybrid CNC bending machine is equipped with hydraulic and electric servo systems that exert pressure on the metal sheet, allowing it to be accurately bent into desired shapes and angles.

These machines apply force to the metal, either manually or through automation, to achieve the desired bend. Bending machines are commonly used in industries such as automotive, construction, shipbuilding, and metal fabrication.

bending machine_07

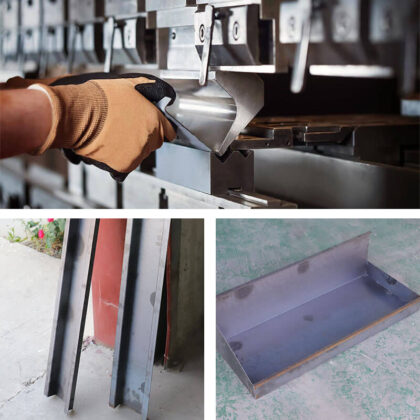

Metal bending is the manufacturing method utilized to shape the majority of enclosures, electrical boxes, brackets, and components using a machining device referred to as a CNC press brake. CNC metal bending machines offer high precision, repeatability, and efficiency in metal sheet bending operations. With their advanced technology, these numerical control bending system can handle a wide range of sheet metal materials and thicknesses, providing flexibility and versatility in the bending process.


Parameter of CNC Bending Machine

Model IG67K-250T/3200
Nominal Pressure 2500KN
Table length 3200mm
Controlling Axis 4+1(Y1、Y2、X、R +V)
Distance between columns 2570mm
Throat depth 400mm
Slide stroke 200mm
Max. opening height between table and slider 490mm


Back gauge X axis
Radius 10-500mm
Max. operating speed 300mm/s
Repeated positioning accuracy 0.02mm
Slider Y1/Y2 axis Radius 0-200mm
Repeated positioning accuracy 0.01mm

Slider running speed
Rapid descent 130mm/s
operation 10mm/s
Back 120mm/s
Main motor power 18.5KW
Voltage Three-phase 380V AC-+10%
Frequency 50HZ±1HZ
Ambient temperature -20— +50℃
Ambient humidity 20—85%(no condensation, no condensation)
level of protection IP40
Control system DE-15/DA-53T/CT8

aluminum bending machine​
metal bending machine​-4
cnc bending machine operator​-1
machines that bend metal​

Application of CNC Bending Machine:

CNC Bending Machine is widely used in the mechanical steel metal processing industry. It can bend steel plate materials of various thicknesses.

The products are widely used in cabinet processing, decoration, electrical lift surface wrapping, aviation, light industry, metallurgy, chemical industry, construction, shipping, automobile, electric power, electrical appliances, decoration, and other industries to provide the special machinery and complete equipment needed, and other steel metal or stainless board processing industry.



Key Features of Cnc Sheet Metal Bending Machines Include

  • Powerful CNC control system for precise control and supervision of bending and pressing.
  • Excellent back gauge adjustment to help meet your needs.
  • Consistent parallel and precise operation with a reliable crown system.
  • Best-in-class optical security without compromising performance or productivity.
  • Smart tool app for efficient inventory management and fast data entry
  • An Improved Tool Clamping System.
  • All products feature hybrid eco-functions to support the environment and be environmentally friendly.
  • Active angle control for better angle management and measurement.

Metal Bending Machine Main structural properties

The machine is mainly composed of frame, upper slide block, rear stopper system, guide rail assembly and synchronous control device, mold, hydraulic system, control system, mechanical compensation mechanism, etc.

Upper slider part:

The left and right cylinders are bolted to the frame, and the cylinder piston rod and the slide block are connected by spherical pad and anti-disc spring screw. The structure can improve the working state of the piston rod and the combined performance of the piston rod and the slide block when bearing off-load. The electro-hydraulic machine is equipped with a grating ruler with a measuring accuracy of 0.005mm on the C-shaped plate on both sides of the frame to detect and feedback the synchronous motion state of the two cylinders to control the stroke position of the slide block.

cnc bending machine operator​

Rear stop device:

Adopt the latest accurate and stable rear stop device, ball screw,linear guide rail, with fast speed, high positioning accuracy. After annealing process.To eliminate stress and deformation, ensure the accuracy and stability of the workpiece size, linear guide rail installation surface through fine milling, fine grinding, flatness is less than 0.03mm, to ensure the dimensional accuracy of the workpiece, the rear block die beam design is unique, coupled with the beam fine-tuning parallel technology.

Ensure that the parallelism between the beam and the center line of the slide is less than 0.1mm, which can effectively control the full length of the workpiece to ensure that the material is within 0.1mm. There is also a backstop function to avoid the interference of processing on the workpiece. The modular design controls the number of axes available from single axis X to multiple axes.

bending brake machine​

Click to show more.

Mechanical compensation device.

(electro-hydraulic machine standard, twisted shaft machine selection)In the process of bending the workpiece, the slider and the table exert pressure on the plate at the same time, the upper slider will inevitably produce bending deformation, so that the bending Angle of the workpiece is small at both ends andlarge in the middle, and is deformed by the reaction force of the plate, affecting the Angle of the workpiece and its straightness. The workpiece needs to be compensated.

The compensation mechanism is controlled by CNC numerical control system, whichmakes the lower table produce pre-convex to compensate the bending deformationof the upper slider, and controls the Angle change of the workpiece within thetolerance range to ensure the bending accuracy.

Bending dies and quick fixtures:

Randomly equipped with a set of standard upper and lower molds (concentric lower molds or square lower molds), the standard material is 42CrMo, hardness :HRC47° or so, the whole body quenching, durable.

Front supporting bracket:

This part is a standard part and is installed on the front of the workbench. When in use, the support bracket can be manually moved to the appropriate position according to the length of the workpiece. The support bracket can be adjusted in the horizontal and vertical directions.

Hydraulic system:

Adopt domestic or German imported assembly, integrated design, compact structure. Higher frequency response, lower failure rate and smoother machine operation.

Sealing element:

The main cylinder seal ring is made of Japan NoK original sealring, which has superior compaction performance, reliable operation, long life,strong extrusion ability for clearance, strong seal ring will not twist and turn, and has good anti-leakage performance, good wear resistance, and easy assembly.

Oil pump

Using German internal gear pump, high volumetric efficiency, low flowand pressure fluctuation, low noise, light weight. Wide viscosity range, good oilabsorption characteristics.

Hydraulic pipeline

Adopt high quality pipe joint to ensure no leakage of hydraulicpipeline, and adopt imported sleeve, strong pressure resistance.

Types of Bending Machines


Plate Bending Machines are designed to bend large metal plates into cylindrical or conical shapes. These machines use a series of rollers to bend the metal gradually.

Capabilities: Ideal for bending thick metal plates, including steel, aluminum, and copper. Applications: Used in industries like shipbuilding, construction, and heavy equipment manufacturing for creating large cylindrical structures like tanks and pipes.

Advantages: Ability to handle thick materials, smooth bending process, and high precision for large-scale projects.

Tube and Pipe Bending Machines are specialized machines used to bend metal tubes and pipes into specific shapes and angles. These machines can create bends without causing the material to collapse or wrinkle.

Capabilities: Suitable for bending various metals, including steel, aluminum, copper, and brass.

Applications: Commonly used in industries like automotive, plumbing, and construction for creating exhaust systems, handrails, and structural components.

Advantages: High precision, ability to create complex bends, and compatibility with CNC technology for automated bending.

Hydraulic Bending Machines use hydraulic pressure to apply force to the metal, allowing for smooth and controlled bending. These machines are commonly used for bending thick or heavy materials.

Capabilities: Ideal for bending thick metal plates, tubes, and bars.

Applications: Used in industries like construction, shipbuilding, and heavy equipment manufacturing for creating large, durable parts.

Advantages: High power, ability to handle thick materials, and smooth bending process.

CNC Bending Machines use computer-controlled systems to automate the bending process. These machines are highly precise and can handle complex bending tasks with minimal human intervention.

Capabilities: Suitable for bending a wide range of materials, including sheet metal, tubes, and bars.

Applications: Used in industries requiring high precision and repeatability, such as aerospace, electronics, and custom metal fabrication.

Advantages: High precision, automation, ability to handle complex bends, and consistent results.

Press Brake Bending Machines are among the most common types of bending machines used in metal fabrication. They use a punch and die system to bend metal sheets into precise angles.

Capabilities: Suitable for bending sheet metal, including steel, aluminum, and stainless steel.

Applications: Commonly used in industries like automotive, aerospace, and construction for creating parts like brackets, enclosures, and panels.

Advantages: High precision, ability to handle a wide range of materials, and compatibility with CNC technology for automated bending.


CNC sheet metal bending machine using steps

How to learn to use CNC sheet metal bending machine?

How to use CNC sheet metal bending machine? Regarding the introductory operation tutorial of CNC sheet metal bending machine, I believe that many users have seen many versions. There are detailed explanations in pictures and texts, as well as video operations. The content is very detailed, but people who read it may find that the content is too much. Standard and official, it is a bit difficult to understand. Therefore, many users want to watch some easy-to-understand tutorials, the following content we will share with you how to simply use the sheet metal bending machine, everyone will know at a glance.

Getting started tutorial on CNC sheet metal bending machine

First of all, before operating the CNC sheet metal bending machine, we need to understand the equipment components of the CNC sheet metal bending machine. Its overall structure is mainly divided into three parts: the bracket, the clamping plate and the working table. Indispensable, in the process of use, you must ensure that there are no problems with the three before you can continue to operate. The principle of use of the CNC sheet metal bending machine is that when the wire and the coil are energized, it will generate a gravitational force on the pressure plate. When the gravitational force is generated, the clamping between the pressure plate and the base can be realized, so as to realize the bending of the sheet. The specific operation The tutorial is as follows:

  1. Preparation for power-on

To use the CNC sheet metal bending machine, the first thing to do is to turn on the sheet metal bending machine first. We need to turn on the power switch on the control panel of the sheet metal bending machine, and then start the oil pump. If we hear the oil pump The sound of rotation means that there is no problem with the sheet metal bending machine. At this time, we don’t need to do any work and let the oil pump run idling for about 80s;

  1. Stroke adjustment test

In the second link, we need to test the machine and adjust the stroke. The specific operation is mainly to keep the thickness of a sheet when the upper mold goes down to the bottom position. This step is to ensure that the sheet metal bending machine can work normally. The important link that does not affect the life cycle of the sheet metal bending machine must not be ignored;

  1. Choose a slot

The thickness of the bending and the size of the notch are selected in this step. The program is set according to the actual standard. Within the industry standard, the size of the notch is determined by the thickness of the sheet. Normally, the thickness of the sheet is 8 times. The width of the socket size, for example, when bending a 3mm sheet, you need to choose a 24mm slot, the calculation is very simple;

  1. After adjusting the gauge

This step is mainly to confirm the position of the back gauge and the degree of standardization to ensure that it can work normally;

  1. Step on the switch to work

After the above preparations and testing work are completed, we can step on the switch to start sheet bending. It should be noted that the pedal of the sheet metal bending machine can be released at any time. The principle of releasing and stepping is to step on. Release and stop, it’s very simple.

The above is a very simple and practical CNC sheet metal bending machine introductory operation tutorial content to share with you, for those who need it for reference. Objectively speaking, because the sheet metal bending machine is a CNC operation, the product can be bent directly, and the appearance of the bent product is flawless and the quality is good. For the enterprise, it is not only as simple as improving the production quality, because the CNC sheet metal The bending machine also plays a huge role in improving the production efficiency of enterprises, which is reflected in the reduction of labor costs and shortening the production cycle of bending products. Finally, I would like to remind everyone: before and after using the sheet metal bending machine, the sheet metal bending machine needs to be inspected and maintained. This is also a very important part of the work. It can ensure and extend the CNC sheet metal bending machine. Use life cycle.
