CNC Wood Cutting And Drilling Machining Center
Item No.:CNC Drilling and Cutting Machining Center

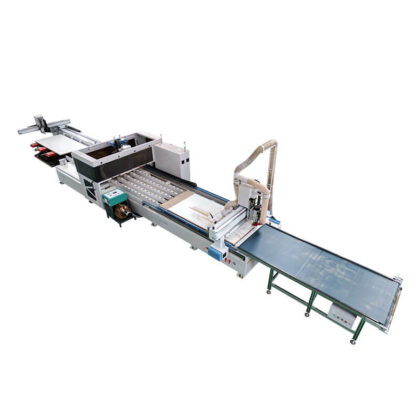

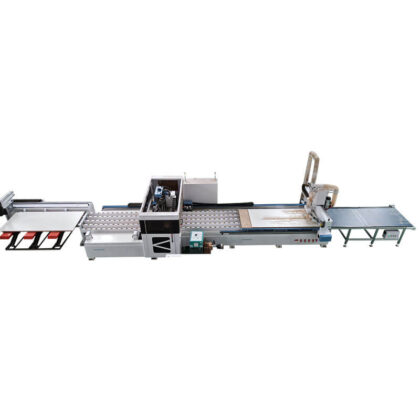

High-speed CNC drilling and cutting machining center is a set of drilling, grooving, cutting as one of the processing equipment, the machine is composed of automatic labeling machine, drilling area, cutting area three parts, only need to place the plate on the labeling platform, the machine can be automatic labeling, front and back drilling and grooving, cutting and other processing steps, can also be matched with edge sealing machine, The production process of panel furniture can be completed;
Description
Smart Wood CNC Cutting Drilling Machine
High-speed CNC drilling and cutting machining center is a set of drilling, grooving, cutting as one of the processing equipment, the machine is composed of automatic labeling machine, drilling area, cutting area three parts, only need to place the plate on the labeling platform, the machine can be automatic labeling, front and back drilling and grooving, cutting and other processing steps, can also be matched with edge sealing machine, The production process of panel furniture can be completed;
Equipment operation is simple, high efficiency, high precision, so that the production is more time saving, saving materials, saving labor, is the only choice for plate furniture enterprises.
Automatic Kitchen Cabinet Door Making Machine
Full automatic CNC router is mainly designed for customized furniture plans, such as kitchen cabinet and wardrobe, the whole production line only need one ordinary worker to operate.
1. Automatic Feeding
Suck the board to the next process automatically.
2. Automatic Labeling
The machine can show a barcode / order No. / board size information on each board. The label information can be customized according to your requirements.
3. Automatic CNC Machining
Cutting, milling, drilling and engraving automatically.
4. Automatic Discharge
After process, the boards are discharged automatically.
HQD tool change spindle
9KW spindle + large capacity tool library, can meet a variety of processes.
Automatic labeling
Replace manual labeling dependence, attach the label before processing, truly realize intelligence, save labor, save time, and effectively avoid manual labeling errors.
Automatic feed roller
The labeling is seamlessly connected to the drilling unit and self-transmitted, which is more efficient.

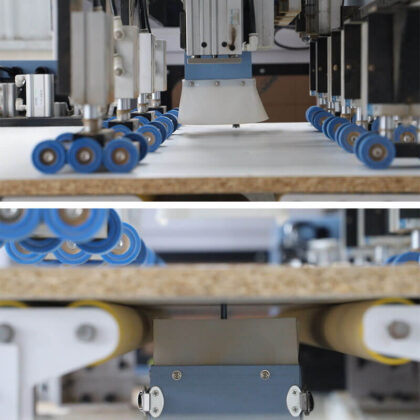

Double drill bag
Drill holes and grooves on both sides of the plate.
CNC Drilling and Cutting Machining Center Parameter
| Control system | Taiwan SYNTEC system |
| Servo | INOVANCE 1.5KW servo |
| Processing Mode | Automatic labeling + feeding + double-sided punching + high-speed cutting + pushing |
| Punch unit | Double drill work at the same time |
| Slotted unit | Slot both top and bottom |
| Label the material | Independent automatic induction rotary labeling + automatic feeding |
| Clamp forceps | Double independent clamp |
| Reducer | Japan SHIMPO |
| Guide rail | Taiwan HIWIN |
| Rack | High precision grinding rack |
| Drill bag | HQD high torque drill pack |
| Spindle | HQD high speed spindle |
| Inverter | Fuling |
| Magazine tool | 16 knife in-line knife library |
| Vacuum pump | 6.0KW variable-frequency vacuum pump |
| Dust collector | 7.5KW double vacuum cleaner |
| Blanking platform | Automatic sensing platform |
| Whole length | 14m |
| Total weight | 5T |
Applications of Full Automatic Flatbed CNC Router
1. Furniture Industries
Cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, tables and chairs.
2. Decoration Industries
Screens, wave boards, large-size wall hangings, advertising boards and sign making.
3. Arts & Crafts Industries
Achieveing effects of exquisite patterns and characters on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on.
4. Processing Material
Carving, milling and cutting for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.
Full Automatic Flatbed CNC Router Advanced Performance
① Automatic labeling: completely replace the dependence on manual labeling, paste the label well before processing, truly realize intelligence, save labor, save time, and effectively avoid manual labeling errors;
(2) Bed integrated design: double side drilling unit and cutting unit integrated design, the whole plate and then the double side drilling unit drilling, directly and automatically transported to the cutting unit, higher accuracy; More efficient;
③ Reduce the production process: the plate drilling is completed in the opening drilling machine and the edge banding machine, the drilling link does not need manual intervention, eliminating the traditional edge banding and then manually get the drilling link on the six sides of the drill;
④ Improve production efficiency: the upper and lower drilling of the whole plate is faster and more efficient than the piece-by-piece processing of the smaller allegro;
⑤ Reduce the damage of the plate in the production process: while building the production process, it reduces the transmission and handling of the plate in the production process, effectively reducing the damage of the plate;
High degree of automation: compared with the traditional stand-alone equipment, the manual only needs to pick up the board and turn to the edge banding machine, which greatly improves the degree of automation in the production process;
Low failure rate, easy to operate: compared with traditional automated production lines, easier to operate, lower failure rate;
iGOLDENCNC, Your best choice
Becoming a customer of iGOLDENCNC, we will cooperate with you on the basis of complete trust and comfort. You will find that we are a reputable supplier and worth your trust. We understand that every customer is valuable, and we will cherish every opportunity to cooperate!
Strict Quality Control System
Advanced testing equipment are used, such as: dynamic balance tester, CNC high precision machining machine, 3D measuring machine; iGOLDENCNC has established a complete and strict quality control system, including 48-hour running test and 72-hour aging test, to ensure the excellent quality of our machines.
