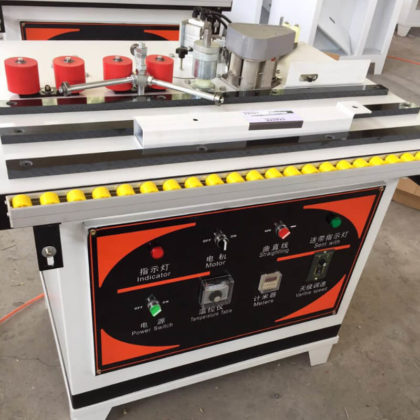

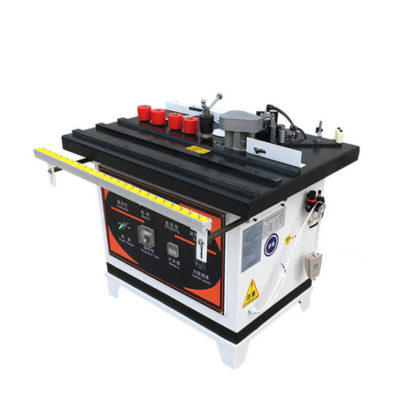

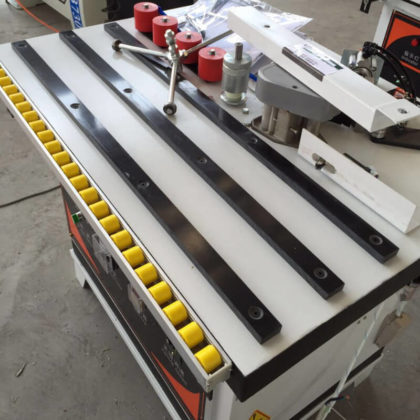

Curved and straight automatic edge banding machine

Item No.: iGC-CL

The manual edge banding machine adopts automatic control and has a large edge banding operation range, which can ensure that the hot melt adhesive is not glued or leaking. It is suitable for straight curve edge banding of various plates, with small size and light weight. The function surpasses ordinary imported linear edge banding machines, and is one of the first edge banding machines to enter the Chinese market. Suitable for all furniture, cabinets, teaching aid factories, etc.

Category: Furniture Making Machine>>Cabinet Maker
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $680-$950

Get Latest Price:


Who is it for?

A multi-function CNC edge banding machine designed by iGOLDENCNC, which is matched with board furniture machining center and six-sided drilling machine. It is very suitable for panel furniture edge banding, realizes automatic and intelligent production, and provides a set of competitive configurations.

Widely used in non-metal numerical control processing fields such as panel furniture, custom cabinets, solid wood furniture, etc. It is suitable for panel workpieces such as solid wood panels, fiberboard, particleboard Straight edge banding. The edge banding material can be solid wood strip, PVC, melamine, thin veneer, etc.

What makes it unique?

This edge banding machine is very popular in wardrobe factories, cabinet factories, and office furniture factories. It improves the efficiency of wood edge banding and is specially designed to improve the edge banding efficiency of wooden boards.

>Compact structure, reasonable layout, high efficiency and environmental protection;
>Automatic control, multi-function linear hemming;
>Heavy industry quality, stable operation for 10 years;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.

Applications of CNC Edge Banding Machine

Thin Veneer Banding

Solid Wood Strip Banding

Solid Wood Banding

PVC Material Banding

MDF Panel Banding

Particle Board Banding

Fiber Board Banding

PVC Banding

Gluing method double-sided glue
Sheet Thickness 10-60mm
Minimum diameter 18mm
Banding Belt Thickness 0.3-3mm
Banding Belt Width 7-50mm
Conveying Speed 0-18m/min
Input Voltage 220V
Input Frequency 50Hz
Motor power 250W
Function temperature 130-180℃
Heating power 1600kw
Dimensions 1050*760*950mm
N.W 130kg

Features of CNC Edge Banding Machine

Edge Banding Machine

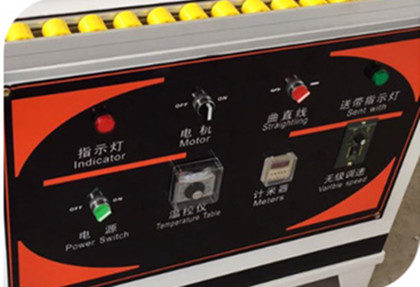

Automatic temperature control

The temperature controller can automatically control the temperature according to the sol temperature required by the edge banding tape and the hot melt adhesive.

Glue pan

Large-capacity glue pot, selected high-temperature resistant materials, preheated in 3 minutes, to increase the heat conversion speed.

Smart foot switch

Intelligent single foot switch prevents accidental cut off during operation.

Operation table

The table top is taller and larger, ergonomic, and more comfortable to use.

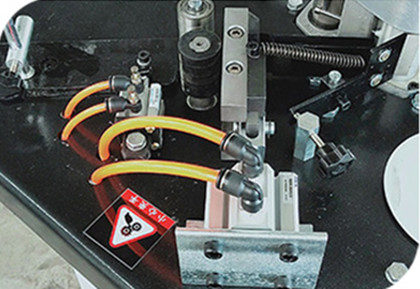

Double cylinder automatic tape feeding/cutting

Accurate and agile, high-quality cylinder, long service life.

Working Process of Automatic CNC Edge Banding Machine

1- Pre-heating

Solve the problem that the edge banding adhesive and the edge banding material are not compact enough due to the humid or low temperature environment, which will cause the edge band to rise and fall off in the later stage.

2- Glue Coating

The solid glue melts when the glue pot is heated, and the glue is sent by the spiral structure, so that the plate is evenly glued.

3- Head Regulate

Composed of front-to-back and back-to-back, controlled by solenoid valve, adding the head-to-head collision protection function, cut off by the specially-designed placard, to enhance the stability of the head.

4- Rough Trimming

The rough repair knife is a 15 ° flat knife, leaving a margin of 40-50 wires for the finish repair. It uses the automatic tracking of the mold and high-frequency high-speed motor to achieve fast cutting, and the r2 oblique repair knife repairs the arc.

5- Fine Trimming

The rough repair knife is a 15 ° flat knife, leaving a margin of 40-50 wires for the finish repair. It uses the automatic tracking of the mold and high-frequency high-speed motor to achieve fast cutting, and the r2 oblique repair knife repairs the arc.

6- Corner Trimming

Through the feeding, cutting, and pasting, and the steel body pressure roller presses the edge sealing belt and the plate, so that the adhesion is stronger, and there is no glue mark on the surface of the plate.

7- Scraping

Eliminate the wavy traces caused by the non-linear motion of the trimming process, so that the upper and lower parts of the board are smoother and cleaner, and the arc size is adjusted to make the edge sealing effect more perfect.

8- Polishing

Clean the processed plate with a cotton polishing cloth wheel to remove excess glue stains and make the edge sealing end surface smoother and cleaner.

Options of CNC Edge Banding Machine

PVC Automatic Edge Banding Machine

Customized Model

If there are special processing procedures, additional equipment can be added, such as:

Edge banding transfer machine (edge banding + transfer);

Edge banding transfer slotting machine (edge banding + transfer + slotting);

Pre-milling Automatic edge banding, transfer and slotting machine (pre-milling + edge banding + transfer + slotting).

Are you mainly engaged in panel furniture business? For edge banding machine, the price is different according to the function and configuration. If you are mainly used for the cabinet, we can recommend you to consider the full-automatic double trimming edge banding machine. Do you know all the functions of edge banding machine?

The plate drives the profiling wheel to follow the shape of the workpiece through the driving mechanism to polish and trim it into an R arc to improve the aesthetic effect, and also make the edge banding belt closely fit the workpiece, ensure the quality of the final edge.

Our edge banding machine is made in Guangdong Province. We mainly make numerical control equipment. In order to make customers more worry free in training and after-sales, therefore, we can purchase the edge banding machine for you, and also guarantee to maintain the reputation and quality of our company. It will be more cautious and serious for us to choose the manufacturer of edge banding machine. Brand companies can be trusted.
