3 Axis ATC CNC Router

2022 New Industrial Wood CNC Router Machine with Linear Automatic Tool Changer

Wood CNC Router Machine is a type of professional industrial wood CNC router machine with automatic tool changer for woodworking projects and plans.

3 Axis ATC CNC RouterATC wood CNC router machine is a type of heavy-duty and multi-purpose CNC woodworking machine with automatic tool changer for carving, milling, drilling, grooving, and cutting from IGOLDENCNC. It has the industrial features of high precision, high speed, constant torque, low runout, strong stability and long life. It is suitable for wood, acrylic, aluminum, copper, aluminum-plastic panels, plastics, and carbon fiber composite materials.

3 Axis ATC CNC Router

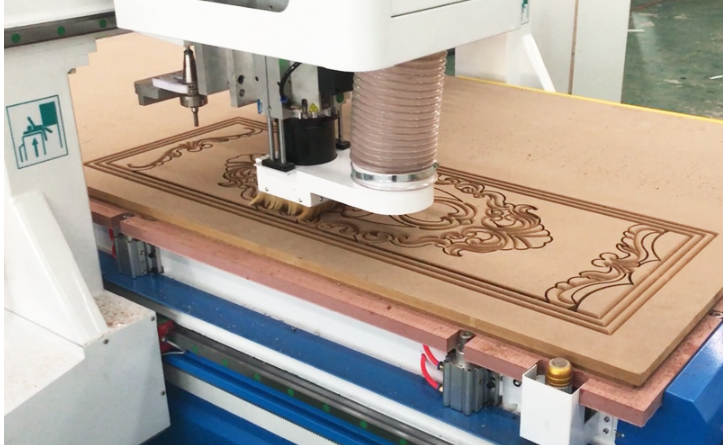

ATC CNC wood router machine is a high-end CNC woodworking machining center, also known as a CNC cutting machine. The tool magazine is located under the crossbeam. Eight different tools can be placed and the tool change speed is fast. Proficient in cutting, carving, drilling, and everything, it is a good helper for making furniture, and it can also be equipped with automatic loading and unloading and automatic labeling, which greatly improves the manufacturing efficiency.

CNC Wood Router for Furniture Making

Industrial wood CNC machine adopts T-type bed structure design and gantry movement mode. The bed adopts industrial welding technology, and is processed by high-precision 5-axis gantry milling after stress relief quenching to ensure the rigidity and geometric accuracy of the machine tool.

ATC CNC router machine adopts grid phenolic resin vacuum adsorption to fix the worktable. The advantage of the vacuum adsorption table is that even if it is an irregular plate, it can still be tightly fixed on the table of the CNC machine. During the routing process, vibration will not affect the routing effect. Obviously, the table with vacuum adsorption will be to a certain extent. Improve the accuracy of routing, especially for thinner, lighter or irregular plates. After this type of fixture is fixed, it may still cause small displacements due to machine vibration during the routing process, which affects the accuracy of routing, and the vacuum adsorption table is very A good solution to this problem.

The Feature of the Wood CNC Router

The X and Y axes use high-precision racks, and the Z-axis uses high-precision grinding grade ball screws, which have the features of high precision, reversibility and high efficiency.

X, Y, Z axis adopt high-precision self-lubricating linear rail. Grinding grade high-precision linear slide. High positioning accuracy, good reproducibility; Low friction resistance, can maintain accuracy for a long time; Can withstand high load capacity in four directions; With automatic centering ability, walking parallel accuracy ≤18um; Self-lubricating, low noise.

CNC router table adopts 9.0KW high frequency ATC tool change spindle. It has the features of high speed and quietness; It adopts special spindle for mold making, which has the features of high precision and low runout; Constant function and constant torque are suitable for high-speed cutting and milling cutting industry.
