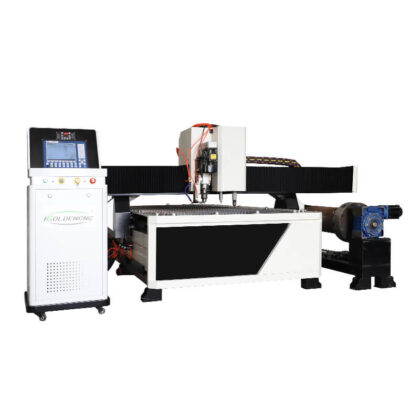

cnc plasma cutters for sale

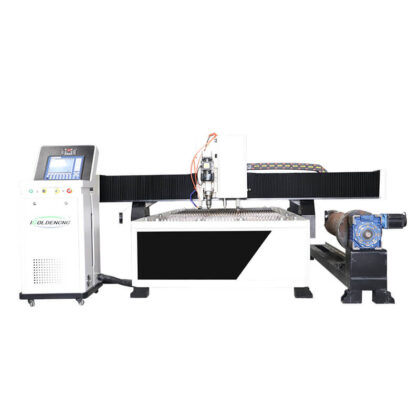

cnc plasma table
cnc plasma cutting table for sale

1325 CNC Plasma Cutter With Drilling and Marking Head

CNC table plasma cutting machine is an multi-purpose machine. It is very easy to deal with multi-processing needs! CNC plasma cutting machine can marking metal and oxy-fuel cutting!CNC marking machine is able to achieve high quality CNC marking function for hard materials to draw lines marking. Compare with the laser,the cost,marking format,process control,and marking depth of IGP-1325 CNC table plasma cutting machine has a distinct advantage.Marking depth adjustable functions to draw lines, the greater the pressure,the depper draw lines.

Category: CNC Plasma Cutting Machine >> CNC Plasma Tables
Response time: within 1 hour
Supply capacity: 300 sets/month
Price range: $5200-$17500

Get Latest Price:

Description

CNC plasma cutter -Model iGP1325-4A

The table plasma cutting machine is the most commonly used model, most of the customers buy this type of machine. The conventional models are 1325 and 1530. The customer can add a gas torch or bit on the basis of the plasma cutting, which is used for gas cutting or drilling.

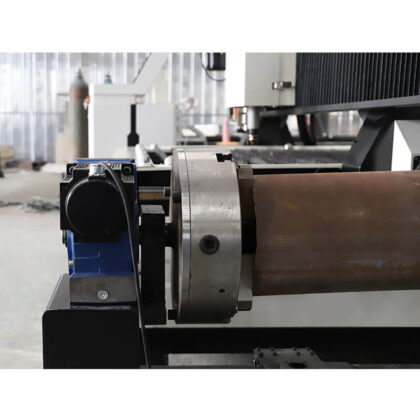

The plasma cutting machine can also be used to cut round pipe or square tube, after adding a rotating shaft. The customer only needs to tell us the length, thickness and diameter of the pipe that you want.

A CNC plasma sheet metal cutting machine uses a plasma cutter to cut thin to thick metals along a multi-axis grid. The CNC method provides an advantage over handheld plasma cutting tools due to the cut being programmed and controlled by a computer instead of human motion.

plasma cutter for cnc

CNC plasma cutting machine details

cnc plasma cut signs
plasma cnc cutting machine

CNC Plasma Cutter Features:

1.Complete steel pipe processing tasks, one machine with dual-use, speed up cost recovery. cutting round and square tubes but also meet the special-shaped processing of steel plates.

2.cnc plasma cutting machine is a multi function machine, which include the drilling, marking, cutting, and rotary device cutting.



3. Plasma power and cutting gun with high quality,made by famous factories in China,

4. Cutting mouth,little and tidy and avoid second trimming.

5. Applied for metal sheet aluminum sleet,stainless sheet,Titanium sheet and so on.

6. High cutting speed,high precision,and low cost.

7. Plasma power,the plasma power can be adjusted.

8. Plasma source adopts advanced integrated module control system,it ensures the high precision and stability.


CNC Plasma Cutter Application

INDUSTRIES:

CNC Plasma Cutters are also used in many workshops to create decorative metalwork. For instance, commercial and residential signage, wall art, address signs, and outdoor garden art.

MATERIAL:

  • Mild steel
  • Stainless steel
  • Carbon and alloy steels
  • Aluminum and its alloys
  • Copper
  • Bronzes and brass Models
  • Pewter, Lead, Tin lead and alloys
  • Titanium alloys
  • Bimonic alloys
  • Hard faced Materials, clad sheets
  • Cast Iron and Steel

Marking depth adjustable functions to draw lines, the greater the pressure,the depper draw lines.


CNC Plasma Tables Parameter

Model IGP-1325
Working area 1300x2500mm
Torch height controller with
Working table Saw tooth table
Plasma power supply Hypertherm 125A
Cooling system Air cooling
Control system F2300A control system
Flies transfer USB interface
Transmission X,Y-helical rack pinion, Z ball screw
Guide rail Taiwan Hiwin guide rail
Drive system Japan servo motor and drivers
Arc Untouched Arc Striking
Traveling speed 0-40000mm/min
Working speed According to the cutting thickness
Working voltage Single phase 220V and 3 phase 380V/50HZ
Software Fastcam
Rotary axis With
Drilling head With
Marking head With

It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.


Plasma Table Metal Cutting Machine Advantage

CNC plasma machine uses a plasma cutter to cut thin to thick metals along a multi-axis grid. The CNC method provides an advantage over handheld plasma cutting tools due to the cut being programmed and controlled by a computer instead of human motion. CNC plasma is where high speed and precision meet low cost – among a vast array of additional benefits. Plasma cutting is a high-tech cutting method that uses an ionised, focused jet of gas to slice through thin sheet metal. An internal, high-voltage electrode in the cutter rapidly heats a compound gas mixture to over 20,000 centigrade when switched on.

Shielding gas is used as a propellant and barrier to focus and move the induced plasma from the ionisation chamber. The ionised, superheated, concentrated beam of plasma then melts and blasts any metal it touches. A clean, sealed cut is made each time.


FQA

Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine
.

Plasma CNC cutter is a process that cuts through the electrically conductive material with the help of hot plasma. Plasma cutting machines use a high-velocity jet of ionized gas that is delivered from the orifice. Plasma conducts electricity from the torch of the plasma cutter to the workpiece and heats the object, thereby melting the material. The high-velocity stream of ionized gas mechanically blows the molten metal away, splitting the materials. In the simplest term, plasma machine can be used in various types of conductive metals such as mild steel, aluminum, and stainless. The milder is the consistency of the steel; the operator can experience thicker as well as faster cuts.

  1. Desktop CNC plasma cutting machine is a high-efficiency, high-precision and high-reliability cutting equipment integrating precision mechanical transmission and thermal cutting technology. The good man-machine interface makes the operation more convenient and simple, and can quickly and accurately cut various complex shapes of plates, especially suitable for automatic cutting and blanking of medium and thin non-ferrous metal plates, stainless steel and carbon steel plates. It adopts integrated modular design, which is quick to install and easy to move.
  2. The whole bed is of steel structure. After welding and finishing, the whole is tempered, which can fully eliminate welding stress and has stable and reliable performance. The beams and end beams are made of cast aluminum after finishing, and the movement performance is good. Longitudinal use of bilateral synchronous drive system. Guarantee the speed and accuracy of the whole machine.
  3. The vertical and horizontal guide rail adopts domestic or imported linear guide rail, which has high precision and good guiding. The transmission racks and gears are customized by professional manufacturers, surface carburized and quenched, with high precision.
  4. Equipped with LCD screen, all Chinese characters are displayed. The bottom of the display screen prompts various operation methods at any time, and the operator can perform various operations with simple training, which is very clear and convenient to use.
  5. The drive system is servo drive or stepper drive, and the world’s top products can be selected according to user needs – AC servo drive or stepper motor drive imported from Japan’s Panasonic, the whole machine runs more smoothly, the speed regulation range is wider, and the acceleration time is short;
  6. This machine has a unique dust removal device, suction cutting table and slag storage device to create a good working environment.
  7. Equipped with an arc voltage height adjustment controller with high response sensitivity, which can automatically adjust and select the best cutting distance to ensure precise cutting of the workpiece.
  8. A variety of plasma power sources can be selected according to user requirements to meet the cutting of different metal materials.

A plasma cutters tables for sale is capable of cutting thick metal sheets in any shape and size. This computer-controlled machine gives instructions through a computer over the manual handheld plasma cutter. It is compatible with optional CNC parts and improves the accuracy, flexibility, and productivity. When you purchase this plasma cutting machine, you will receive plasma cutting software that needs to be installed before operating the machine.


OMNI CNC plasma cutting machine is compatible with optional CNC parts to customize your CNC plasma cutter machine and improve accuracy, flexibility, productivity. Contact iGOLDENCNC sales engineer to find out which optional configuration could meet your demand.
