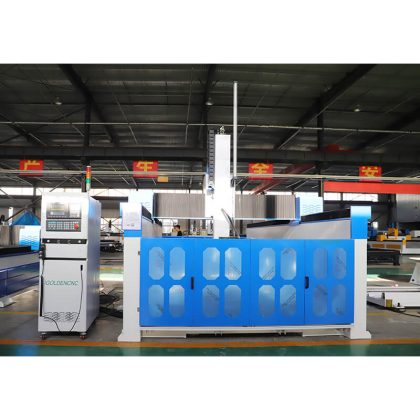

4 Axis CNC Machining Center for Polystyrene EPS Aluminum Wood
Item No.: iGW-MC-1337

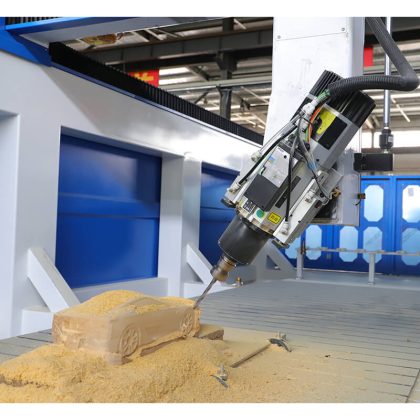

The iGOLDENCNC 4-axis CNC machining center is designed for multi-surface machining, complex contouring, and 3D shaping across materials like wood, MDF, foam, aluminum, and composites. It combines high-speed spindles with a rotary axis (A-axis), enabling simultaneous 4-axis machining or indexing depending on the model.
Category: CNC Router >>CNC Foam Router
Price Range: $17000-$19000
Description
CNC Machining Center
A CNC machining center is an advanced version of a CNC milling machine that features automated tool changing (ATC) and multi-axis capabilities.It’s designed for continuous production of precision parts in metal, wood, plastic, or composites.
It enables the machine to cut, engrave, drill, and contour multiple sides of a component without manual repositioning. The result is improved accuracy, reduced setup time, and smoother surface finishes.
These machines are widely used across industries — from aerospace and automotive to furniture manufacturing and mold making. For example, in woodworking, a 4-axis CNC can carve intricate 3D shapes or turn cylindrical columns automatically. In metalworking, it can machine engine components, turbine blades, or complex fixtures with minimal human intervention.
Application of CNC Machining Center
Our machines support industries such as woodworking, foam modeling, and signage, making them ideal for both small studios and industrial-scale applications. Leveraging advanced technology and rigorous testing, we guarantee dependable operation and long service life.
While optimized for polystyrene, these machining centers often process other foam types including polyurethane foam, EVA foam, and foam core board. Many systems also handle soft woods, modeling boards, and composite materials, providing versatility for diverse project requirements.
Wooden Crafts Hollowing
Plastic Mold Making
Car Mould Making
Foam Mold Making
3D Foam Mold Making
Board Furniture Carving
EPS Mold Making
Aluminum Mold Making
4-Axis CNC Machining Center Parameter：
| Model | iGW-MC-1337 |
| Working area | 1300x3700x1200mm |

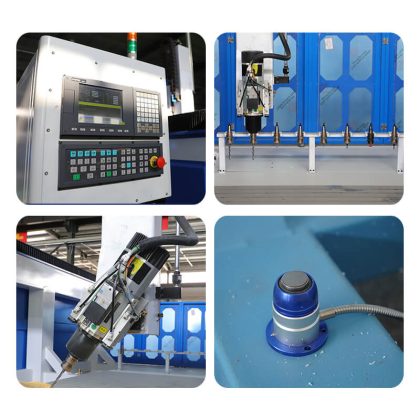

| Spindle | HQD 9kw atc air cooling spindle + swing 180 degree |
| Inverter | Fuling |
| Motor | Japan Yaskawa 850W servo motor |
| Driver | Japan Yaskawa 1kw servo driver |
| Control System | Syntec 6MB control system + hand wheel |
| Table | Vacuum & T-slot table with 7.5kw air vacuum pump |
| Transmission | XY Taiwan rack, Z Taiwan TBI ball screw |
| Guide rail | Taiwan linear guide |
| Ball screw | Z TBI ball screw |
| Body | Thick steel tube Welded body |
| Beam | Steel beam |
| Columns | Steel columns |
| Control box | Independent control box |
| Colour | Custom made |
| Lubrication | Automatic oiling |
| Tool Setting | Automatic Tool Calibration Sensor |
| Dust collector | Double bag dust collector |
| Voltage | 3 Phase/380V/50HZ |
Key Advantages of 4-Axis Machining
Enhanced Geometric Complexity: The fourth axis enables machining of cylindrical parts, curved surfaces, helical geometries, and complex contours that would require multiple setups on 3-axis machines. Components like turbine blades, sculptured molds, cam shafts, and intricate aerospace parts become feasible and economical.
Single-Setup Efficiency: Perhaps the most significant advantage is the ability to machine four sides of a workpiece in one setup. This eliminates repositioning between operations, dramatically reducing production time while improving dimensional accuracy. Every time you reposition a part, you introduce potential alignment errors—4-axis machining eliminates this concern.
Superior Surface Finish: By maintaining optimal tool angles throughout complex cuts, 4-axis machining produces superior surface finishes. The continuous motion allows smoother tool paths and reduces the need for secondary finishing operations, saving time and improving quality.
Increased Tool Life: Optimal cutting angles and reduced tool engagement variations mean less tool wear. The ability to maintain ideal chip loads throughout operations extends cutting tool life, reducing costs and minimizing production interruptions for tool changes.
Continuous Cutting Operations: The rotational axis enables continuous cutting around cylindrical or curved surfaces without stopping to reposition. This uninterrupted machining improves efficiency and produces seamless surface finishes impossible with indexed rotary operations.
