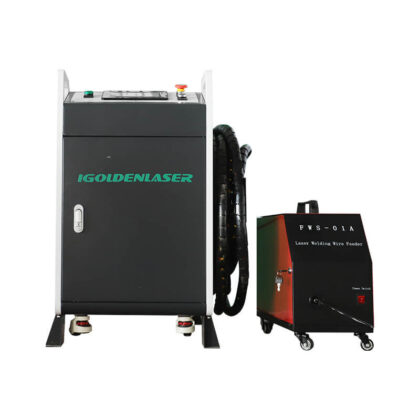

4 In 1 Laser Welding Machine:Welding,Cleaning,Cutting 4 in 1
Four-in-one handheld laser welding, cleaning, and cutting machine consisting of a fiber laser generator, a handheld laser gun, a water cooler, and a 4-in-1 control system for laser welding, cleaning and handheld cutting, each handheld laser gun is portable, convenient and easy to use. Its handheld laser guns can cut and weld metals and clean rust, paint, resin, coatings, oil, and stains.
Category: Laser Machine>>Laser Welder
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $8000-$12000
Description
4-In-1 Handheld Laser Welding Cleaning Cutting Machine
laser welding machine with 4 in 1 function. Laser welding, laser cutting, laser cleaning and weld cleaning in 1 compact device. Laser welding has many advantages over conventional welding techniques – the experts know it and have been using it for a long time. Now all the benefits of laser welding directly in your hands.
Here is the multi-purpose all-in-one laser machine you dream of iGCL-AC, which can not only weld different metal plates, pipes and profiles with various types, sizes and thicknesses, but also cut stainless steel, carbon steel, copper, aluminum, titanium and some alloys, and even clean various substrates and materials for surface treatment.
Laser Welder System
4 Functions of Laser Welding Machine
- Laser Welding:With a laser welding torch, it is a laser welding machine that can weld aluminum, stainless steel, titanium, gold, silver, copper, nickel, chromium and other metals or alloys, and can also be applied to various welding metals between different materials , such as titanium-gold, copper-brass, nickel-copper, titanium-molybdenum, etc.
- Laser Cutting: Laser cutting is a process that utilizes a highly focused laser beam to cut through materials with precision. With a laser cutting gun, it is a handheld laser cutting machine suitable for cutting various metal sheets and pipes.
- Welding seam cleaning function: In the welding process, the welding seam due to high temperature black, discoloration and other states, through the welding seam cleaning function, can effectively restore the true luster of the metal, make the metal surface more bright and clean.
- Laser Cleaning: Laser cleaning is a non-contact surface cleaning process that uses a laser beam to remove contaminants, such as rust, paint, coatings, or debris, from the surface of a material. The laser energy vaporizes or ablates the unwanted material, leaving behind a clean surface. Laser cleaning is efficient, environmentally friendly, and does not involve the use of chemicals or abrasives.
4-In-1 Handheld Laser Welding, Cleaning, Cutting Machine Features:
4 In 1 Handheld Laser Gun
The handheld laser gun can weld, clean, and cut with an intelligent controller for easy-to-use, flexible processing, easy carry, small size, low cost, and no consumables.One machine, three functions: welding, cleaning and cutting, the conversion of each function is convenient and simple.
Built-in Water Chiller Design
It can avoid the shackles of wires to fit more sites and has good dustproof and anti-condensation effects.
Intelligent Control Panel
The built-in parameter adjustment range is large and easy to start with one key.
Fiber Laser Generator
The JPT, Raycus, and MAX lasers are optional and feature higher photoelectric conversion efficiency, lower error rate, low power consumption, and maintenance-free and compact construction. Low error rate, low power consumption, maintenance-free and compact.
High Productivity – high-speed welding of wide range of materials with wire feed options for consistent high-quality results.
The hand-held cleaning head has a simple hand-held structure and is easy to carry. Equipped with a touch screen, it is convenient to switch parameters during work and simplify the operation. Weight 0.8kg, light to use without fatigue.
Metal Cutting
Welding Of Metals
Laser Cleaning
| Model | iGCL-AC 1000 | iGCL-AC 1500 | iGCL-AC 2000 | iGCL-AC 3000 |
| Power | 1000w | 1500w | 2000w | 3000w |
| Laser Wavelength | 1080(±10)nm | |||
| Laser Type | Continuous / Modulation | |||
| Max. Laser Frequency | 30KHz (Customized is available) | |||
| Wave Range | 0-5mm | |||
| Collimating Length | 50mm | |||
| Focus Length | 150mm | |||
| Gun Weight | 0.85kg | |||
| Cable Length | 10m(Max. Length 20m) | 10m(Max. Length 15m) | ||
| Power Supply | Single-phase AC 220V±10%, 50/60Hz | Three-phase AC 380V±10%, 50/60Hz | ||
| Cooling Method | Water Cooling (1000w-2000w built-in water chiller; 3000w independent water chiller) | |||
| Machine Dimension | 1200*600*1100mm (3000w) | |||
| Packing Dimension | 1400*780*1380mm | 2200*780*1380mm | ||
| N.W / G.W | 230kg/ 260kg | 240kg/ 270kg | 250kg/ 280kg | 350kg/ 380kg |
The equipment we have provided has been successfully operated in many different working conditions and environments, and it will bring you the most reliable and perfect function to fully satisfy your needs. Also, if your company needs more detailed information, please let us know as soon as possible.
4-in-1 Laser Machine for Laser Welding, Laser Cleaning and Laser Cutting
Functional application: It can be switched between welding, cutting and cleaning.
Mainly used in automobile manufacturing, mechanical processing, electronic processing, cultural relics restoration, mold industry, shipbuilding industry, food processing industry, petrochemical industry processing, petrochemical industry and other industries.
Handheld metal fiber laser welding machine with auto wire system FQA
Yes, handheld laser welding speed is quite high, 2-10 times faster than traditional torch welding. With such a speed a typical handheld laser welding machine can save significant manpower per year.
A beginner unit can run as low as $5000 and the price tag can go up into 10s of thousands as the output laser power and the parameters go up in value.
The hand-held laser head is simple in appearance, small and light, and can be used by hand for a long time. The integrated design of buttons and handles is simple and easy to use. Integrated processing and molding, sturdy and dustproof, stable and durable, can be switched for cleaning and cutting according to different scenarios, which is convenient and easy to operate.
Laser welding, cleaning, and cutting machine is a portable all-in-one laser system consisting of a three-in-one laser welding, cleaning, and cutting machine consisting of a fiber laser generator, a handheld laser gun, a water cooler, and a three-in-one control system for laser welding, cleaning and handheld cutting, each handheld laser gun is portable, convenient and easy to use. Its handheld laser guns can cut and weld metals and clean rust, paint, resin, coatings, oil, and stains. As a laser cleaner, it is a very green cleaning product. It does not require the use of any chemicals or cleaning solutions. The waste after cleaning is a solid powder. As a laser welding machine, the weld seam is smooth and beautiful; no need to polish, no deformation or welding scars, and the weld is firm. Save time and improve efficiency!
It can automatically feed and return wire, and the control screen can directly digitally set the parameters of the wire feeder
