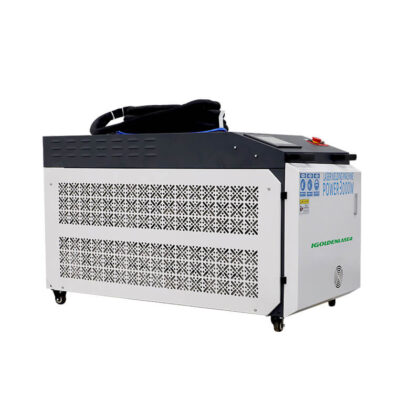

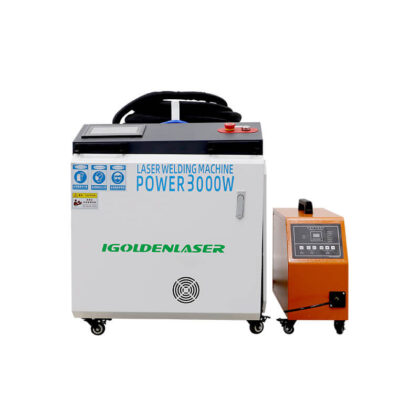

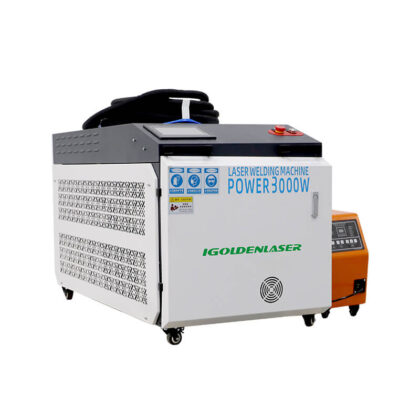

3000w Handheld Fiber Laser Welding Machine

The hand-held laser welding machine is a flexible welding equipment that can be used for hand-held welding. It supports welding of the same and dissimilar metal materials. It is more friendly to micro-small parts, and the welding is fine, and the welding seam is smooth and natural.

Category: Laser Machine>>Laser Welder
Response time: Within 1 hour
Supply Ability: 300 sets/month
Brand:iGOLDENCNC

Get Latest Price:

Description

Handheld Fiber Laser Welding Machine

Handheld laser welding machine features 1000W, 1500W, or 2000W  3000w fiber laser beam for welding joints of butt, edge, corner, tee, and lap. The handheld manual laser welder is used for welding carbon steel, stainless steel, aluminum, brass, copper, iron, silver, gold, and more tube & sheet metals. Equipped with 10m imported optical fiber, the machine can realize welding at any angle for workpieces with various complex welds and large workpieces with irregular shapes.The portable handheld fiber laser welding machine will take over the traditional argon arc welding, MIG & TIG welding, and electric welding for metal joints.

It’s time to upgrade your production equipment, the era of intelligent machinery replacing manual production has come, let’s enjoy getting rid of heavy labor and enjoy life together.Equipped with 10m imported optical fiber, the machine can realize welding at any angle for workpieces with various complex welds and large workpieces with irregular shapes.

2000w laser welding machine

Laser Welding Machine Details

fiber laser welding machine price
handheld laser welding machine price
portable laser welding machine

Handheld Laser Welding Machine Features

  1. Incorporating independent patented technology, higher precision, higher strength, and faster efficiency;
  2. Compared with the traditional welding method, it saves energy and electricity, and the processing cost is reduced;
  3. The welding seam is smooth and beautiful, and has less impact on the original;
  4. Using fiber laser, high photoelectric conversion efficiency, uniform solder joints, and good penetration;
  5. Support various welding seam workpieces and welding methods, and support irregular shape welding;
  6. Multiple protections, hand-held welding, in line with industrial needs;
  7. It can be equipped with a variety of angle nozzles and multiple specifications of wire feed nozzles to meet the welding needs of different products.

Handheld Laser Welding Machine application

Material:Mainly used for welding of various metal sheets of the same material or mixed materials,such as aluminum, iron, stainless and copper sheets etc.

Working on Accessories

Working on Hardware

Working on Tools

Working on Parts

Working on tube

Working on Metal

Working on Stainless

Working on Steel

3000w Handheld Laser Welding Machine

Laser welding machine uses high-energy laser pulses to locally heat the material in a small area. The energy of the laser radiation diffuses into the material through heat conduction, and the material is melted to form a specific molten pool. It is a new type of welding method, mainly for the welding of thin-walled materials and precision parts, and can realize spot welding, butt welding, stitch welding, sealing welding, etc.


Handheld Laser Welding Machine for sale

Hand-held laser welding is thermal fusion welding. Compared with traditional welding, laser welding has a higher energy density and can achieve better welding results. The welding area has little thermal influence, is not easy to deform, black, and has traces on the back, and the welding depth is large. , The melting is sufficient, firm and reliable, and the weld strength reaches or exceeds the base metal itself, which is not guaranteed by ordinary welding machines.



Laser Welding Machine Factory

Compared with arc welding, the processing cost can be reduced by about 30%. The operation is simple, easy to learn, and quick to get started. The technical threshold of operators is not high. Ordinary workers can take up their posts after a short training, which can easily achieve high-quality welding results.


FQA

When using traditional welding machines to weld workpieces, manual measurement of welding data and manual feeding of materials are used. Therefore, the accuracy of welded workpieces often fails to meet the requirements, and subsequent complex processes are required for precision processing. Reduce the efficiency of work, and increase the cost of production. However, the laser welding machine adopts the numerical control system to weld the workpiece, which can greatly ensure the welding accuracy and avoid the complicated process of secondary processing. Let’s talk about the characteristics of precision welding of laser welding machine:

Feature 1:

The laser welding machine tool uses a numerical control system to control the various functional parts of the welding machine to weld the workpiece. You only need to measure the parameters that need to be welded before welding, enter the correct parameters on the CNC panel, and the laser welding machine can weld the workpiece. When welding, the precision of the workpiece from the welding machine meets the requirements, and the appearance is smooth and beautiful.

Feature 2:

After the workpiece is welded using ordinary welding methods. Generally, the accuracy will not meet the requirements, and the appearance will be uneven and rough, and there will be burrs. The laser welding machine is used for finishing these workpieces and can perform precision welding on the workpieces. Therefore, precision welding is the most important welding method in industrial production and processing.

Feature 3:

When using the precision welding means of the laser welding machine to weld the workpiece, the suitable welding head and suitable welding method can be selected according to the actual welding situation and the nature of the material. There are many methods that can be used in the welding process. For example, close seam welding is divided into several fine methods.

Feature 4:

The precision welding of the laser welding machine is not limited to the nature of the material and the requirements of environmental factors. It can weld any shape and any part of the welding material. In addition, the energy consumption in the welding process is small, which greatly improves the production efficiency and saves the production cost.

Due to the characteristics of fiber laser pulse rise time and high beam quality, the fiber continuous automatic laser welding machine has a small heat input and a concentrated heat source. The energy density of laser welding of aluminum, copper and titanium alloys is more concentrated, the laser wavelength is shorter, and the laser is highly reflective. Improved, especially suitable for metal welding.

Optical fiber continuous automatic laser welding machine in a given optical system, the laser spot size of higher output beam quality is smaller, so the processing efficiency can be improved. For most materials, through laser wire filling, laser-MIG hybrid welding, dual-spot laser welding and other processes, the forming effect of aluminum alloy welding can be significantly improved. The rough metal surface has a high degree of sandblasting, light reflectivity and a clean surface., Which indicates that the laser energy input is less and the welding quality is improved.

The welding of steel and aluminum alloy itself can be very problematic. The typical problem is that the strength of the welded joint drops sharply. The more serious problem is that there is no tin connection at all. The melting temperature of steel is generally about 1600°C, while the melting temperature of aluminum alloy is about 600°C.

Therefore, the welding heat source is very critical. In fusion welding, the butt joint of steel and aluminum is not easy to melt at the same time. The coefficient of thermal expansion and thermal conductivity of steel and aluminum are very different. Aluminum is more likely to cause greater thermal deformation and thermal stress, and it is also easier to conduct heat.

The melting of aluminum alloy requires a higher power density of the heat source. Another serious problem in the welding of steel and aluminum is the production of iron-aluminum intermetallic compounds, which are brittle phases, which will severely reduce the strength of the welded joint in the weld.

Only when the size of these brittle phases is controlled below 10 microns, it is possible to avoid these brittle phases. However, the formation and growth of second phase particles during high temperature and solidification is a natural process. It is not easy to control the nucleation process and growth process of the solid phase transformation within a controllable range.

Alright, the editor of the laser welding machine today is over for sharing the content for you. If you have other questions about the laser welding machine products of iGolden Laser, or want to know about our company’s automatic laser welding machine products, you can Feel free to consult us.

The properties of the material relationship with the laser welding depth, and the thickness of the material, weld carbon steel and titanium are certainly impossible.

For example, welding: 2mm thick stainless steel plate, need to penetrate, solder, better. We recommend using 1000W fiber laser welding, speed up to 1 m / min

For example, welding: welding 3mm stainless steel plate, with 500W laser welding, single soldering can penetrate 1.5 mm thick material, if both sides are soldered, each 1.5 mm, 3 mm thick material will penetrate;

For example, welding: 1000W welding 5mm stainless steel plate can also be welded, one side can be 3mm of the molten pool, some production port tension requirements are not high, or meet the requirements, if slow, slowly walking welding is also 5mm.

Different power welding thickness of hand-held laser welding machines. So the laser welding machine.

Handheld laser welding machines are widely used in the market. Because of its cost performance, the public recognizes its in life.
