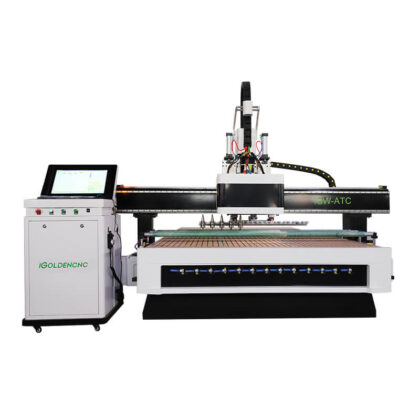

ATC CNC Router Oscillating Knife Cutting Machine
atc cnc router combined digital knife cutting

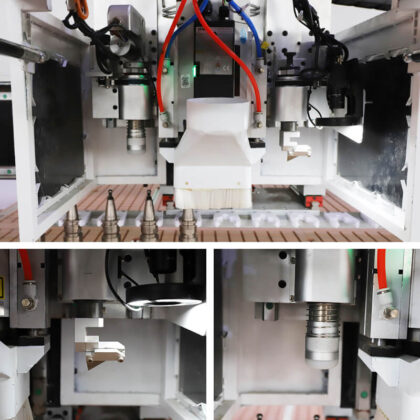

oscillating knife for cnc router

ATC CNC Router Combined Digital Knife Cutting

Item No.:iGW-ATC-2030

ATC CNC Router with oscillating knife adopts a carousel type auto tool changer, and it has the characteristics of fast tool change speed and small guide rail wear. Equipped with oscillating knives, it can process soft materials such as PVC, KT, leather, and fabric. Therefore, with the advantages of multiple functions, cost-effective, it is suitable for a variety of processing needs of production.

If you need more detailed information, please inform us as soon as possible.

Get Latest Price:

Description

The linear ATC CNC router with oscillating knife combines the functions of a CNC router and an oscillating cutter. ATC makes woodworking automatically, helps the man out of the manual operation of choosing and fixing tool/bits, and also greatly saves much time.

The finished product cut by the Oscillating knife cutting machine is very clean and neat, the edge is smooth, and the piece size is accurate, odorless, environmentally friendly. This oscillating cutting machine is widely used in the clothing industry and the advertising industry.Oscillating knife meets the cutting needs of leather, carpet, carton, cardboard, rubber, etc.

3 Axis CNC Router

Machine Video

Oscillating Knife Cutting Machine

CNC Machine with Oscillating Knife
9kw ATC air cooling spindle
automatic tool change
swing knife cutting.

Model iGW-ATC-2030
Working area 2030*3100*200mm
Machine Body T-type Welding Structure
Gantry Steel Structure
Worktable Vacuum Suction with T-slot Table
Spindle HQD 9.0kw Air Cooling Spindle
Tool changer 12 straight line change knives
Custom Configuration Press wheel, vibrating knife and inclined knife
Speed Speed 18000rpm
Guide Rails Taiwan HIWIN
Ball Screw Taiwan xinyue
Driver DORAN Servo Drive and Motor
Reducer Japan SHIMPO
Inverter Fuling
Electrical Components France SCHNEIDER
Vacuum pump 7.5kw
Control System XDW system
Working Voltage 380V/50Hz

1325 ATC CNC with Oscillating Knife

1. Equipped with the linear tool change function, 8 tools are automatically switched, saving time and improving efficiency.

2. Adopting international imported components like big power and high precision servo motor and driver, the machine has a more precise machining accuracy and more stable operation.

3. The high-power air cooling spindle has strong cutting capacity and excellent processing accuracy.

4. Equipped with a vacuum & T-slot working table, it can fix the materials stably and firmly.


Application of CNC Router with Oscillating Knife

A vibrating knife is an important tool for processing flexible materials, including vinyl, edge paper, vinyl, packaging foam, foam core, crocodile foam, corrugated plastic or cardboard, leather, fiberglass, corrugated cardboard, honeycomb cardboard, stickers, Film, foam board, acrylic board, resilient rubber, rubber cloth, gasket material, clothing cloth, footwear material, luggage material, non-woven fabric, carpet, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE, and composite materials.

thermal insulation material: Pre-insulated Duct Board, heat insulator, fibrous heat insulator, glass fiber thermal insulation material, thermoplastic insulation material, cellular insulant, External wall insulation, wall insulation, Exterior thermal insulation materials, building insulation materials

Cutting Industry: sponge, foam, leather, PU, PVC, oxford cloth, corrugated paper, KT board, and other materials so on.

Yes, of course. Our CNC router machine can process wood, solid wood, MDF, HDPE, plastic, foam, soft metal, such as aluminum, etc.

Yes, of course. All our configurations can be customized according to your needs.

Sorry, our oscillating knife can only go straight up and down, and keep cutting at the same height. So it’s can engrave 3D workpieces. Our 4-axis and rotary axis CNC router machine can perform 3D relief and 3D model processing.
