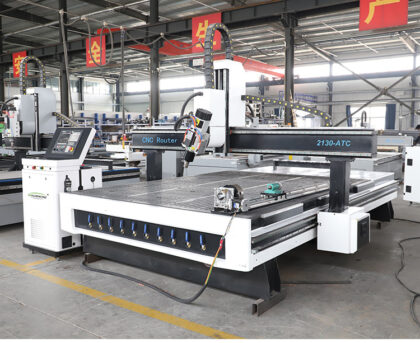

Rotary Spindle 4 Axis CNC Wood Engraving Machine with Auto Tool Change

Item No.: iGW-4AS

The best 4 axis CNC wood engraving machine, the spindle can swing 180 degree, 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale engraving without dead angles, and can complete curved surface processing, mainly used in wood mold industry, craft industry and gift industry.

Category: CNC Router >>CNC Wood Router>> 4 Axis CNC Router
Response time: Within 1 hour
Supply Ability: 200 sets/month
Price Range: $18350-$20350

Get Latest Price:

Description

Who is it for?

The 4 axis ATC CNC machine with swing spindle, which can realize 180° full carving, perfect for manufacturer or factory of crafts and gifts, the affordable model designed by iGOLDENCNC, combined with a competitive set of configurations. Hot applications include:

>Furniture industry: wooden doors, cabinets, wardrobes, panel furniture, office furniture, tables, chairs, doors and windows;
>Crafts industry: audio, game cabinets, computer tables, musical instruments, wooden ornaments, etc.

What makes it unique?

Popular with curved carving manufacturer, equipment with tool-carrier, the iGW-4AS series 4 axis ATC CNC machine is suitable for the furniture woodworking industry and crafts industry.

>Spindle rotates 180 ° for easy implementation of advanced commands;
>With adsorption block, improve the engraving accuracy;
>Heavy industry quality, stable operation for 10 years;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.

Applications of ATC CNC machine

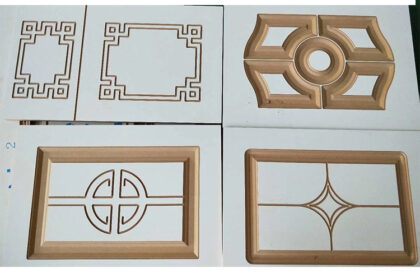

Wooden Door Processing

Instruments Board Milling

Wood Mural Relief

3D Molding Carving

Acrylic Engraving Cutting

3D Studio Processing

3D Resin Carving

3D Wave Board Carving

Positioning Accuracy ±0.05mm
Repositioning Accuracy ±0.02mm
Command Language G Code
Flash Memory 128G
Max. Rapid Travel Rate 50000mm/min
Max. Working Speed 20000mm/min
Spindle Power ATC 9KW HQD air cooling spindle
Spindle Speed 24000rpm/min
Working Voltage 380V/50Hz
Running Environment Temperature About 25℃
Relative Humidity <85%
Ps. Adjustment is available according to locally requirement
Working Area (X,Y,Z) 1500*3000*500mm
Packing Size 4900*2300*2200mm
N.W./G.W. 2300KG

Features of ATC CNC machine

2130 ATC 4 Axis CNC Router

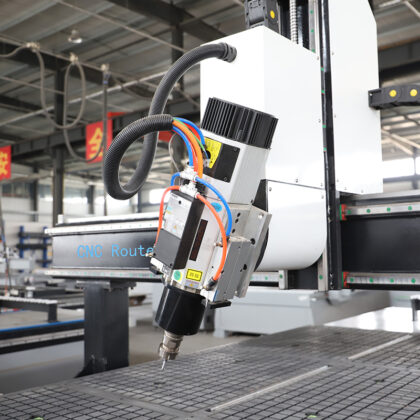

ATC 9KW HQD air cooling spindle

ATC 9KW HQD air cooling spindle, can rotate 180 degree. High-temperature grease lubrication, the body is made of high-quality stainless steel, imported ceramic ball bearings, precision grinding inner hole, high-precision chuck and dynamic balancing nut.
The main shaft can swing 180°, ER25 standard shaft end, dustproof and waterproof seal, the body is smooth and not easy to rust, and the rotation precision is high.
It can easily complete 3D processing, bearing life is long, high speed and low noise, stable operation, processing do not collapse, high precision spindle, maintenance-free.

2130 ATC 4 Axis CNC Router

Heavy Machine Body

The bed is optional, the first is a T-shaped thickened bed, the G1 structure is a 150*200mm rectangular tube welded bed, and the second is a screw drive structure bed, which is processed by large gantry milling. Rail holes and rack holes are milled once, with high precision.
Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed and reduce the machining error of the workpiece. Increase the resistance and stability of the guide rail.
Reduce the loss of the equipment in use. The precision of the machine tool can be maintained for a long time without deformation in 20 years. The equipment has good stability and reduces processing errors caused by bed vibration.

2130 ATC 4 Axis CNC Router

The Third-generation Gantry

The thickened rectangular tube beams have an extended design and are annealed to withstand weights up to 1000kg.
High strength, good rigidity, lightweight, no deformation, long service life.
The damage to the motion conduction device is small, and the resistance to the drive motor is small so that the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use costs are reduced.

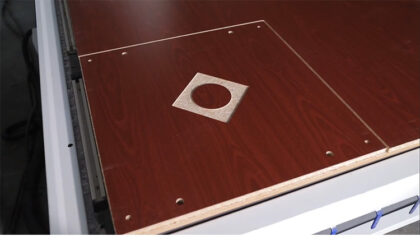

Vacuum with T-slot Table

Vacuum & T-slot table with air cooling pump, uniform adsorption force on the table, can remove flammable and explosive gases, dusty gases, condensable gases and soda-water mixture.

>Can be sucked and clamped dual-use table, the small board does not run;
>Reduced 70% clamping time;
>Saving 90% working time;
>Holding small and soft materials without any vibration;
>Compared with the magnetic splint, it can also clamp non-magnetic materials;
>Obtaining clamping force per square centimetre through 6mm drilling and 50cm interval.

2130 ATC 4 Axis CNC Router

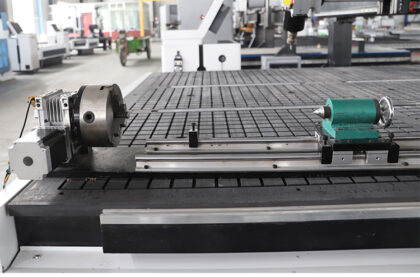

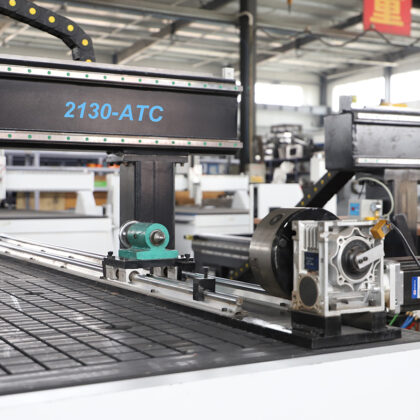

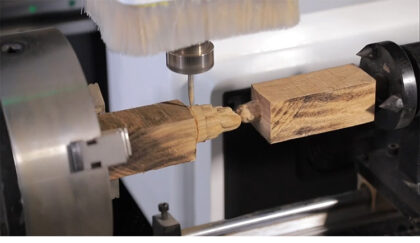

Table Rotary Device

Independent side fixed chuck rotation shaft, three-jaw electric chuck, minimum clamping diameter is 20mm, the maximum clamping diameter is 200/300/400/500/800mm.
It does not affect the normal processing of the work surface and has a wide range of applications.
Assist the 2D engraving machine to complete the engraving and 3D machining tasks of the cylinder.

High-precision Transmission System

The positioning accuracy of the machine is 0.02mm, the maximum running speed is 50,000mm/min, and machine working life up to 10 years.

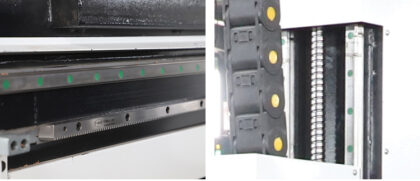

Taiwan HIWIN Guide Rails and Rack

Japan YASKAWA Servo Driver

Japan SHIMPO Reducer

Upgraded Intelligent Control System

Taiwan LNC System.

>Strong compatibility compatible with many CAD / CAM software such as Type3 / Artcam / Castmate / Proe / UG / Carved Wentai;
>Advanced file pre-processing function helps users to correct errors in processing files in time;
>Advanced three-dimensional curve prediction algorithm, the polyline is stable, ensuring the speed and accuracy of the curve;
>It has the function of breakpoint and breakpoint engraving, and the function of automatic error correction when returning to the origin, which effectively guarantees the processing accuracy when working for a long time;
>The system is easy to operate, responds quickly, and quickly removes obstacles, which is conducive to learning.

High-precision Automatic Tool Sensor

High precision automatic tool sensor, 1um repeatability, suitable for 95% of the operating system in the market, easy to install, super-hard alloy for the blade surface, stable and durable, IP67 class deep waterproof.
Compared with manual tool set, the machining accuracy and work efficiency are improved. The operation time is saved by 70%, the machining accuracy is increased by 30%, and the defective rate of products is reduced.

France Schneider Electric Components

Advanced anti-interference ability, stable signal, suitable for the different working environment, high safety.
Stable operation for 10 years, ensure engraving machine circuit safety, safety performance improved 50%.

Automatic Lubrication System

Guaranteed machine’s lubrication all the time, ensure the smooth operation of the CNC router, with abnormal alarm and liquid level alarm. It will extend the service life of the transmission system and whole machine, and reduce maintenance time, increase your profits.

Options of ATC CNC machine

Control System Optioned

Taiwan LNC system is the standard system.

Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

Operation System Optioned

NC-STUDIO system is standard system.

DSP system, Mash3 system can be optioned.

Dust Collector Device

A special dust remover for woodworking machines with the antistatic device, explosion discharging device and strong pulse blocking device is adopted. The dust removal efficiency can reach 99%, and there is no dust flying for two times.

Energy-saving and environmental protection to ensure the safety of operators and safe and stable operation of equipment.

If you are here I assume you are thinking about buying a CNC router or some other CNC machine. Without a doubt these are amazing machines that can improve your business or project tremendously. This machine can be used for furniture engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisement industry.

The machine is specially for 4D industry machining. With spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with software, for example: arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bend doors or cabinets.

The machine can make multi-use cnc router center (furniture cnc router for side punching, door lock punching).

Spindle swing is more widely used, mainly for the processing of curved surfaces, handrails, molds and models. The ordinary four-axis engraving machine is mostly used for circular 3D processing.
