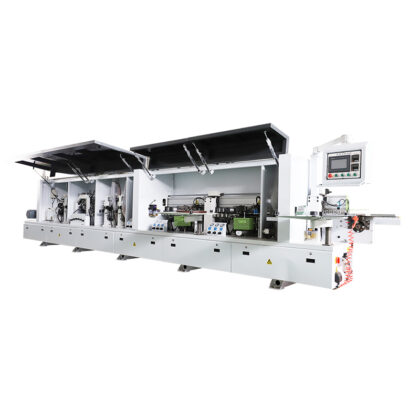

Automatic Edge Banding Machine (1)

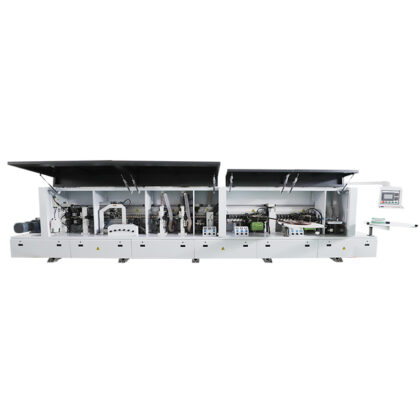

Automatic Edge Banding Machine (2)

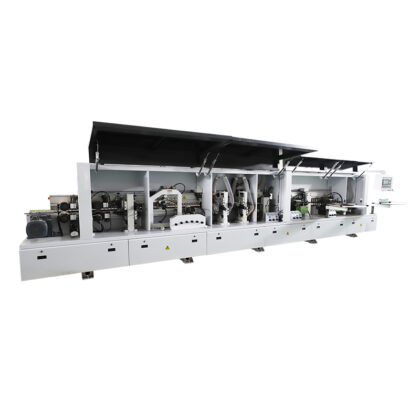

Automatic Edge Banding Machine (3)

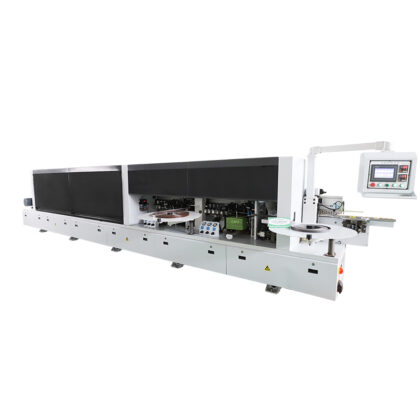

Automatic Edge Banding Machine (4)

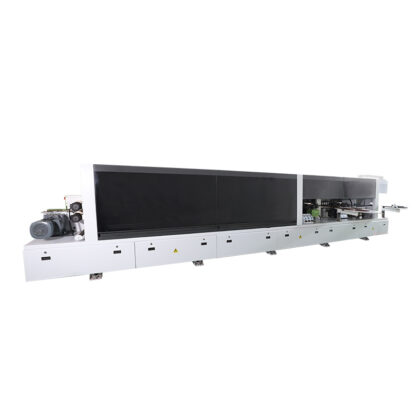

Automatic Edge Banding Machine (5)

Automatic Edge Banding Machine for MDF PVC

Edge banding machine can be used for edge banding of MDF board, Plywood, Solid Wood, Chipboard (Melamine laminted) and the Glazed board ( prefer to add the PUR glue system).Entry-Level Automatic Wood Edge Banding Machines for Sale。We offer a complete range of fully auto edge banding equipment for massive production and cheap edge banding machine for small shops.

Category: CNC Router >>Furniture Making Machine
Response time: Within 1 hour
Supply Ability: 300 sets/month
Band: IGOLDENCNC

Get Latest Price:

Description

Edge Banding Machine

The edge banding machine, is used to band the straight and curved panel edges for custom furniture production. A woodworking edge banding machine falls into the manual edge banding machine and the auto edge banding machine, specially designed for shops and companies looking for efficient and precise edge banding service and solutions.

Fully automatic edge banding machine is a high precision, high efficiency, high speed of the furniture plate for the straight line edge sealing, repair, scraping and polishing equipment, This is a fully automatic edge banding machine. It has the characteristics of delicate and smooth edge banding, good hand feeling, straight and smooth sealing line, and so on. And it is very suitable for the production and use of large and medium-sized furniture, cabinets and other panel furniture.

edge banding machine

Edge Banding Machine Application


Curved Edge Banding Machine

The CNC automatic edge banding machine is a highly automated machine that replaces the manual edge banding procedures (loose, pre-milling, glueing, cutting, flushing, rough trimming, fine trimming, scraping, polishing, grooving, profiling tracking) machine. The edge banding process is a very important process in the manufacturing process of panel furniture.

The pvc edge banding tape manufacturing machine is a kind of woodworking machinery and an important processing flow of furniture production line. It is used to repair excess edge banding material above and below the edge band of the plate.

This is a fully automatic edge banding machine. It has the characteristics of delicate and smooth edge banding, good hand feeling, straight and smooth sealing line, and so on. And it is very suitable for the production and use of large and medium-sized furniture, cabinets and other panel furniture. Equipped with a fully enclosed safety shield, it can ensure operator safety and protect the environment.


Edge banding machine for small shops

This type of edge banding machine can choose to apply glue on both sides of the sheet and cover tape, and the glue is evenly applied. It can seal the side curve and straight line of the board, and widely used in edge banding of furniture, cabinets, interior decoration, etc.

1. With the timing break function, it can realize flexible switching between feeding and cutting.

2. Equipped with suction cups, it has the advantages of strong bearing capacity and strong stability.

3. Adopting intuitive digital display operation panel, it is easy to operate.

4. Edge banding materials include PVC, veneer, melamine, plastic and other materials.


Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.

Application Of Automatic Edge-Banding Machine:

This machine is suitable for the straight plane edge sealing of MDF, particleboard, woodworking mesh board, solid wood board, etc. The sealing material can be ABS, PVC, veneer, wood strip, or melamine.

It is suitable for straight edge sealing of solid wood board, fiberboard, particleboard and other sheet metal parts. The edge sealing material can be made of solid wood strip, PVC, melamine, thin veneer, etc.



Features

Edge curve can be processed in several ways. The curved edge banding machine in order to achieve a stable high level of quality, the NC machining center or NC edge machine, the two machines for some special surfaces edge can show special advantages, such as the edge with the length of the counter can make the smallest circumference of the gap edge docking that is more suitable for the manufacture of high-end furniture products. The difference between the two is that all processes from saw cut to the last parts forming the machining center, complete sealing and trimming process of CNC sealing machine dedicated only, using the processing center edge is the edge takes a larger total processing time, reduces the production efficiency. Most manufacturers use manual edge machining curved parts, especially sheet metal parts within the arc, the maximum edge machine will decide by the wheel diameter can be processed Curve depth. Manual edge banding machine sealing curved edge has the advantages of simple operation, less investment. But due to edge by hand, quality is relatively high, mainly in the lower bonding strength, poor repeatability, high rework rate. At the same time manual sealing machine for thick edge banding commonly used (1.0-3.0mm) edge is relatively difficult but, to use some thin edge sealing strip is not visible on the component (0.4-1.0mm) can be made straight and curve processing.


FQA

Pre-milling: Double milling cutters are used to modify the ripple marks, burrs or non-vertical phenomenon caused by the panel saw processing to achieve better edge sealing effect and to make the edge band and the board more tightly fit, better integrity and aesthetics. Adhesive edge banding: Adopting a special structure, evenly apply adhesive on both sides of the edge banding plate and edge banding material to ensure a stronger adhesion. Head-to-head: through precise linear guide rail movement, adopts automatic tracking of the mold and high-frequency high-speed motor fast cutting structure to ensure the cut surface is smooth and smooth. Finishing: Both the profile automatic tracking and high-frequency high-speed motor structure are used to ensure the smoothness of the upper and lower parts of the trimmed board. It is used to repair excess edge banding material above and below the edge band of the plate. The finishing knife is an R-shaped knife. It is mainly used for PVC and acrylic edge banding for panel furniture. Edge banding with thickness of 0.8 mm or more is preferred.

This is a fully automatic edge banding machine. It has the characteristics of delicate and smooth edge banding, good hand feeling, straight and smooth sealing line, and so on. And it is very suitable for the production and use of large and medium-sized furniture, cabinets and other panel furniture.

Pre-milling-gluing-front-to-back flushing-roughing up and down-finishing up and down-anti-tracking front and back-scraping up and down-polishing up and down.

1. Remove the packaging of fixed mechanical parts.
2. Put the machine on the ground and adjust them to be level.
3. Fix the coil edge banding materials on the machine with the storage turntable.
4. Connect external power cable, and 220V 50HZ three-phase four-wire power supply, and ensure the main power cable diameter is more than 4cm².
5. Connect the air source.
6. Connect the suction pipe to the dust removal device.
7. Check whether the voltage is normal, and ensure the compressed air is sufficient and dry.


1.The full automatic edge banding machine can polish the edge banding board , so that the color and smoothness of the edge banding board can be better

2.The full automatic edge banding machine can also scrape the ripple marks generated in the process of curve edge banding to ensure the smoothness of plate edge banding and surrounding parts .

3.The full automatic edge banding machine can apply glue on both side of the processed workpiece and edge banding strip through special setting and structure ,so as to make the adhesion between edge banding strip and plate more firm.
