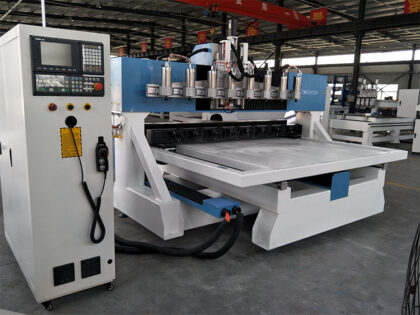

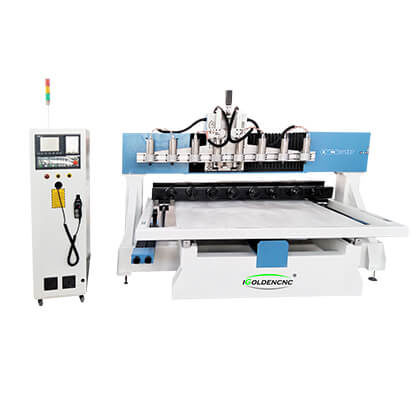

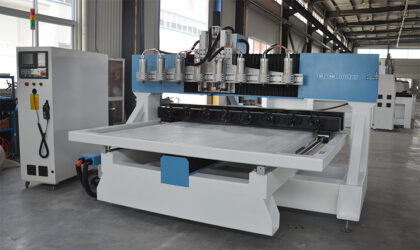

Multi Head 3D CNC Router 4 Axis Wood Carving Machine for Sale

Item No: iGW-3D

The 3D CNC wood router machine is specially designed and developed for the three-dimensional cylindrical batch engraving process. Multi-spindle can be processed at the same time. It is a high-efficiency machine. It is mainly used in furniture manufacturing, gift manufacturing and crafts industries 360 ° carving.

Category: CNC Router>>CNC Wood Router>>3D CNC Router
Response time: Within 1 hour
Supply Ability: 260 sets/month
Price Range: $16880-$18880

Get Latest Price:

Description

Who is it for?

The 4 axis best 3D CNC wood router machine with 6-10 spindles and rotary axis, perfect for furniture manufacturer who need 360° bulk processing, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations. Hot applications include:

>Furniture industry: three-dimensional(3D) carving process of european-style furniture, stair handrails, sofa legs, antique furniture, roman columns, staircase dragon columns and others ;
>Crafts industry: cylindrical musical instruments, three-dimensional buddha statues, three-dimensional figures, bases, etc.

What makes it unique?

Popular with the manufacturer with 3D bulk carving requirement, multiple spindles work at the same time, the iGW-3D series the 3D CNC wood router is suitable for the woodworking industry and crafts industry.

>Mass production, saving time and cost;
>Dedicated aircraft, improve accuracy and work efficiency;
>Heavy industry quality, stable operation for 10 years;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.

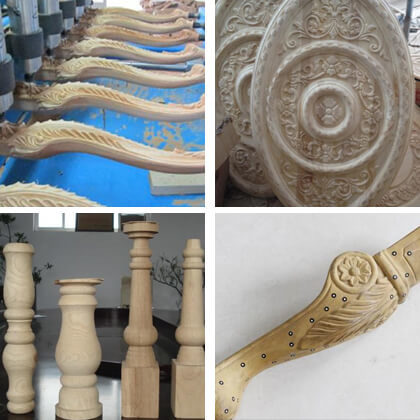

Applications of the 3D CNC Wood Router

Wood 360° Carving

Wood Embossing

Stair Handrail Milling

Sofa Leg Processing

Roman Pillars Carving

Garden Rail Carving

Large Area Carving

3D Buddha Carving

Positioning Accuracy ±0.05mm
Repositioning Accuracy ±0.02mm
Command Language G Code
Flash Memory 128G
Max. Rapid Travel Rate 50000mm/min
Max. Working Speed 20000mm/min
Spindle Power 2.2kw air cooling
Spindle Speed 24000rpm/min
Working Voltage 380V/50Hz
Running Environment Temperature About 25℃
Relative Humidity <85%
Ps. Adjustment is available according to locally requirement
Working Area (X,Y,Z) 2500*1200*400mm
Chunk Diameter 20mm-200/300/400/500/800mm
Rotary Axis Length 2500mm
Packing Size 3400*2400*2300mm
N.W./G.W. 2000/2300kg

Features of the 3D CNC wood router

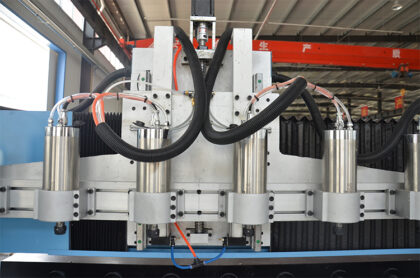

Multiple 2.2kw Water-cooled Spindle

Multiple 3.2kw water-cooled high-speed electric spindles, high-temperature grease lubrication, water circulation cooling system to ensure long-term operation of the spindle, the body is made of high-quality stainless steel, imported ceramic ball bearings, precision grinding inner holes, high-precision chucks and dynamic balancing nuts.
ER20 standard shaft end, dustproof and waterproof seal, smooth body is not easy to rust, high rotation accuracy.
The bearing has a long life, high speed and low noise, stable operation, no chipping during processing, high precision of the spindle, and maintenance-free.

Welding Machine Body

The rectangular tube welding bed is specially designed to thicken and widen the square tube welding, which strengthens the structural stability, and the heavier bed body ensures the stability of the processing. After large-scale gantry milling, all installation basic holes are drilled accurately and annealed.
Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed and reduce the machining error of the workpiece. Increase the resistance and stability of the guide rail.
Reduce the loss of the equipment in use. The precision of the machine tool can be maintained for a long time without deformation in 20 years. The equipment has good stability and reduces processing errors caused by bed vibration.

The Third-generation Gantry

200*300mm thickened rectangular tube beam, heightened design, can withstand weight less than 800 kg with annealed processing.
High strength, good rigidity, lightweight, no deformation, long service life.
The damage to the motion conduction device is small, the resistance to the driving motor is small, the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use cost are reduced.

High-precision Transmission System

The positioning accuracy of the machine is 0.02mm, the maximum running speed is 50,000mm/min, and machine working life up to 10 years.

Taiwan HIWIN Guide Rails and Rack

Japan YASKAWA Servo Driver

Japan SHIMPO Reducer

Upgraded Intelligent Control System

Taiwan LNC System.

>Strong compatibility compatible with many CAD / CAM software such as Type3 / Artcam / Castmate / Proe / UG / Carved Wentai;
>Advanced file pre-processing function helps users to correct errors in processing files in time;
>Advanced three-dimensional curve prediction algorithm, the polyline is stable, ensuring the speed and accuracy of the curve;
>It has the function of breakpoint and breakpoint engraving, and the function of automatic error correction when returning to the origin, which effectively guarantees the processing accuracy when working for a long time;
>The system is easy to operate, responds quickly, and quickly removes obstacles, which is conducive to learning.

4 Axis CNC Milling Machine

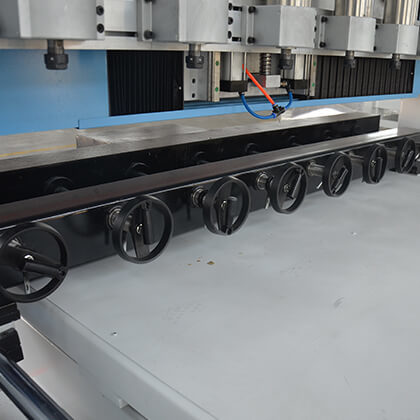

Worktable Rotary Device

It is composed of multiple thimble-type rotating shafts, each of which has a reducer, connected by a coupling to ensure synchronous operation, and is specially designed for 3D engraving processing.
Multiple spindles work simultaneously to improve production efficiency and accelerate cost recovery.

High-precision Automatic Tool Sensor

A variety of tools automatically exchange points, saving 70% of time compared with manual tool setting, and improving 30% cutting accuracy, easy to learn and use for operators.

France Schneider Electric Components

Advanced anti-interference ability, stable signal, suitable for different operating environments, stable operation for 10 years, and improved 50% safety performance.

Automatic Lubrication System

Guaranteed machine’s lubrication all the time , ensure the machine’s smooth operation. This will extend machine service life and reduce maintenance time, increase your profits.

Options of the best 3D CNC router

Spindle Optioned

6kw air-cooling spindle is mainly used for grooving, cutting and milling depth hole;
4.5kw air-cooling spindle is mainly used for perforated and carving;
3.2kw water-cooling spindle is mainly used for relief carving;
5.5kw water-cooled spindle mainly engraving hard material.

Control System Optioned

Taiwan LNC system is the standard system.

Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

Operation System Optioned

NC-STUDIO system is standard system.

DSP system, Mash3 system can be optioned.

The 3D carving machine can make into one head ,two head etc. It’s according to your need.

No, the 3D carving machine can make flat product, also can make 3d product such as sofa leg.

G code like dxf, txt, stl etc.
