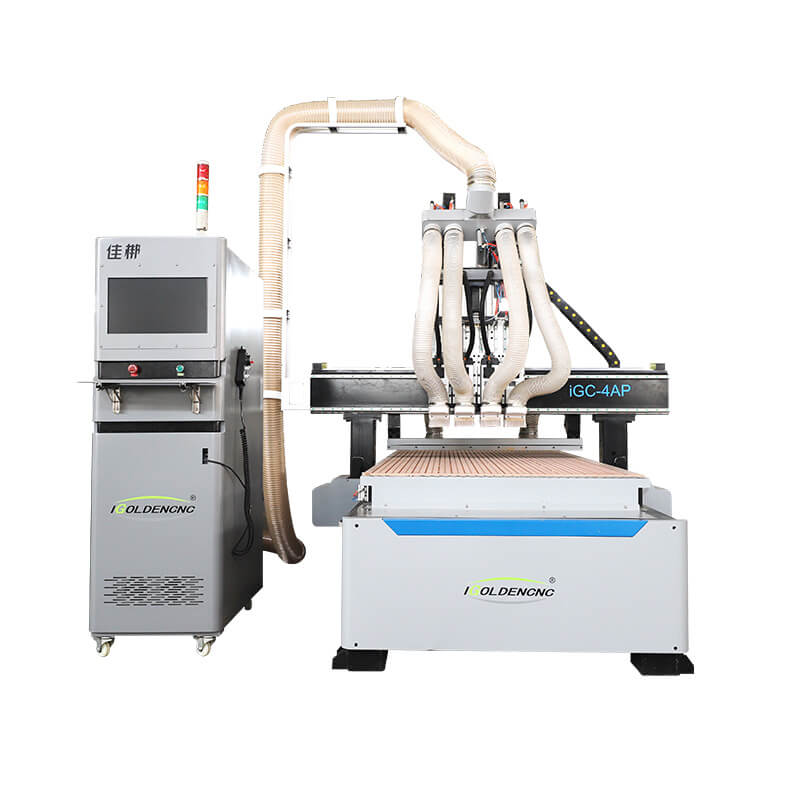

cnc router engraving machine

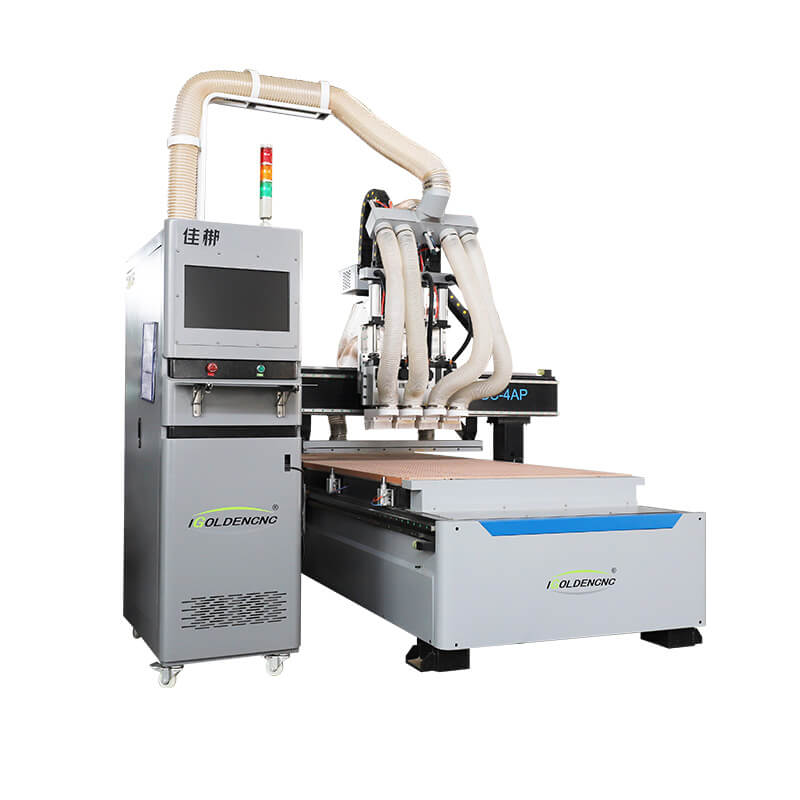

CNC Nesting Machining Centre

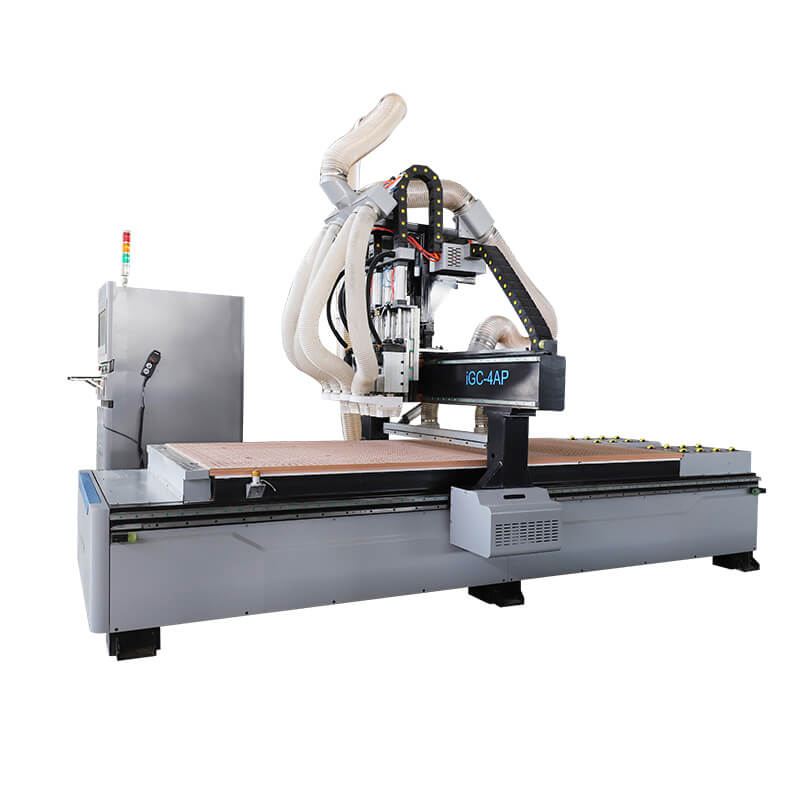

CNC Nesting Machine

CNC Machining 4 Process Wood & Plywood Nesting Machine

The pneumatic 4 process nesting CNC machine is a multi-function automatic CNC nesting machine, which integrates cutting, chamfering, relief, hollowing, punching, slotting and other processes, while meeting the processing requirements of cabinet doors and cabinets.

Category: Furniture Making Machine>>Cabinet Maker
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $13050-$15050

Get Latest Price:

Description

The most popular, Pneumatic 4 Process Nesting CNC Machine with 4 spindles, perfect for small and medium furniture factories, the affordable model designed by iGOLDENCNC for changing tools easily while working, combined with a competitive set of configurations.

Multi-purpose CNC cutting machine

A multi-process CNC cutting machine is a piece of numerical tracking equipment distinctively designed for manufacturing furniture product lines. The common multi-process nesting cnc machines include; double processes, three processes, and four processes CNC cutting machines.

The nesting CNC machine is numerical control equipment explicitly molded for the manufacturing of panel furniture. Its main function is to cut wooden boards. While processing, the cutting machine includes cutting, punching, grooving, and other processes.

cnc wood cutting machine

Wood ATC Router CNC Nesting Machine Details

Woodworking CNC Router Machines for Sale_08_副本
cnc router table

Wood ATC Router CNC Nesting Machine Features:

1. This kind of Multi-head has no tool changer, but it uses different spindles to do different wood carving or engraving, which is very same as simple ATC CNC Router;

2. Pneumatic Spindle CNC Wood Engraving machine Adopts important Servo motor, linear square orbit, stable working, high precision and long lifetime;

3. Intelligent control: LNC control system, it can continue to engrave after power-off;

4. Durable: the whole bed welded steel, strong, forceful, smooth rotation, no distortion after a long high-speed run, no shaking;


4 Process CNC Nesting Machine

X, Y Axis Working Area 1300*2500mm
Z Axis Working Height 200mm
Positioning Accuracy 0.05mm
Re-positioning Accuracy 0.02mm
Body Structure Heavy-duty Welding Body
X, Y Axis Structure Linear Guide Rail, Gear Rack
Z Axis Structure Linear Guide Rail, Screw
Max. Running Speed 50000mm/min
Max. Working Speed 20000mm/min
Spindle 6.0kw Air-cooling Spindle*2+4.5kw Air-cooling Spindle*2
Spindle RPM 24000rpm/min
Working Voltage AC 380V±10%/50-60Hz
Machine Weight 1700/2000kg

>Furniture industry: panel furniture, cabinets, sliding doors, soft bags, office furniture, wooden doors, whole house customization, etc.

>Wooden products: speakers, game cabinets, computer tables, sewing machine tables, musical instruments;

>Sheet metal processing: insulation parts, plasticized workpieces; pcb; inner body of motor vehicles, bowling track; carbonized mixtures such as anti-fold special board, epoxy resin, abs, pp, pe;

>Decoration industry: engraving and cutting of acrylic, PVC, MDF, plexiglass, plastic, and copper and aluminum soft metal plates.

Woodworking CNC Router Machines for Sale
nesting-wood-router

The CNC Nesting Machine is a kind of panel furniture production line. It is a smart CNC solution for customized furniture production for panel furniture making, wardrobe making, cabinet door making, cabinet body making, closet door making, home door making, home decoration, cabinets making, home furniture making, sofa making, bed making, desk making, shop, and office furniture making.
In the furniture production process, the Intelligent CNC nesting machines can realize the totally automatically working, including automatic paste barcode, wood board automatic feeding, hole drilling, slotting, board cutting, automatic uploading, automatic retrieval processes for cutting the side hole, slot on the back, back hole drilling, the whole furniture production process don’t need human judgment, and the nesting CNC machine can process automatically, getting rid of the dependence of woodworking professional and technical workers. Besides, using the automatic feeding CNC nesting machine instead of the traditional table cutting saw or precision cutting saw, to prevent the occurrence of work-related injuries, the health of employees is guaranteed.

The nesting CNC machine is also known as CNC nesting machine, CNC nesting machining center, nesting CNC router, panel furniture production line, CNC wood cutting machine, CNC furniture machines, CNC cabinet machines, CNC router furniture, CNC cut wood machine, CNC router cutters, cabinet door making machine, CNC router for wood cutting, CNC wood cutting machine for sale, CNC router cabinets, cabinet door machine for sale, wood cutting CNC router machine, wood cutting CNC, CNC machine for wood cutting, CNC router cabinet, CNC router cabinet doors, CNC router cabinet making, CNC cabinet machine for sale, cabinet door, CNC machine, cabinet CNC, CNC machine for cabinet making, CNC router plywood cutting, CNC router kitchen cabinets, best CNC router for cabinet making, cabinet making CNC machine, cabinet making CNC, CNC for cabinet making, CNC computer cabinet, cabinet door CNC machine, CNC machine for the cabinet shop, CNC wood cutter machine.

The working path is automatically generated by the CAD/CAM software of the CNC wood cutting machine. Through the intelligent design software(Cabinet Version, Haixun, etc. ) to split single 3D modeling, it can realize the real effect of map rendering. The customized furniture’s shape and size will be seen clearly at a glance. After the automatic assembly generated a single panel report and hardware statements and outputs all sheet drawing formats (DXF format drawing is a common format, it can be open in all the CNC router operation software), each piece of wood plate holes, slots are automatically generated. Through the optimization by the automatic layout software to optimize the layout and generate the processing path —NC program, to maximize the use of the raw materials. It can completely mass production of customized furniture, semi-finished products processing can be clearly distinguished, not easy to confuse for the worker. The convey belt uploading table has two laser radiation sensors, when the workpiece arrives at the sensor, the conveyance will stop automatically. When the worker takes off the workpieces from the table, the convey continues to run until the sensor detects the next workpieces. The CNC wood cutting machine also can reduce labor, improve the utilization of raw materials, greatly reduce production costs.

Panel furniture production lines include automatic labeling row drilling and cutting center, customized cabinet and wardrobe smart hole machine, CNC six-sided drilling, CNC panel saw, cabinet intelligent connection, cabinet and wardrobe molded door line, multiple six-sided drilling and cutting machine connections, production process planning and design, solid wood assembly machining center.

Many customers have used traditional CNC wood routers before using nesting CNC machines. Previously, they were mainly used to cut special shapes or make some hollow lattices, cabinet door milling and other processes. From the functional principle to the appearance of the machine, the CNC wood router is similar to the nesting CNC machine, but in fact the main function of the CNC wood router is for carving, and the main function of the nesting CNC machine is for cutting.

1. Although the ordinary CNC wood router can open materials, its bed structure and mechanical parts determine that it cannot be used for long-term cutting work, otherwise it will cause bed deformation and lower and lower mechanical accuracy;

2. Machine configuration: CNC wood routers generally use stepping motors and ordinary Weihong systems. The nesting CNC machine generally adopts Japanese Yaskawa or Taiwan Delta high-speed servo drive system, and Taiwan’s new generation control system, so the cost difference is very large.

3. The control system used is different. The nesting CNC machine can cooperate with many design and layout optimization cutting software, which can greatly improve the utilization rate of the plate, and the software can automatically split the order and automatically open the material. The operation is simple and the production can be achieved. This is ordinary Unmatched by CNC wood router;

4. The bed structure and accessories used by the cutting machine are much higher than that of the CNC wood router, which can adapt to the long-time cutting work, and the speed is very fast;

5. Save labor. The excellent nesting CNC machine can cooperate with automatic feeding, unloading, automatic labeling and other automation systems to truly realize automatic production, and one person can complete the operation;

6. The dust collection function of the cutting machine is much stronger than that of the engraving machine, and the dust removal effect is better;

7. The cutting machine is a numerical control device with more detection and fault tolerance mechanisms, and is simple to operate. Ordinary workers can complete the operation after simple training.

The working path is automatically generated by the software. Through the intelligent design software to split single 3D modeling,it can realize the real effect of map rendering. Customized furniture shape and size at a glance. After the automatic assembly generated a single panel report and hardware statements, and outputs all sheet drawing format (DXF format drawings belonging to a common format, it can be open in all the CNC router software), each piece of plate holes, slots are automatically generated. Through the optimization by the automatic layout software to optimize the layout and generate the processing path (NC program), to maximize use of raw materials. It can completely mass production of customized furniture, semi-finished products processing can be clearly distinguished, not easy to confuse. It can reduce labor, improve the utilization of raw materials, greatly reduce production costs. In the convey belt uploading table, it has two laser radiation sensor, when the workpiece arrival to the sensor, the convey will stop automatically. When the worker take off the workpieces,the convey continue to run until the sensor detect next workpieces.


iGOLDENCNC, Your best choice

Becoming a customer of iGOLDENCNC, we will cooperate with you on the basis of complete trust and comfort. You will find that we are a reputable supplier and worth your trust. We understand that every customer is valuable, and we will cherish every opportunity to cooperate!

Strict Quality Control System

Advanced testing equipment are used, such as: dynamic balance tester, CNC high precision machining machine, 3D measuring machine; iGOLDENCNC has established a complete and strict quality control system, including 48-hour running test and 72-hour aging test, to ensure the excellent quality of our machines.
