Digital Knife Cutting Machine

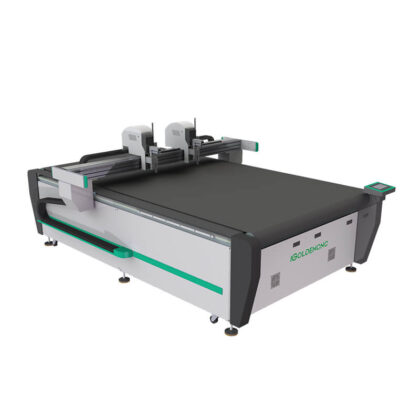

Gasket Industry cutter

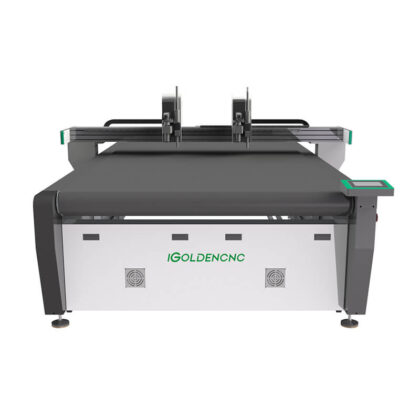

Leather & Shoes CNC cutter

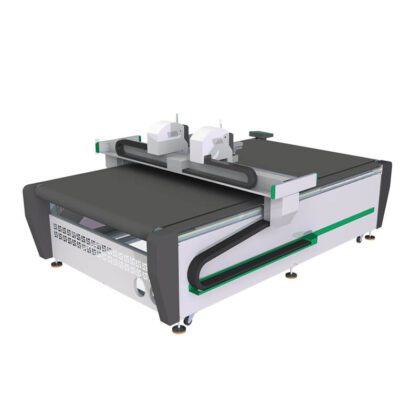

cnc cutter for leather

Double Head Digital Die Cutter_Vibration Knife Cutter

A digital die cutter, also known as a digital cutting machine or digital cutting plotter, is a device used to cut various materials with precision and accuracy. It utilizes computer-controlled technology to cut out intricate designs, shapes, or patterns from materials such as vinyl, paper, fabric, foam, leather, and more.Digital die cutter are versatile tools that provide precise cutting capabilities for a wide range of materials, making them valuable for both personal and professional applications.

Get Latest Price:


Double head Vibrating Knife Cutting

EVA FOAM board Double Heads Oscillating Knife Cutting Machine is an advanced machine , which is easy to operate and the intelligent LED touch screen control panel can achieve a variety of parameters set and adjusted. It’s equipped with 2 multifunctional cutting heads, which greatly improves production efficiency. The automatic feeding device for continuous feeding, long cutting across the width, and unlimited theoretical cutting length make it possible to meet the needs of cutting cloth material of different widths. The intelligent safety anti-collision protection device and infrared safety blocking device ensure maximum protection for the operator when the machine is running at high speed.

These machines are commonly used in various industries, including crafts, graphic design, packaging, signage, fashion, and even in the production of prototypes and samples. They offer several advantages over traditional manual cutting methods, such as efficiency, accuracy, consistency, and the ability to replicate designs quickly.

Digital Cutting Table
oscillating cutting machine part
oscillating cutting machine kit (2)

vibration knife

Oscillating Knife Tool

Supports up to 8 multifunctional tools at the same time (e.g. EOT, POT, Hole Punching Tool, power rotary tool, kiss cutter,Universal Cutting Tool, Pen, v-cutter)

Electric Oscillating Tool ,Pneumatic oscillating Tool

Creasing Wheel,V-cutter,Camera Vision System

Punching Tool,Spindle,Mark Pen

Kiss-cut Tool, Drag Tool,Round blade Tool

cnc Cutter Plotter

Double Head Oscillating Knife Cutting Machine Feature

This Oscillating Knife Cutting Machine is equipped with 2 multifunctional cutting heads, which greatly improves production efficiency.

Automatic feeding device for continuous feeding, long cutting across the width and unlimited theoretical cutting length.

Intelligent safety anti-collision protection devices and infrared safety blocking devices ensure maximum protection of the operator when the machine is running at high speed.

The overall stability, user-friendly design, safety operation and flexible operation make the knife cutting machine superior to those in the same industry.

Vibrating Knife Cutting Machine

Technical indicators parameter
Model iGK-1625(Size can be customized)
Working Size 2500(L)*1600mm(W)
Dimensions 3200*2300*1200mm(L*W*H)
Machine body Welded high strength integrated bed
Platform Aerospace aluminum vacuum adsorption platform
Platform adsorption material 4mm felt
Tool Vibrating knife
Cutting speed 200-2600mm/s
Translatory velocity 500-2800mm/s
Cutting thickness 0.1-40mm(The actual materials shall prevail)
Cutting accuracy 0.05mm(The actual materials shall prevail)
Operating system Zhongrui
Vacuum pump 9KW vacuum pump
Drive part Taiwan straight square rail and rack
Miscellaneous function Cross red light location
Motor drive Full servo motor drive
Electric device Chint/Omron
Voltage AC220V/380V,50Hz
Weight 1500KG
Can be matched with knives Vibrating knives, round knives, punching knives,
pneumatic knives, multi-layer knives,
supporting knives, half cutters, bevel cutters, milling cutters, etc.

Digital Plotter Cutting Machine Application

Widely used in sign graphics, digital printing, packaging, automobiles, cruise ships, exhibition tools, sign production, gasket materials, crafts and other industries.

Digital cutting plotter can cut any material size without limitations. You can cut a small piece of material or a large piece of material with the same accuracy.

Digital Knife Cutter Machine Materials:

Commonly used to cut and process materials such as corrugated board, honeycomb board, fluted core such as correx, flexo plates, KT panel, foam board such as Foamex, carpet, corrugated plastics, thin plastics like HIPS, PP sheet, gaskets,Fabrics, leather, nylon, textiles, carbon fibre, glass fibre, Oxford cloth, blankets, canvas, imitation leather, genuine leather, cotton and linen, luggage, sofa fabrics and carpet fabrics.

Oscillating Tangential Knife application 3
Knife Cutting Machines application-4
