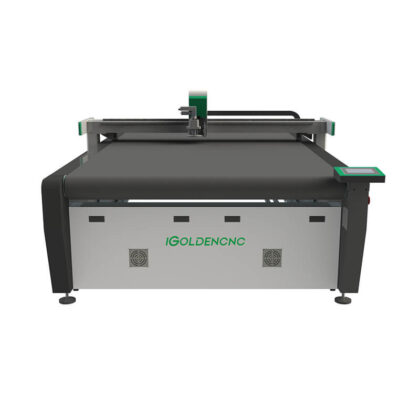

paper cutter

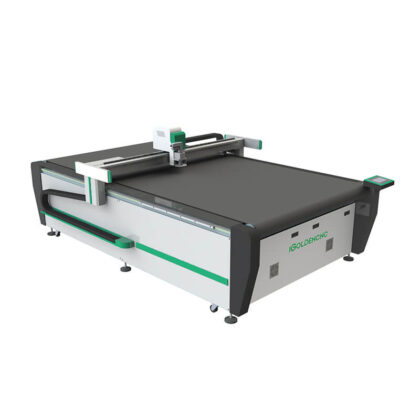

CNC tangential knife
cnc oscillating knife cutting machine

Oscillating Cutter for Cardboard Craft Paper Fabric Die

The oscillating knife can cut both soft and hard materials, and is widely used in foot pads, cushions, leather cutting, etc. The finished product cut by the oscillating knife is clean and neat, the edges are smooth, and the size of the cut pieces is accurate, there is no smell, and it is more environmentally friendly.

Category: Oscillating Knife Cutting Machine
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $5000-$8000

Get Latest Price:

Description

Oscillating Knife Cutter

CNC Oscillating Knife Cutter is a type of CNC cutting machine which is used for high-precision cutting of heavier flexible and semi-rigid materials.

CNC oscillating knife cutting machine is carried on the multi-tool cutting head–Vibration knife, Oblique knife, Circular knife, Punching knife, Milling knife,Punch roller and Marking pen.  CCD camera and Projector are optional for more precise cutting.

Using cnc knife cutting technology, our digital cutter machine has no burning and totally environmently.It’s equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers’ different requirements.The heavy duty drag knife tool is available for special materials of the sign making industry.

Oscillating knife cutting machine cutting materials as follows:corrugated cardboard,grey cardboard,coated paper, PVC, PET,PP, acrylic,glass fabric,leather, eva foam,rubber, etc


Tool head (optional)

oscillating cutting machine part

Infrared cross location

oscillating cutting machine kit (2)

Operation panel

Loading device


Digital Cutting Machine

CNC Digital Knife Cutter Technical Data

Technical indicators parameter
Model iGK-1625(Size can be customized)
Working Size 2500(L)*1600mm(W)
Dimensions 3200*2300*1200mm(L*W*H)
Machine body Welded high strength integrated bed
Platform Aerospace aluminum vacuum adsorption platform
Platform adsorption material 4mm felt
Tool Vibrating knife
Cutting speed 200-2600mm/s
Translatory velocity 500-2800mm/s
Cutting thickness 0.1-40mm(The actual materials shall prevail)
Cutting accuracy 0.05mm(The actual materials shall prevail)
Operating system Zhongrui
Vacuum pump 9KW vacuum pump
Drive part Taiwan straight square rail and rack
Miscellaneous function Cross red light location
Motor drive Full servo motor drive
Electric device Chint/Omron
Voltage AC220V/380V,50Hz
Weight 1500KG
Can be matched with knives Vibrating knives, round knives, punching knives,
pneumatic knives, multi-layer knives,
supporting knives, half cutters, bevel cutters, milling cutters, etc.

CNC Digital Knife Cutting Machine Application


CNC digital knife cutting machine are widely used in industries such as textile manufacturing, upholstery, packaging, automotive, and signage. They offer the advantages of high precision, versatility, and automation, allowing for complex cutting patterns and designs. The CNC control system ensures repeatability and consistency in the cutting process, making these machines valuable tools in modern production environments.

Application Materials:


Top apps include:

> Used for cutting leather, gasket, PP, PE, EVA, PTFE, ETFE, carpet, carton, wood, MDF, PVC, acrylic, cardboard, rubber, corrugated carton, foam, leather, composite materials, cardboard, corrugated board, honeycomb paper, plastic film, fiber paper, plastic box, resilient glue, rubber cloth, etc.

> Widely used in sign graphics, digital printing, packaging, automobiles, cruise ships, exhibition tools, sign production, gasket materials, crafts and other industries.

Vibration Knife Cutting application
Oscillating Tangential Knife application 1
Knife Cutting Machines application-4

Oscillating Cutting Machine Feature

  • 1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;
  • 2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;
  • 3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
  • 4. Digital cutting machine was designed easy to install, set-up and operate;
  • 5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;
  • 6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
  • 7 Automatic feed cutting machine, it is suitable for coil automatic cutting, automatic feeding, continuous cropping is suitable for batch processing products.
  • 8 CCD visual identification cutting machine can automatic identification material flaws, automatic super typesetting, contrast artificial typesetting save material by more than 10%.
