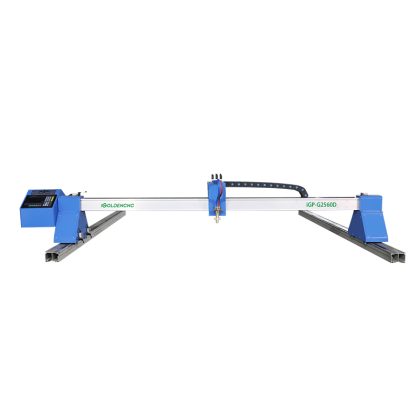

Double-Track Portable Plasma Flame Cutting Machine
iGP-G2560D
This Portable Gantry CNC Plasma and Flame Cutting Machine: Features a dual-side drive and dual-track design, ensuring stable operation with a compact and highly automated system.Cutting Support: Supports both flame and plasma cutting, offering versatility for various cutting needs.
Category: CNC Plasma Cutting Machine >> Portable Plasma Cutter
Response time: within 1 hour
Supply capacity: 300 sets/month
Price Range: $2000-$4000
Description
Double Track Portable CNC Plasma/Flame Cutter
A double-track portable plasma flame cutting machine is a specialized tool designed for cutting metal using a combination of plasma and flame technologies.It specially used for metal sheet cutting, economical price, intelligent operation and maintenance. Programmable single or batch cutting any plane complex graphics, support flame, plasma cutting, the overall equipment covers a small area, light and easy to move, suitable for indoor and outdoor cutting.
The double-track system allows for increased stability and accuracy during cutting operations, ensuring smooth and precise cuts along the designated paths. This design also enables simultaneous cutting on two separate tracks for enhanced efficiency.

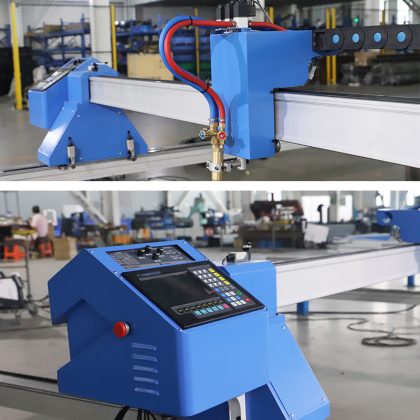

Portable cnc plasma cutter Details
Plasma cutting head
Fangling control system
Huayuan plasma source
Guide rail
Product Parameter
| Model | iGP-G2560D |
| Length of guide | 6500mm |
| Beam length | 3000mm |
| Effective cutting width | 2500mm |
| Effective cutting length | 6000mm |
| Fast return speed | 4000mm/min |
| Cutting positioning accuracy | ±1mm/1000mm |
| Cutting material | Metal |
| The flame cuts the air source | Oxygen, acetylene (propane) |
| Cutting torch lift distance | ≥100mm |
| Voltage | 220V±10%/60Hz |
| Work environment | Temperature: 0-50 ° C, humidity: ≤ 90% No condensation |
| Major Dispositions | |
| Flame single cutting torch | A set |
| Track | Aluminium alloy |
| Baseplate | baseplate |
| Way to install | Fixed installation |
| Control system | Fangling F2100B |
| Motor | Stepping motor |
| Programming software | StarCam |
| Torch holder | Yes |
| Plasma communication interface | 标配 |
| Arc voltage regulator | Fangling 1620 |
Key Features
- Dual Track System: Allows for more efficient cutting by utilizing two tracks, enhancing speed and precision.
- Portability: Designed to be lightweight and easy to transport, making it suitable for on-site cutting tasks.
- Versatile Cutting: Capable of cutting various metal types and thicknesses, from thin sheets to thicker materials.
- Plasma and Flame Cutting: Combines the speed of plasma cutting with the depth of flame cutting for different applications.
- User-Friendly Controls: Often equipped with intuitive controls for ease of operation, including digital displays and programmable settings.
CNC Plasma Cutter Application
CNC plasma cutters are versatile machines that can be used to cut a wide range of materials, including steel, stainless steel, aluminum, copper, and other conductive metals. They are commonly used in metal fabrication, automotive repair, and other industries where precise and efficient cutting is required.
- Advertising industry: advertising signs, logo production, decoration products, advertising and production of various kinds of metal materials.
- Metal industry: applicable to steel, carbon steel, stainless steel, alloy steel, spring steel, copper, aluminum, gold, silver, titanium and other sheet metal, tubes.
Portable CNC Cutting Machine
CNC plasma cutter is a machine that uses a plasma torch to cut metal materials with precision and speed. The CNC aspect of the machine means that the cutting process is automated and controlled by software, allowing for accurate and repeatable cuts.It is designed to be easily transportable and can be taken to job sites or moved around a workshop as needed.
FQA
When you are going to use iGP-P to cutting the metal plate, follow these steps: a. Fix the track by bolts beside the metal plate that needs to be cut. b. Assemble the CNC drive unit on the track and then assemble the cross bar on the CNC drive unit. (Installation method can be seen in the video) c. Assemble the THC (torch height control). (Installation method can be seen in the video) d. Assemble the cutting torch (flame cutting torch or plasma cutting torch) on THC.
The warranty period is 2 years for the Protablr CNC torch machine. When you need to replace the wearing parts of cheap CNC machine, we will provide them at the agent price. If there are any problems during the warranty period, we will replace the main parts free of charge. The protable CNC plasma for sale software provides free lifetime update service. 24-hour online technical support (phone, email, Teamviewer, Whatsapp, Skype, WeChat, QQ, etc.) We provide English training videos and user manuals for crossbow plasma machine sale installation and operation, etc. We can also provide technical guidance remotely. Free training at the iGODLENCNC factory. The engineer can repair the Protable CNC Plasma overseas.
Step 1: PVC film packing, which can ensure that the protable CNC plasma cutter is completely covered, avoiding water and rust. Step 2: Wooden box packing, with a fixed template on the outermost layer. Step 3: All of the packing are inspected carefully by QC before delivery.
If your budget is relatively small, but you want to have an advanced CNC plasma cutter, then this Protable CNC plasma cutter is your best choice.It is offers a flexible solution, it has all advantages of a CNC portable cutting machine.The The guide rail of this Protable CNC plasma cutter is made of aluminum material at one time, so it has a stable structure, wear resistance, no deformation, anti-shake, can withstand 250kg, and has a long service life. This Protable CNC plasma cutter is easy to assemble and disassemble, can be easily carried anywhere, and it can also be configured as an oxy-fuel cutting machine or a plasma cutting machine.Whether you are a dealer, a busy workshop owner, or a metal artist, this lightweight yet reliable unit will exceed your expectations.If you want to know more about this crossbow portable cnc plasma cutting machine price,just contact me.
