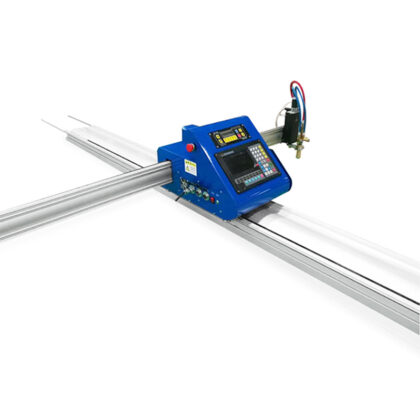

Portable CNC Plasma Cutter for Sheet Metal Manufacturing

Item No.: iGP-P

The portable CNC plasma cutter for sale machine has a compact and microstructure. The horizontal and vertical rails of the whole machine are made of hard aluminium alloy, which reduces the weight of the equipment, so as to achieve the characteristics of easy movement, compact and flexible operation. It is an ideal upgrade product to replace handheld flame-cutting equipment, handheld plasma cutting devices, profiling cutting machines and semi-automatic cutting carts. The use is as flexible and convenient as the cutting trolley, and it can be moved at will without occupying a fixed site. It is a CNC equipment specially used for sheet metal blanking.

Category: CNC Plasma Cutter >> Portable Plasma Cutter
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $1100-$1400

Get Latest Price:

Description

Who is it for?

The portable CNC plasma cutter for sale machine is suitable for indoor and outdoor cutting and can cut various metal materials according to any graphics. The roughness of the cut can reach 25, and the cut surface after cutting does not need to be surface processed. It has the advantages of the high degree of automation, convenient use, high precision, high reliability, low price, and easy operation and maintenance.

This equipment is widely used in machine tool manufacturing, petrochemical equipment, light industrial machinery, shipbuilding, pressure vessels, engineering machinery, mining machinery, electric power, bridge construction, aerospace, steel structures, boilers, radiators, and other industries.

What makes it unique?

The iGP-P series portable CNC plasma cutter for sale, which is popular among professional users, is suitable for large sheet metal processors and users whose processing sites are not fixed.

>It is free to cut without the limitation of sheet size;
>A new generation of lifting body, increase the upper limit;
>Thickened and widened guide rail, wear-resistant without deformation;
>Easy to operate, quickly remove obstacles, which is conducive to learning;
>Supported by industry leader iGOLDENCNC.

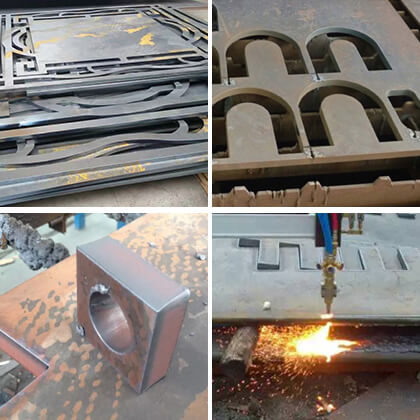

Applications of Portable CNC Plasma Cutter for Sale

Cutting for Stainless Steel

Cutting for Carbon Steel

Cutting for Copper

Cutting for Aluminum

Cutting for Metal Screen

Cutting for Metal Shelf

Cutting for Outdoor Desk

Cutting for Metal Wall

Cutting Method Flame & Plasma
Lateral Distance 2200mm
Longitudinal Distance 3500mm
Effective Cutting Width 1600mm
Effective Cutting Length 3000mm
Lifting Device Stroke 105mm
Gas Pressure 0.04-0.1MPa
Oxygen Purity >99.6%
Auxiliary Gas Oxygen + Fuel Gas (Acetylene, Propane)
Oxygen Pressure 0.6-1.0MPa
Flame Cutting Thickness 5-150mm
Plasma Cutting Thickness Up to Plasma Power
Repositioning Accuracy 0.2mm
Max. Running Speed 8000mm/min
Flame Cutting Speed 100-7000mm/min
Plasma Cutting Speed 50-900mm/min
Voltage AC220±10v/50Hz
Input Power 0.5KW
Working Temperature -15℃~50℃
Total Weight 130KG

Features of Portable CNC Plasma Cutter for Sale

Internal Structure

The wiring of the whole machine is routed in accordance with the standard requirements, and all interfaces are set with accurate identification, which is convenient for maintenance.
The plug version is equipped with a 4-pin plasma interface.
Equipped with offline switch and emergency stop switch, it is convenient for the cutting gun to find the reference point, improve efficiency and ensure production safety.

Horizontal Structure

The beam is bent with reinforced stainless steel plate, which has lightweight, low inertia and strong rigidity, ensuring the cutting quality.
The transmission part adopts tension spring, rack and pinion transmission, and stepping motor drive to ensure operational accuracy and stability.
The use of heavy-duty V-shaped bearings with a diameter of 40mm, each bearing 200kg, effectively improve the service life of the equipment.

Flame Device

The air circuit adopts Taiwan Airtac solenoid valve to ensure safe use and service life.
High-temperature resistant hoses are used in the control part of the line to ensure line safety.
The special flame insulation board protects the gas path.

Automatic Arc Voltage Height Regulator

The automatic height adjustment system of the torch controlled by closed-loop PWM is used to keep the height of the torch to the steel plate constant during the plasma cutting process.
Control the height of the cutting torch during the cutting process by detecting changes in the arc voltage.
Ensure cutting quality and work efficiency.

Advanced Plasma Power Supply

It adopts China’s well-known industrial brand Huayuan industrial plasma power supply.
Precise cutting, no burrs, and small bevel.
Energy-saving, low consumption, more stable performance.

The Characteristics of Plasma Cutting and Flame Cutting

Plasma cutting:
>The portable plasma cutting machine is suitable for precision cutting of carbon steel, stainless steel and non-ferrous metal plates of various thicknesses;
>CNC plasma cutting machine can cut high-quality stainless steel, carbon steel and non-ferrous metals with a thickness of 1.0-70mm;
>Plasma cutting can be equipped with water bed for underwater or shallow water surface cutting, which can greatly reduce the environmental pollution such as smoke, arc, harmful gas, noise and so on generated by plasma cutting, and has a good environmental protection effect. You can also choose dry dust removal and purification equipment;
>Air, oxygen, etc. are used for plasma cutting.

Flame cutting:
>CNC portable flame cutting is suitable for precision cutting of carbon steel plates of various thicknesses;
>The flame can cut 5-150mm carbon steel with commercial quality;
>Flame cutting is used in conjunction with oxygen + gas, which can be (acetylene industrial propane liquefied gas).

Options of Portable CNC Plasma Cutter for Sale

Plasma Power Supply

Huayuan brand is standard.

USA Hypertherm is optioned.

Plasma Power

63A/100A/120A/160A/200A is optioned as requirements.

For the plasma cutter, the price is different according to the function and configuration. Please contact us for more details.

It depend on the material thickness you want to processing and the running frequency of the machine. Please let us know which material do you want to process and the thickness.

The plasma cutting machine is only for metal sheet, such as stainless steel, carbon steel, copper, aluminum, iron, galvanized, etc..
