Hand-held Laser Cleaning Machine
Item No.: iGCL
Laser cleaning machine is a new generation of high-tech products for surface treatment. It is green and environmentally friendly.
It can evaporate or peel off the dirt, rust or coating on the surface, and effectively remove the attachments or surface coatings on the cleaning object at high speed to achieve the cleaning object. Process. The laser cleaner is easy to install, control and automate. It is easy to operate and can remove resin oil stains, stains, dirt, glue, rust, decoating, deplating and paint on the surface of objects.
Category: Laser Machine>>Laser Cleaner
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $5000-$12000
Description
Who is fiber laser cleaning machine for?
iGCL series laser cleaning machine is the new generation of safe, high efficiency, energy saving, environment-friendly metal laser cleaning equipment, using handheld swing cleaning head, touch screen and button control, combined with the advanced integrated control system, the precision CNC fiber laser cleaning machine is assembled. It meets the cleaning requirements of complex shapes and fine positioning in the industrial processing field, and achieves higher cleanliness cleaning effects and lower overall cost production benefits.
Hot applications include:
> Derusting the metal surface; > Surface paint removal treatment; > Surface resin, oil stains, stains, and dirt cleaning; > Surface plating and coating removal; > Pretreatment of welding surface/spraying surface;
> Removal of dust and attachments on the surface of the stone statue; > Clean up the residue of rubber mold.
Mainly used in automobile manufacturing, mechanical processing, electronic processing, cultural relics restoration, mold industry, shipbuilding industry, food processing industry, petrochemical industry processing, petrochemical industry and other industries.
What makes it unique?
- Non-contact is cleaning, does not damage the parts substrate ;
- Precise cleaning, can achieve selective cleaning of precise position and precise size ;
- No need for any chemical cleaning fluid, no consumables, safe and environmentally friendly ;
- Simple operation, just power on, can be hand-held with the robot to achieve automatic cleaning ;
- High cleaning efficiency, save time ;
- The laser cleaning system is stable and requires almost no maintenance.
- Fiber laser cleaning machine are also environmentally friendly since they do not use chemicals or produce hazardous waste. This makes them a sustainable cleaning solution that companies can use to reduce their environmental impact.
>1000w/1500w/2000w as your requirements;
>High precision, perfect cleaning result;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.
Applications of Laser Cleaning Machine
Panel paint removal
Gear decontamination
High-speed rail derusting
Weld cleaning
Derusting parts
Parts in addition to oxide film
Mold degreasing
Rotor blade rust removal
| Laser Wavelength | 1064nm |
| Laser Power | 1000w/ 1500w/ 2000w |
| Fiber Length | 8-10m (15mOptioned) |
| Scanning Width | 10-80mm |
| Cast iron | Severely corroded 0.08mm |
| Carbon steel plate | Moderate rust 0.5mm |
| Stainless steel | Surface oil, slight rust |
| Mold copper gear | Moderately oily, with iron filings attached |
| Voltage | 220V, 50/60Hz |
| Cooling Method | Water-cooling |
| Water-cooling Temperature | 5-45℃ |
Features of Laser Cleaning Machine
Green Environmental protection
High cleaning cleanliness It can accurately locate and clean contact cleaning, protect the surface of brittle materials, and effectively remove micron-level pollution particles; green and environmentally friendly, no consumables are required;
This not only means that laser cleaning is effective, but the cleaning process is environmentally friendly. In addition, it does not use chemical cleaning agents, thus avoiding the damage caused by chemical corrosion to the material.

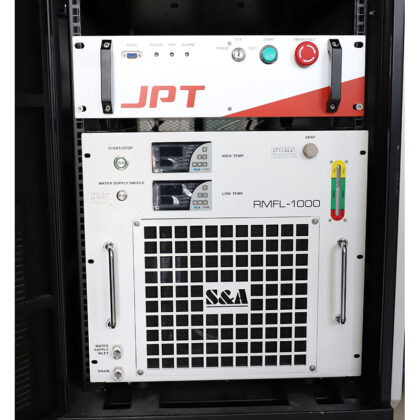

Laser Source
The laser adopts water-cooled heat dissipation and rack-mounted chassis design.
It has many advantages such as high electro-optical conversion efficiency, low energy consumption, compact structure, adjustment-free maintenance, and easy integration for customers. It is industrial laser welding and other Ideal light source for application.
S&A Chiller
- The cooling capacity is up to 1400W, and environmentally friendly refrigerants can be used;
- Small size, long life and durable, easy to operate;
- The temperature control accuracy can reach ±0.3C°;
- The intelligent thermostat has two temperature control modes, which are suitable for different use occasions; it has a variety of settings and fault display functions;
- With multiple alarm protection functions
Touch Screen Setting Panel
Options of Laser Cleaning Machine
Laser Protective Glasses
Laser protective glasses can prevent or reduce laser damage to human eyes. Laser goggles are highly efficient and safe goggles, which are comfortable, beautiful, safe and reliable. Its optical safety performance fully complies with the GJB1762-93 standard. Laser goggles include reflection type and absorption type, which can completely protect specific wavelength laser and glare. It is suitable for various laser devices with visible light transmittance exceeding 70% and optical density above 5.0.
Rotary Connector
Surface marking, cylindrical marking, and rotating fixtures to complete high-precision rotary marking, one machine with multiple functions, meets diverse needs and saves costs.
For the laser cleaner, the price is different according to the configuration. Please contact us for more details.
It depend on the material you want to processing and the running frequency of the machine. Please let us know which material do you want to process.
Mainly used in automobile manufacturing, mechanical processing, electronic processing, cultural relics restoration, mold industry, shipbuilding industry, food processing industry, petrochemical industry processing, petrochemical industry and other industries.
