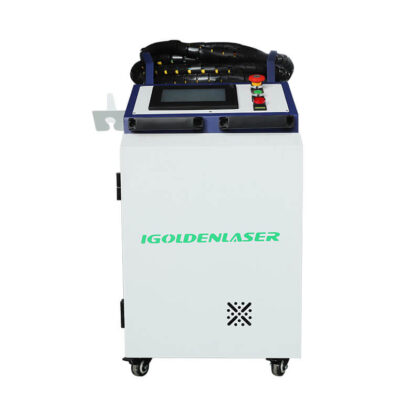

handheld laser cleaning machine

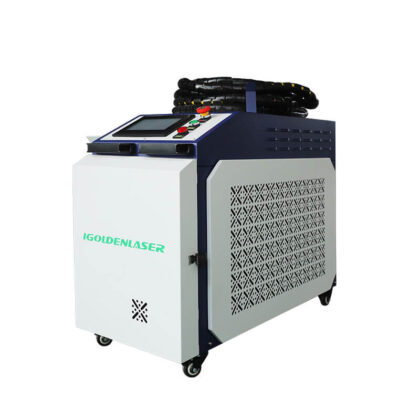

hand held laser rust removal machine

Handheld Portable Laser Cleaning Machine for Rust Removal

 iGCL series laser cleaning machine is the new generation of safe, high efficiency, energy saving, environment-friendly metal laser cleaning equipment, using handheld swing cleaning head, touch screen and button control, combined with the advanced integrated control system, the precision CNC fiber laser cleaning machine is assembled.

Category: Laser Machine>>Laser Cleaner
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $5000-$8000

Get Latest Price:

Description

Portable Laser Cleaning Machine

A portable laser cleaning machine is a type of laser cleaning equipment that is designed to be lightweight and compact, making it easy to move and transport. These machines typically use a handheld laser cleaning gun that emits a high-powered laser beam to remove contaminants, rust, paint, and other surface coatings from a variety of materials, including metal, stone, and plastics. Portable laser cleaning machines are commonly used in industrial applications, such as cleaning manufacturing equipment, preparing surfaces for welding or painting, and maintaining machinery. They are also used in conservation and restoration projects for cleaning historical artifacts and monuments.



Portable laser rust removal machine customized appearance and power: 1000w 2000w 3000w .

Handheld laser cleaning machine price

Price Range: $6000.00 – $10000.00 ,Now the affordable portable handheld laser cleaning machine for sale at cost price.

rust removal laser machine
laser cleaning system
laser cleaning machine for metal
metal rust removal - laser cleaning machine

Hand-held cleaning laser head

hand held laser cleaning machine for rust removal
laser rust removal gun
laser rust removal gun

Technical Data

Laser parameters
Laser wavelength 1070nm
Max. laser output power 1000-2000W
Number of fiber outputs Single fiber
light mode Continuous
Fiber length 10m
Fiber bend radius 200mm
Power consumption of the whole machine <6kW
Machine power stability ±1%
Electricity demand 220V/50Hz
Range of working temperature 10—35℃
Laser water cooling temperature range 25-28℃
Cooling method Water cooling
Handheld laser cleaning head weight ≤1kg
Aiming and positioning Red light indication
Chiller parameters
Refrigerant R410A
Circulating water filtration accuracy 50um
power supply 220V/50Hz
Running noise <70dB
Range of working temperature 10-35℃
Automatic protection/alarm function Temperature, Flow, Level
Operating system
Laser head light output method 1D line scan
Laser scan width 0–300mm  Continuously adjustable
Depth of focus ≥10mm
Way of working Manual / Auto



One of the main advantages of portable laser cleaning machines is their mobility. They are designed to be lightweight and compact, making them easy to move and transport to different job sites. This is especially useful in situations where larger, stationary laser cleaning machines may not be practical or efficient.


Laser For Removing Rust Application


Laser cleaning machines have been used in many industries such as aviation, aerospace, rail transit, shipbuilding, automobile, electronic industry, and many more. It could be efficiently used for rust removal on bridges, and large metal facilities, such as stadiums, factories, and many other metal structures.

Application Materials:


Portable fiber laser cleaner rust removal laser cleaning machine is suitable for the precision machining of stainless steel, copper, aluminum and other materials. It has small thermal distortion and high processing precision. It has the characteristics of narrow pulse width and high peak power. Its compact structure, easy system integration.

Derusting parts
rust remover for cars

Laser Cleaning Machine Features:

◎Non-contact cleaning, without damaging the base part;

◎Precise cleaning, can achieve precise location, precise size selective cleaning;

◎Without any chemical cleaning solution, no supplies, safety and environmental protection;

◎The operation is simple, it can be hand-held or cooperated with a robot to realize automatic cleaning;

◎Ergonomic design, operation greatly reduced labor intensity;

◎High cleaning efficiency, save time;

◎The laser cleaning system is stable, almost no maintenance;

◎Optional mobile battery module;
