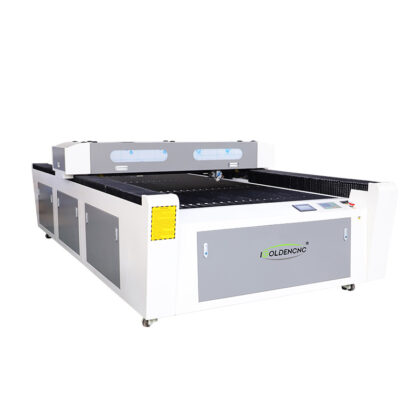

Mixed Laser Engraver Machine for Metal & Nonmetal

This CNC CO2 mixed cutting laser cutting machine is suitable for cutting metal and non-metal plates. It adopts a steel welding frame, which is stable, has good rigidity, and high dynamic response, ensuring that it will not be deformed for a long time.

Category: Laser Machine>>Laser Engraver
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $3650-$4950

Get Latest Price:


Laser Cutting Engraving Machine iGR-BM

The multi-function laser cutting head is suitable for cutting metal and non-metal materials. The fixed optical path compensation system ensures the consistency of the laser spot quality in the entire cutting area. The imported linear guide rail and lead screw conveying system have high rigidity, large transmission torque, eliminate vibration, and the accuracy is several times higher than that of the belt drive system.

The self-developed new generation of touch screen motion controllers is designed with touch screen software. The control system supports automatic focusing of metal cutting and non-metal processing, and can easily cut materials of various thicknesses with good results.


laser metal engraving machine

Engraving laser machine details

laser engraving

CO2 Laser Cutting Machine Features:

◎High processing efficiency, 10 to 15 times that of manual engraving; high precision, low cost, and good printing effect;

◎The optimized design of the mechanical structure and the smallest overall size of the whole machine not only saves your precious space, but also the structure should not be deformed and the cutting precision is high;

◎Taiwan square linear guide, long life;

◎The use of patented technology makes the engraving effect of the rubber plate better, and it is not easy to burn;

◎Genuine laser engraving software, powerful; engraving and cutting can be carried out at the same time.

Laser Engraving Machines Application

> Handicraft industry: exquisite patterns and characters are carved on wood, bamboo chips, ivory, bones, leather, marble, shells and other materials;

> Advertising industry: mainly used for two-color plate engraving, acrylic engraving and cutting, sign engraving, crystal, trophy engraving, license engraving, etc.;

> Leather garment processing industry: complex text and graphic engraving, cutting, engraving and hollowing out on synthetic leather, artificial leather, fabric, and fur; cutting, cutting, Sculpting, beyond fashion, showing individuality;

> Model industry: making sand table building models, aircraft models;

> Packaging industry: engraving and printing rubber sheet, plastic sheet, double-layer sheet, die-cutting blade, etc.;

> Other industries: engraving marks on decorative materials such as marble, granite, glass, crystal, paper cutting, greeting cards and other paper craft cutting.

laser engraving machine for metal
wood laser engraving machine
acrylic laser engraving machine
laser engraving machine for metal

Laser Engraver Machine Parameter

Model iGR-BM-1325
Working size 1300*2500mm
Laser type Sealed CO2 laser tube(RECI Brand)
Laser power W6 130W RECI laser tube
Cutting speed 0-3,000mm/min due to different material
Position accuracy ±0.05mm
Work platform Stainless sheet and knife table
Operating temperature 0-45 degree
Transmission High precision ball-screw system
Minimum shaping character English 1*1mm
Graphic format supported BMP, PLT, DST, DXF, and AI
Driving system stepper motor
Cooling mode Industrial Chiller
Auxiliary equipment Exhaust-fan, air-exhaust pipe
Controlling software Off-computer controlling system
Compatible software Coreldraw AutoCAD Photoshop
Working voltage AC110-220V ±10%/10A,50-60HZ
Power <2000W
Weight 1200KGS

What is Laser mixed Cutting Machine?

The carbon dioxide laser is a gas molecular laser, the working substance is CO2 gas, and the auxiliary gas is nitrogen, helium, xenon and hydrogen. Since the energy conversion efficiency of this laser is as high as 25%, it is often used as a laser with high power output. The wavelength of carbon dioxide laser is 10.6 microns. It is impossible to see infrared light, has good stability, and is widely used.

  Using the most advanced DSP control technology in the world, the first-in-class continuous and fast curve cutting function and the shortest processing path optimization function greatly improve the work efficiency. For the whole process of engraving, light attenuation compensation is automatically performed to ensure consistent cutting in different areas. The design of fast cutting control software and the buffer function during high-speed movement can improve production efficiency.

Laser Engraving Machine Advantages

With multi-functional detail design, it is more humane, flexible and convenient.Adopting stable laser device, who’s the maintenance cost is low. With the features of compact design and simple structure, it is more convenient to operate. Imported high-precision ball screws and guides are adopted for stable driving and high working accuracy.

How to choose the right laser engraver machine?

1.Material to be carved:

Determine the type of material to be engraved. At present, the CNC laser engraving machine on the market can be roughly divided into non-metal laser engraving machine and metal laser engraving machine. The former is specially used for engraving and cutting of non-metallic materials, while the latter can be used for metal materials. Processing.

2.Laser power:

Choose the appropriate laser power according to the material to be processed. For some materials, such as acrylic, two-colour plates, etc., high-power laser tubes are not required, but for some other materials, such as stone, wood and other harder materials, Higher power is required. The excellent working performance will require a power laser tube.

Click to show more.

  1. Working size:

Different applications require laser engraving machines with different working sizes. Generally, laser engraving machines of models 6040, 9060, 1290, 1390, 1490, 1610, 1612, 1812 can be used, for example, the working size of model 6040 is 600*400mm. Different Work scale and different prices. For example:

1) Rubber pad, rubber sheet, carton board: most laser engraving machines can be used to engrave on rubber sheets. The material does not require some special and fast machines, so it is recommended to use a laser engraving machine suitable for engraving rubber sheets, which is cheap, The investment is small, but the return is fast.

2) Bamboo, greeting cards, paper-cut gifts, wooden crafts, small ornaments, carved wooden boxes, wine boxes, bamboo tubes, tea tubes, crystal glass ornaments, acrylic crafts, etc., choose small machines, such as 9060 laser engraving machine (900X600mm), the price is extremely high Competitive, high precision, equipped with lifting platform and free replacement platform, can be widely used in various materials and profiles.

3) Acrylic plate: Most laser engraving machines can be used to cut acrylic plates, however, it is recommended to use a dedicated laser cutting machine. Because the laser cutting machine is optimized for laser cutting and has excellent cutting results. Usually: 60W laser engraver can Cut 8-10mm acrylic. 80w laser engraver can cut 8-15mm acrylic.

4) Clothing, leather: Choose a suitable laser engraving machine, which has a fast cutting speed and is equipped with a honeycomb cutting platform.

  1. Engraving speed;

On the premise of excellent engraving effect, pay attention to the working speed of the machine. Only when you produce more products in a short time, you can create higher profits.

  1. Engraving accuracy;

The biggest difference between a laser engraving machine and traditional engraving equipment with manual engraving is the engraving accuracy. For fine project drawings, the engraving accuracy requirements are relatively high.

  1. Machine quality;

1) Stepper motor: It will affect the engraving accuracy of the CNC laser engraving machine. There are different types of stepper motors available, including imported ones, household ones, high-quality ones and inferior ones, etc.

2) Laser lens: It affects the power of the laser engraving machine. It can be divided into imported lenses, domestic lenses, and domestic lenses can be divided into imported materials and domestic materials. The price difference is very large, and the work effect and service life are also in this way.

3) Laser tube: the heart of laser engraving machines. Most household laser engraving machines use domestic laser tubes.

4) Machine tools: When selecting, pay special attention to the quality of the machine, especially the thickness and strength of the structure.

What is Laser Engraving And Cutting Machine?

The laser machine is the general term for laser engraving machines, laser cutting machines, and laser marking machines. The laser machine uses its high-temperature working principle to act on the surface of the processed material, and at the same time draws patterns and texts required by customers based on the graphics input into the machine.

How to Buy a laser engrave machine?

  • Inquiry. Feel free to tell us what material you want, what is your max working size, and what product you want to do. The budget is also welcome.
  • Free Quotation provided. We will send our quotation sheet with machine configuration, photos, videos, and prices to you according to your request.
  • Launch the order. Your company will arrange the deposit, and we start the machine production from 3D design, machine body welding, machining, painting spare parts preparing, manufacture, and inspection.
  • Testing sample video and delivery. After our manufacture and inspection, we will make a final video of the machine working for you. After the confirmation, the machine will be shipped by sea through my or your agent.
  • After-sale service. We will provide a video teaching program to tell the customer how to use or install our machine. And my service team will 7*24 hours online to answer customer questions.
  • Feedback. We are expecting feedback from our customers. Please tell us how you feel about machine quality and service. If you have more ideas to help us improve, that will be very appreciated.
