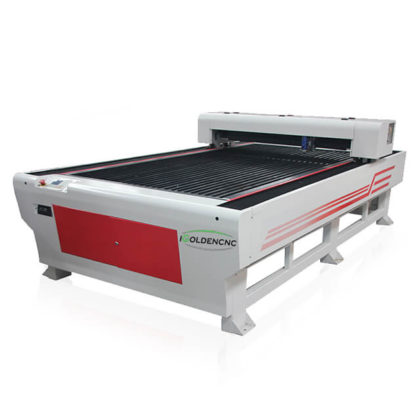

CO2 Laser Cutting Machine for Metal and Nonmetal

Item No:: iGL-BM

The affordable CO2 laser cutting machine is distinguishing from the flatbed engraving and cutting machine for nonmetal material, also called CO2 laser engraver. The best CO2 laser engraver is widely used in signs, arts, crafts, gifts, shoes, toys, garments, packaging and paper industry.

Category: Laser Machine>>Laser Engraver
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $3650-$4950

Get Latest Price:

Description

Who is it for?

The most popular, affordable flatbed CO2 laser cutting machine, perfect for non-metal material engraving and cutting processing, the excellent components offers the high precision that iGOLDENCNC products are known for, combined with a competitive set of configurations.

Hot applications is engraving and cutting for Wood, acrylic, stone, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass, and other nonmetal materials.

What makes it unique?

With wide range of application, the iGL-B series CO2 laser cutting machine is suitable for different requirements with different working area and different power.

>60w/80w/100w/130w/150w/200w as your requirements;
>High precision, perfect engraving result;
>Honey comb table and knife table for optioned;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.

Engraving on Plexiglass

Engraving on Wood

Engraving on Shell

Engraving on Rubber

Engraving on Acrylic

Engraving on Stone

Engraving on Glass

Engraving on Bottle

Positioning Accuracy 0.05mm
Repeat Positioning Accuracy 0.02mm
Laser Power 60W/80W/100W/130W/150W/200W
Scanning Precision 2500DPI
Max. Speed 24000mm/min
Min. Character English Letter: 1*1mm
Cooling System Water-cooling
Power Supply AC110V/220V±10%,50/60Hz
Working Area 1300*900mm
Dimensions 1820*1310*1070mm
Packing Size 2030*1600*1350mm
N.W/G.W 800kg/1000kg

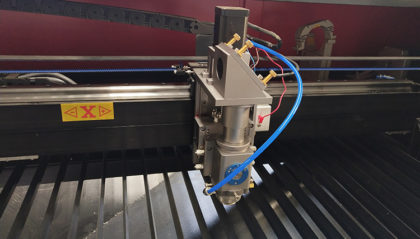

Auto-focusing Laser Head

The laser head can be adjusted automatically with higher precision, saving much time than focusing by hand.

Electronic Lifting Screw

The height of worktable can be adjusted automatically within 20mm, which can satisfy different requirements of cutting different thickness materials.

Advanced Optical Lens from U.S II-VI

The advanced optical lens can improve 14% beam transmission than other optics, which will ensure the machine quality and extend the service life of optical system.

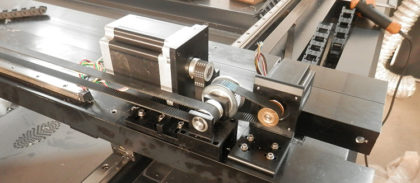

Advanced Transmission System with High Precision

Japan OMRON Electronic Components

More stable and faster.

Taiwan HIWIN Guide Rails

Smoothly and higher precision.

LEADSHINE Stepper Motor

Low noise, low vibration and better acceleration performance.

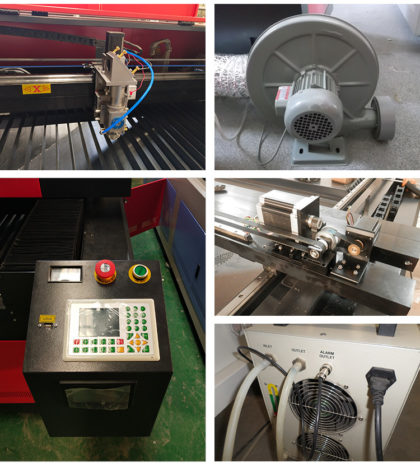

Worktable Structure

Both knife blade worktable and honeycomb worktable can be chosed.

Laser Protective Glasses

Water-cooled Device

For the CO2 laser cutter, the price is different according to the function and configuration. Please contact us for more details.

It depend on the material thickness you want to processing and the running frequency of the machine. Please let us know which material do you want to process and the thickness.

Hot applications is engraving and cutting for Wood, acrylic, stone, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass, and other nonmetal materials.
