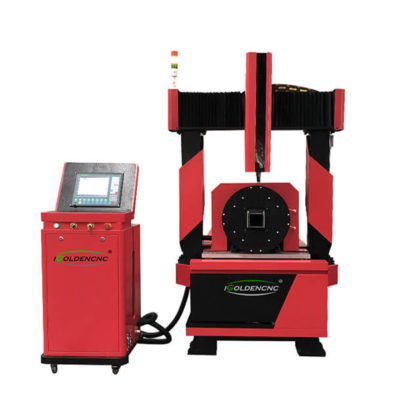

Square Tube CNC Cutting Machine with Plasma and Flame

Item No.: iGP-S

Intersecting square tube CNC cutting machine is an automatic metal tube cutting equipment, suitable for cutting and perforating various carbon steel, stainless steel, iron and other non-ferrous metal tubes. Standard equipped with two modes of plasma cutting and flame cutting, integrated structure, bilateral drive, fast cutting speed, low inertia and stable operation.

Category: CNC Plasma Cutter >> CNC Plasma Table
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $4700-$5200

Get Latest Price:

Description

Who is it for?

The intersecting line square tube CNC cutting machine is the latest type of metal square tube cutting machine. It is the perfect choice for professional CNC users. It saves time and labour costs. This is the characteristic of iGOLDENCNC products and combines a set of competitive configurations.

It is widely used in the construction industry, chemical industry, marine shipbuilding, mechanical engineering, metallurgical industry, electric power industry, pressure vessels, steel bridges, petroleum pipelines, amusement equipment, refrigeration and heat exchange, automobile manufacturing, etc.

What makes it unique?

The iGP-S series tube CNC cutting machine, which is popular among professional users, is suitable for professional processors dedicated to square tube processing.

>Aviation aluminium swingarm, lightweight and small inertia;
>API welding process standard, support AWS standard;
>Fast drawing efficiency and high cutting efficiency;
>Easy to operate, quickly remove obstacles, which is conducive to learning;
>Supported by industry leader iGOLDENCNC.

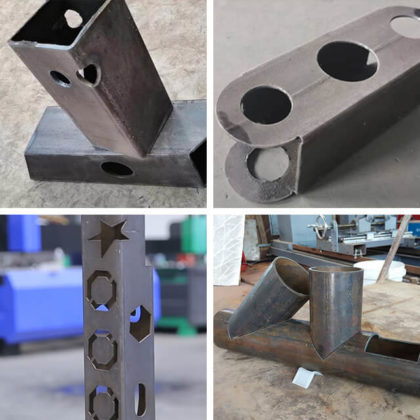

Applications of Tube CNC Cutting Machine

Cutting for Metal Logo

Cutting for Metal Furniture

Cutting for Metal Window

Cutting for Metal Rail

Cutting for Stainless Steel

Cutting for Carbon Steel

Cutting for Iron

Cutting for Copper

Pipe Size 150*150*8000mm
Pipe Diameter 30-250mm(Optioned)
Pipe Wall Thickness 3-25mm
Max. Speed of Chuck 1-30r/min
Positioning Accuracy 0.5mm
Repositioning Accuracy 0.2mm
Max. Running Speed 12000mm/min
Max. Cutting Speed 6000mm/min

Features of Tube CNC Cutting Machine

Heavy-duty Machine Body

It is welded in sections by rectangular pipes with a thickness of 6mm, milled by a large gantry and five-axis machining centre, and all the basic installation holes are accurately drilled at one time. The bed is tempered and annealed at high temperature.
Eliminate internal stress, higher toughness, tensile strength and dimensional stability. Effectively improve the accuracy of the bed and reduce the machining error of the workpiece. Increase the resistance and stability of the guide rail.
Reduce the loss of equipment in use. The precision of the machine tool can be maintained for a long time without deformation for 10 years. The equipment has good stability and reduces the machining error caused by the vibration of the bed.

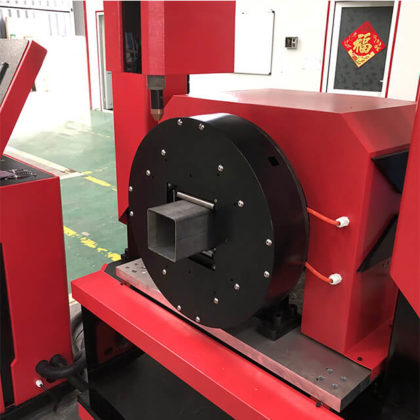

Support Base

500#three-jaw pneumatic chuck with 24KG/M longitudinal guide rail.
The precision is higher, the cutting quality is better, and the maximum load is 2000kg.
Improve the processing accuracy and make the equipment run stably for a long time.

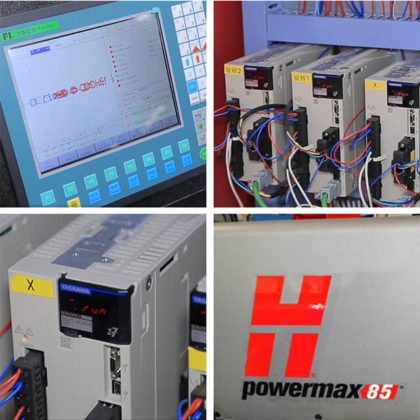

Advanced Plasma Power Supply

It adopts China’s well-known industrial brand Huayuan industrial plasma power supply.
Precise cutting, no burrs, and small bevel.
Energy-saving, low consumption, more stable performance.

High-precision Transmission System

Ensure the stable operation of the equipment, avoid the influence of external environments such as voltage and temperature changes, improve transmission accuracy and life, reduce failure rate and maintenance costs, and ensure the safety of operators.

Taiwan HIWIN Rails Rack

Japan YASKAWA Servo Motor

Japan SHIMPO Reducer

Automatic Arc Voltage Height Regulator

The automatic height adjustment system of the torch controlled by closed-loop PWM is used to keep the height of the torch to the steel plate constant during the plasma cutting process.
Control the height of the cutting torch during the cutting process by detecting changes in the arc voltage.
Ensure cutting quality and work efficiency.

TubeMaster Professional CNC Nesting Software

It is used for the combination of orthogonal, oblique, and eccentric intersecting hole curves at any position of the pipe fittings to be converted into files through G code, equipped with USB interface.
Improve production efficiency and cutting quality to ensure stable operation of the machine.

Anti-interference Function

The system adopts the anti-magnetic structure, which can effectively shield plasma interference and various magnetoelectric interference.

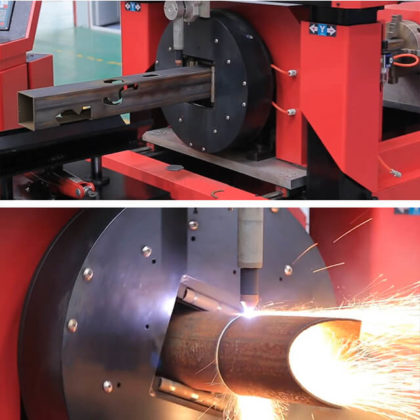

Cutting Function

With the function of automatic compensation for slitting, continuous cutting after power failure, continuous retreat, breakpoint recovery, positioning cutting function.

Offline Cutting Function

The device can be operated offline without computer support.

Alarm Function

Automatic diagnosis and automatic alarm of working process failure.

Options of Tube CNC Cutting Machine

Plasma Power Supply

Huayuan brand is standard.

USA Hypertherm is optioned.

Plasma Power

63A/100A/120A/160A/200A is optioned as requirements.

For the plasma cutter, the price is different according to the function and configuration. Please contact us for more details.

It depend on the material thickness you want to processing and the running frequency of the machine. Please let us know which material do you want to process and the thickness.

The plasma cutting machine is only for metal sheet, such as stainless steel, carbon steel, copper, aluminum, iron, galvanized, etc..
