ATC Nesting CNC Machine with Gang Drilling

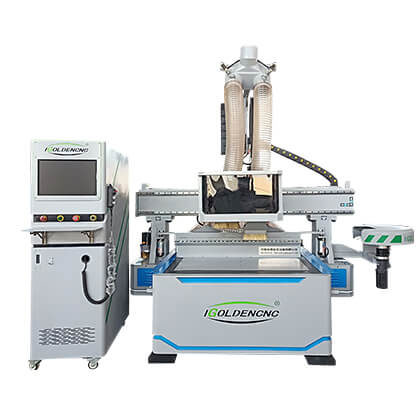

Automatic Cabinet Making CNC Machine

CNC Machine for Kitchen Cabinets Making

  • Brand : IGOLDEN CNC
  • Industry Name:ATC CNC Machine for Furniture Industry
  • Category: Furniture CNC Machine>>Door Making Machine
  • Response time: Within 1 hour
  • Supply Ability: 300 sets/month
  • Price Range: $19395-$21395
Get Latest Price:

Description

The most advanced, multi-function wood atc router cnc nesting machine with drilling bank, perfect for professional scaled furniture manufacturers, designed by iGOLDENCNC for changing tools automatically while working, combined with a competitive set of configurations.

This ATC heavy duty Router machine with a large working table uses very good-quality CNC parts. Therefore, it has the advantages of fast tool changing speed, high processing efficiency, good stability, etc.

furniture CNC cutting machine

Wood ATC Router CNC Nesting Machine Details

Nesting CNC Router Machine
Nesting CNC Router Machine
Automatic Cabinet Making CNC Machine

Wood Router Nesting CNC Machine Features and Advantages:

The tool bag is equipped with 8-24 cutters as standard, and the tool change time is only 5 seconds, to meet the processing needs of different processes, it is suitable for mass processing of complex products.

9kw High-power Air-cooled Automatic Tool Change Spindle.

To meet the processing requirements of various non-metallic materials, the drill pack adopts four vertical and five horizontal arrangements to realize the function of simultaneously drilling multiple holes.

Japan YASKAWA servo system, it has the advantages of higher precision and big torque.

Please notice that all the specifications can be designed follow to your own requirements.

The wood router nesting cnc machine used for panel furniture and board cabinet processing ,widely used in cutting ,drilling ,sloting ,milling etc .


CNC Furniture ATC Nesting Machine Parameter

Working area 1500*3000*200mm
Transmission Taiwan Helical rack and gear
Spindle 9KW HQD air cooled spindle
Vertical Drilling Head 5+4
Guide rails Taiwan PDF 25mm
Inverter FULING 11kw
Table structure Vacuum table
Vacuum pump 7.5KW
Motor Servo motor 1500w
Driver Servo Driver
Reducer Japan Shimpo
Control system Taiwan LNC
Dust collector 5.5kw
Spindle collets ER32
Lubrication Automatic
Tools sensor Automatic

What Should I Do If The Bearings Of The CNC Cutting Machine Are Not Easy To Use?
Insufficient lubrication of CNC bearings: Insufficient or improper lubricating oil may cause component scratches or severe bearing deformation. Precautions: Improve the lubrication system and regularly replenish or replace the lubricant appropriately. Improper bearing operation: Improper installation, operation or disassembly of the bearing may cause deformation or defect of the cage. Precautions: Use appropriate operating, installation and removal tools. Bearing external materials: Abrasive particle contamination and debris intrusion may cause wear, scratches and depressions on the INA bearing working surface. Precautions: Remove intrusive particles and debris, replace lubricants, and check the sealing system. Bearing eccentricity: Eccentricity, tilt or excessive load may cause geometric stress concentration or surface flaking. Precautions: Use precision machined INA housings and shoulders

Applications Of Nesting Wood CNC Machine
(1) Cabinet, wardrobe, bank office furniture, computer desk, children’s furniture, panel furniture, office furniture;
(2) Decoration with hollow lattice, soft bag background wall production;
(3) Panel furniture cutting, slotting and hole arranging.

CNC Woodworking Machine-07

Furniture Production Line

Furniture Banding Edge

Woodworking industry

4-axis-cnc-wood

Wooden Door Processing

CNC Woodworking Router-6

Furniture Making

nesting CNC machine Application_21

Wooden Furniture Processing

1325 Wood Cutting Machine

Cabinet Door Processing

1325 Wood Cutting Machine

Wooden Crafts Relief

1325 Wood Cutting Machine

Acrylic Cutting

The ATC CNC Nesting Router Machine with Vertical Drilling is equipped with 9-hole drilling bag, equipped with a 9.0kw air-cooled spindle, and independent operation. Usually used in conjunction with labelling coding machines and automatic loading and unloading platforms. High speed, high precision, high efficiency and stability. It is suitable for processing various cabinet doors and wooden doors.

PRODUCTION FACILITY

Becoming a customer of iGOLDENCNC, we will cooperate with you on the basis of complete trust and comfort. You will find that we are a reputable supplier and worth your trust. We understand that every customer is valuable, and we will cherish every opportunity to cooperate!

CNC factory

FAQ

First of all, there are twelve tool changes, which can process more complicated engraving. The 4 + 5 row drill package can punch nine holes with different diameters. The punching speed is fast.

The doors and cabinets of the machining center can be processed. Compared with other numerical control equipment, it can process tedious processes, and the processing speed is greatly improved.

In the customer groups we are currently in contact with, we do not require the processing of hundreds of plates per day, and they are generally not eliminated. Each of our customer groups does not require individualization, and most of them are personalized. Home improvement companies, decoration industries, etc., customer requirements will be met. Compared with other CNC equipment, its advantages are still great, and will not be eliminated in the short term.

If you want to save labor, it is best to add an automatic loading and unloading platform. If the customer considers the cost of equipment purchase, you can suggest that you add a loading platform and build a loading platform yourself. This saves labor and costs.

Our domestic equipment has more options to use domestic first-line HQD spindle drilling, his warranty is long, and in use, the spindle is damaged. We can re-issue spares without delaying production. The imported spindle is quite high in maintenance time and cost. The stability and efficiency of domestic spindles are also guaranteed. I still recommend the boss to choose domestic HQD, of course, if you still consider importing spindle drilling, sufficient investment funds can configure you for import.
