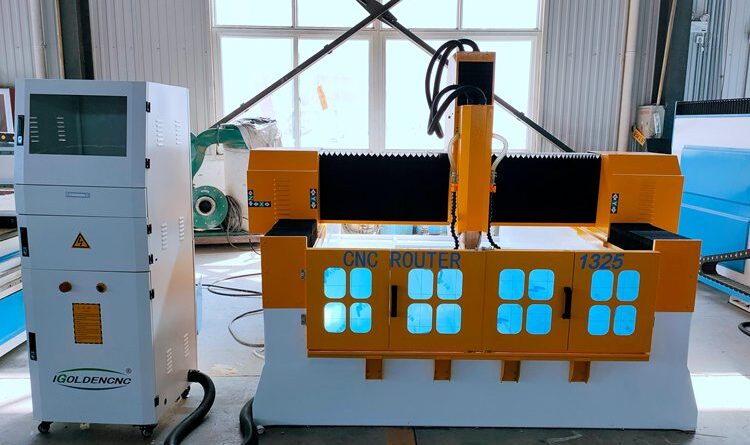

Stone Cutting & Engraving CNC Router Machines
This powerful and robust CNC router system is capable of cutting and engraving stone, granite and marble etc.. Perfect for stonemasons or any industry looking to process stone-based products.
Stone Cutting & Engraving CNC Router Machines
Robust Industrial Design
Easy To Use Control System
Great For Stone Products
MAIN CONFIGURATION
| Name | Manufacturer/Brand |
| Machine Body | Square Tube Welding Structure |
| Gantry | Steel Structure |
| Spindle | Water-cooled spindle |
| Worktable | Profile Clamping Table |
| Guide Rails | Japan Pantoscopic |
| Rack | Japan Pantoscopic |
| Ball Screw | Taiwan TBI |
| Driver | Stepper drive motor |
| Frequency Converter | FULING |
| Electrical Components | SCHNEIDER / CHNT |
| Lubrication System | Hand oiling |
| Control System | DSP |
Stone Cutting Engraving CNC Router Machines Advantage
- Welded bed, low center of gravity, strong bearing capacity, not easy to deform, stable and reliable operation.
- Feed ball in front of the platform, easy to load.
- Ncstudio control system, computer operation, easy to operate; DSP handle Offline control Optional.
- Japan Pantoscopicguide rail, high positioning accuracy, smooth sliding, reliable quality, long life.
- Strong compatibility: compatible with Type3 / artcam/castmate/proe/Corelerow/Thai and other CAD/CAM software.
- Adopt high power frequency conversion water cooled spindle, provide excellent cooling effect when carving hard materials, and effectively protect the spindle when working continuously for a long time.
- Optional rotating shaft, cylindrical engraving, increase the processing range and diversity.
Product Parameter
| Technical indicators | parameter |
| Model | iGS-S-1325 |
| Working area | 1300*2500*500mm |
| Max. Running Speed | 20000mm/min |
| Max. Working Speed | 8000mm/min |
| Spindle power | 5.5kw Water cooled spindle |
| Spindle speed | 24000rmp |
| Positional accuracy | 0.05mm |
| Repositioning Accuracy | 0.02mm |
| Command Language | G code |
| Working Voltage | 380v/50Hz |
| Dimensions | 2307*3500*1755mm |
Introduction to the Stone, Granite and Marble CNC Router Range:
Key Features
- Powerful motor for precise and accurate cuts
- Advanced software for customizing cuts
- Suitable for cutting marble, granite and stone
- Industrial grade construction
If you’re in an industry that requires cutting and engraving marble, stone, or granite, range of stone and marble CNC routers is perfect for you.
With its high-performance capabilities and heavy-duty build, the system will revolutionise the way you cut and engrave stone, granite, and marble.
At the heart of the system is a robust 5.5kw water-cooled spindle and an easy-to-use DSP hand control operation with USB input, providing a simple and intuitive way to gain granular control over your machine.
The range is highly accurate and offers an affordable stone-cutting solution that won’t break the bank. Plus, with our renowned after-sales service, this stone CNC router should be at the top of your list.
Used in a variety of applications such as:
