Multi Spindle CNC Router Machine

Four Head Woodworking CNC Router Use Drive for Precision Control

A four-head woodworking CNC router is a specialized machine used for cutting, shaping, and carving wood materials. It typically features four spindles or router heads that can perform different operations simultaneously, enhancing productivity and versatility. Here are some key points about a four-head woodworking CNC router:

  1. Multi-Head Configuration: The four-head configuration means that the machine has four independent spindle units, each with its own motor and cutting tool. These heads can be positioned and programmed individually, allowing for simultaneous cutting, drilling, engraving, or milling operations on multiple areas of the workpiece.
  2. Increased Productivity: With four heads, the machine can perform multiple operations simultaneously, significantly reducing production time. For example, it can cut out a shape with one head, while another head is drilling holes or engraving intricate details. This makes the machine well-suited for high-volume production and complex woodworking projects.
  3. Versatility: A four-head CNC router offers increased versatility in woodworking applications. Each head can be equipped with different types of cutting tools, such as router bits, drills, or saw blades, enabling the machine to perform various operations on different parts of the workpiece simultaneously. This versatility allows for complex and intricate designs to be achieved efficiently.
  4. Precision and Accuracy: CNC routers, including four-head models, offer exceptional precision and accuracy in cutting and shaping wood materials. The computer-controlled system ensures consistent and repeatable results, minimizing errors and achieving high-quality finished products. The ability to use multiple heads simultaneously further enhances precision by reducing the need for repositioning the workpiece.
  5. Software Control: Four-head woodworking CNC routers are typically operated using specialized software. The software allows users to create or import design files, define tool paths, set cutting parameters, and control the operation of each head independently. The software also provides features for optimizing tool paths, minimizing waste, and maximizing efficiency.
  6. Applications: Four-head woodworking CNC routers are used in a wide range of woodworking applications. They are commonly employed in furniture manufacturing, cabinetry, door making, musical instrument production, decorative woodworking, and architectural millwork. The machine’s ability to perform multiple operations simultaneously makes it suitable for complex and customized woodworking projects.
  7. Workpiece Size and Capacity: The size and capacity of a four-head woodworking CNC router may vary depending on the specific model. Some machines are designed for small to medium-sized workpieces, while others can handle larger materials. It’s essential to consider the maximum dimensions and weight capacity of the machine to ensure it meets your project requirements.

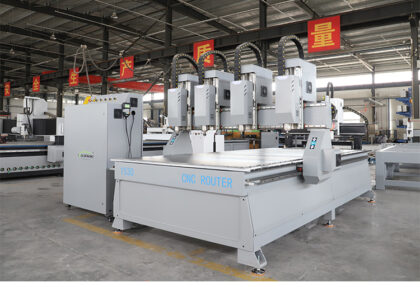

Multi Spindle CNC Router Machine

The Meaningful of Four Head Woodworking CNC Router

3d Woodworking CNC Router with 4 head suitable for solid wood and composite doors, cabinet doors, large-scale plate engraving, real wood carving flower router milling, plate furniture carving, antique mahogany furniture carving, solid wood art mural sculpture and other industries, watch box, craft photo frame, calligraphy plaque, electrical counter face, sporting goods equipment, thin aluminum engraving and milling carving.

Woodworking CNC RouterWoodworking CNC Router

The Origin of CNC routers

Where traditional mills and routers are large handheld or table-mounted spindles for analog carving jobs, the CNC router sophisticates things, introducing pinpoint accuracy in three axes and allowing you to produce end-use and, more importantly, sellable, objects right before your eyes. And perhaps best of all, you can pick up a decent one for somewhere in the region of $300.

The majority of CNC machines come in kits that require you to build the machine yourself. These are mostly pretty sizeable objects and so it makes sense that many are shipped in pieces –just something to keep in mind as we run you through this list of the top CNC routers worth knowing right now.

CNC Wood Routers Use Drive for Precision Control

The woodworking industry is as advanced and under pressure to deliver high-quality goods quickly as any. One of the most versatile tools devised to quicken production with flat panels of wood is the wood router, used to rout (hollow out) an area in the face of a piece of wood, and used for 3D design, cabinets, sign making, molds, and general material cutting. The table-like device, similar to a metal mill, consists of a broad-based wooden hand plane with a narrow gantry-carried cutting implement projecting beyond its base plate. To guide its computer numerical controlled (CNC) ATC wood routers, WartHog CNC (Soddy-Daisy, TN) turned to YET US’s (Manchester, NH) XtraDrive servo drive system, integrating it into the routers’ precision and power controls.

CNC Routers & Accessories

A CNC router (Or Computer Numerical Control router) is a computer-controlled cutting machine used for cutting various hard materials, such as wood, composites, aluminium, steel, plastics, and foams. CNC routers can perform the tasks of many workshop machines such as panel saws, spindle moulder/router tables, and the boring machines. A CNC router is very similar in concept to a CNC milling machine. Instead of routing by hand, tool paths are controlled via computer numerical control – most commonly by designing the cutting path on a computer, then loading that cutting path into the machine which then moves on three axes’ to cut the desired shape.

Of course there is a wide variety of sizes and shapes of machines, plus infinite applications for both home woodworkers and cabinet shops – with attachments such as laser cutters and fourth axis controllers to increase functionality. Plus there is a lot that can be done by using a wide variety of different cutters.
