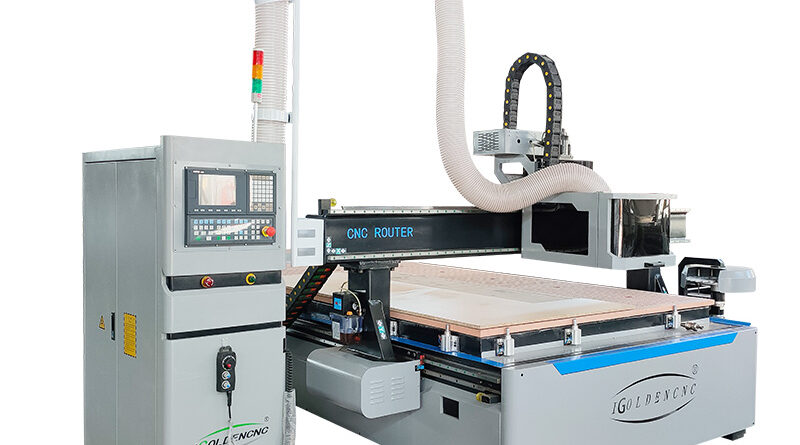

Multifunctional ATC Nesting CNC Furniture Making Machine
In our daily life, the multifunctional ATC nesting CNC furniture making machine, he changed our way of life. For example, cabinets, wardrobe, office furniture, computer desk, children’s furniture, panel furniture, solid wood and compound doors, cabinet doors, large area board carving, solid wood, clocks, photo frames, jewelry boxes, etc., can be seen everywhere.
What is Multifunctional ATC Nesting CNC Furniture Making Machine?
The ATC nesting CNC machine with line tool changer is equipped with a 9.0kw air-cooled spindle, and independent operation. High speed, high precision, high efficiency and stability. At the same time, it is equipped with multifunctional row drilling package and level spindle, which can drill holes, mill grooves,It is suitable for processing various cabinet doors and wooden doors.
Features:
1.Wide Application Range:a.>Production and processing of various types of furniture: cabinets, wardrobes, office furniture, computer tables, children’s furniture, panel furniture, cutting and cutting, slotting and perforating, decoration hollow frames, soft bag background wall production, etc.;
b.>Wooden door and furniture decoration industry: solid wood and composite door, cabinet door, large-area plate carving, solid wood, panel furniture carving, solid wood art mural carving, etc;
c.>Wood products processing: clocks, sporting goods and equipment;
d.>Musical instrument industry: three-dimensional curved surface and shape cutting of sculpture musical instruments;
e.>Crafts industry: photo frames, jewellery boxes.
2.Advanced core technology: The Spindle with Italy HSD Air cooling 9kw ATC spindle+HSD drilling unite + Saw, The Rail with Taiwan xinyue square guide rail.
3.Easy to Operate,Complete Functions.
Parameters
XYZ working area | 1500*3000*300mm |
Spindle | Italy HSD Air cooling 9kw ATC spindle+HSD drilling unite + Saw |
Tool magazine | linear tool magazine 16 pieces |
Rail | Taiwan xinyue square guide rail |
Table | T slot table + Vacuum table with 12 Vacuum area |
Vacuum pump | Air cooling vacuum pump 7.5kw |
Motor and driver | Digital type Japan Yaskawa servo 850W motor and driver and reducer |
Inverter | Taiwan Delta 11kw |
System | Bus communication controller–Syntec FC 60WA with independent control cabinet |
Bed frame | Thick Heavy Welding duty and precision with iron cast New type structure |
Other | Spindle dust cover |
Dust collector pipe | |
Double bag Dust collector 4.0kw |
