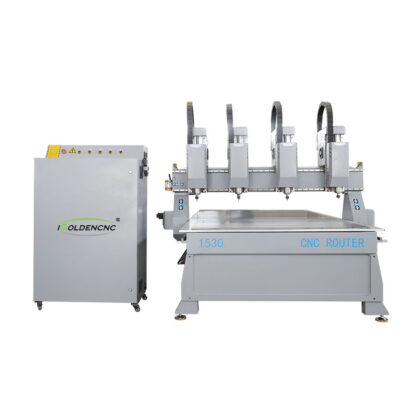

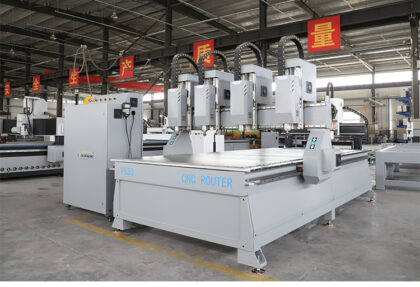

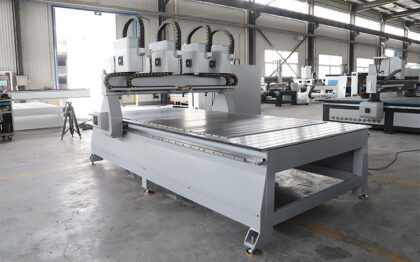

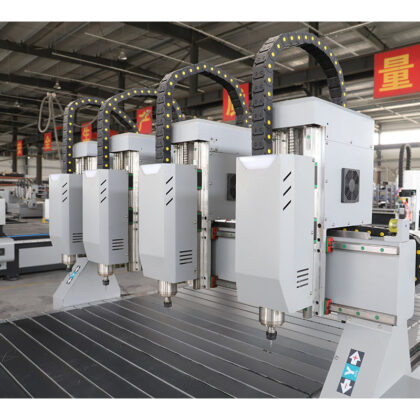

4-spindle CNC Wood Router Machine for Doors Panels

Item No.: iGW-3AD4

Dual-spindle CNC wood router adopts double independent spindle structure, which can work simultaneously or independently, with a wide range of functions: engraving, milling, slotting, drilling, cutting, etc., and improve work efficiency by 200%.

Category: CNC Router>>Woodworking>>3 Axis
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $5105-$7430

Get Latest Price:

Description

Who is it for?

The new model of 3 axis wood CNC router machine, with 4 independent spindles, perfect for large area working, the welding body offers the robust construction that iGOLDENCNC products are known for, combined with a competitive set of configurations. Hot applications include:

>Woodworking industry: solid wood doors, cabinet doors, paint-free doors, craft wooden doors, 3D wave boards, screens, craft fans, game panels and cabinets, computer desks, panel furniture products and so on.
>Advertising industry: advertising signage, logo production, acrylic cutting, plastic film making, and the production of advertising decoration products of various materials.
>Other industries: It can carve various large reliefs, which are widely used in craft gifts industry.

What makes it unique?

Popular with primary users or customers with limited budget, the iGW-3AD series wood CNC router machine is suitable for manufacturers who prefer the flexibility and adjustability of the machine.

>Improve work efficiency;
>Controlling production costs;
>Heavy industry quality, stable operation for 10 years;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.

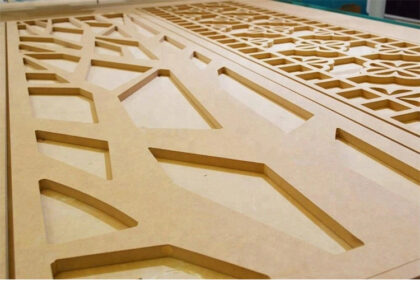

Applications of 3 axis wood CNC router machine

Wooden Door Processing

Solid Wood Carving

Wooden Furniture Carving

Wooden Embossing

Wooden Crafts Carving

Acrylic Crafts Processing

Wood Billboard Carving

Whole House Custom

Positioning Accuracy ±0.05mm
Repositioning Accuracy ±0.02mm
Command Language G Code
Flash Memory 128G
Max. Rapid Travel Rate 50000mm/min
Max. Working Speed 20000mm/min
Spindle Power 2.2kw water cooling
Spindle Speed 24000rpm/min
Working Voltage 380V/50Hz
Running Environment Temperature About 25℃
Relative Humidity <85%
Ps. Adjustment is available according to locally requirement
Working Area (X,Y,Z) 1300*2500*300mm
Packing Size 3200*2300*1900mm
N.W./G.W. 1500/1700kg
Working Area (X,Y,Z) 1500*2500*300mm
Packing Size 3200*2500*1900mm
N.W./G.W. 1800/2000kg
Working Area (X,Y,Z) 1500*3000*300mm
Packing Size 3700*2500*1900mm
N.W./G.W. 2000/2200kg
Working Area (X,Y,Z) 2000*3000*300mm
Packing Size 3700*3000*1900mm
N.W./G.W. 2300/2500kg
Working Area (X,Y,Z) 2000*4000*300mm
Packing Size 4700*3000*1900mm
N.W./G.W. 2600/2800kg

Features of 3 axis wood CNC router machine

HQD 2.2kw Water Cooling

Double spindles with 200% efficient, high precision spindle, long lifetime bearing, high speed, low noise, stable operation, machining without collapse, maintenance-free.

>Precision ground inner hole, high-precision chuck and dynamic balance nut to improve motor concentrically and extend the service life;
>Built-in fan cooling, easy to use, can be used by directly connecting to the inverted, maintenance-free;
>The fuselage is made of high-quality stainless steel, which ensures smooth and rust-free after secondary treatment;
>High-temperature grease lubrication, extend long service time;
>Ceramic ball bearings are used to ensure high-speed operation and accuracy of the spindle.

Welding Machine Body

Rectangular tube welding bed, honeycomb structure with reinforcing bars, welded by a rectangular pipe with a diameter of 150*150mm and a thickness of 6mm. After large-scale gantry milling, all the installation holes are accurately and thoroughly processed.
Higher tensile strength and dimensional stability. It can effectively improve the accuracy of the bed, reduce the machining error of the workpiece, and increase the resistance and stability of the guide rail.
The loss of the equipment is reduced. The accuracy of the machine is kept for a long time, and it does not change for 20 years. The stability of the equipment is good, and the machining error due to the vibration of the bed body is reduced.

The Third-generation Gantry

The gantry is machining with the thickened rectangular tube that can bear the weight of fewer than 800 kilograms and annealed.
High strength, good rigidity, lightweight, no deformation, long service life.
The damage to the motion conduction device is small, the resistance to the driving motor is small, the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use cost are reduced.

Aluminum Profile Worktable

The aluminium profile worktable is composed of several thick aluminium profiles, which are stable and not deformed, and are easy to clamp.
The aluminium profile worktable is to fix multiple aluminium profiles on the bed and stick a layer of PVC to prevent damage to the cutter. Each aluminium profile has a groove in the middle for placing the platen fixing material for easy processing.
Moisture resistance, corrosion resistance, acid and alkali resistance, rust and wear resistance, non-magnetic, strong stability.
Flexible fixing plate, stable and wear-resistant, zero maintenance cost, no deformation, prolong service life.

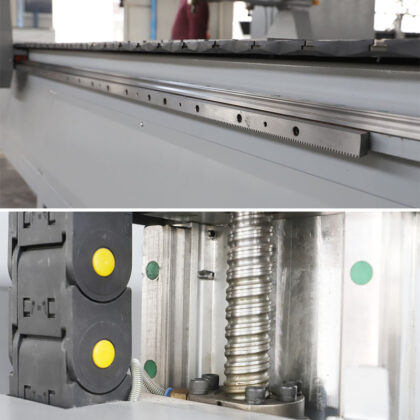

High-precision Transmission System

The positioning accuracy of the machine is 0.02mm, the maximum running speed is 50,000mm/min, and the CNC router service life up to 10 years.

Taiwan HIWIN Guide Rails and Rack

Japan YASKAWA Servo Driver

Japan SHIMPO Reducer

Upgraded Intelligent Control System

Taiwan LNC System.

>Strong compatibility compatible with many CAD / CAM software such as Type3 / Artcam / Castmate / Proe / UG / Carved Wentai;
>Advanced file pre-processing function helps users to correct errors in processing files in time;
>Advanced three-dimensional curve prediction algorithm, the polyline is stable, ensuring the speed and accuracy of the curve;
>It has the function of breakpoint and breakpoint engraving, and the function of automatic error correction when returning to the origin, which effectively guarantees the processing accuracy when working for a long time;
>The system is easy to operate, responds quickly, and quickly removes obstacles, which is conducive to learning.

High-precision Automatic Tool Sensor

High precision automatic tool sensor, 1um repeatability, suitable for 95% of the operating system in the market, easy to install, super-hard alloy for the blade surface, stable and durable, IP67 class deep waterproof.
Compared with the manual toolset, the machining accuracy and work efficiency are improved. The operation time is saved by 70%, the machining accuracy is increased by 30%, and the defective rate of products is reduced.

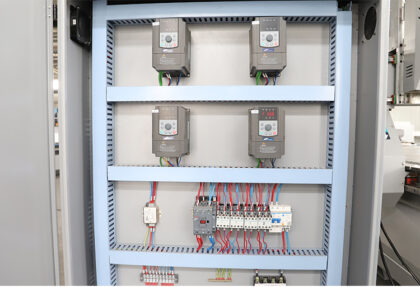

France Schneider Electric Components

Advanced anti-interference ability, stable signal, suitable for the different working environment, high safety.
The European safety standard, stable operation for 10 years, ensure engraving machine circuit safety, safety performance improved 50%.

Automatic Lubrication System

Guaranteed machine’s lubrication all the time , ensure the smooth operation of CNC router, with abnormal alarm and liquid level alarm. It will extend the service life of transmission system and whole machine, and reduce maintenance time, increase your profits.

Options of 3 axis wood CNC router machine

Spindle Optioned

9kw HSD air-cooling spindle is mainly used for grooving, cutting and milling depth hole;
6kw HSD air-cooling spindle is mainly used for cutting, perforated and carving;
4.5kw HSD air-cooling spindle is mainly used for carving and relief;

Worktable Optioned

Aluminium profile worktable: three-axis router machine standard table, manual clamping plate, the most economical;
Vacuum adsorption worktable: equipped with 7.5kW vacuum pump adsorption, effectively improve machining accuracy and efficiency;
Both vacuum adsorption and T-slot worktable: the cost is higher, but the big board, the small board, the thin plate, the thick plate can realize the effective fixed and the high precision processing.

Control System Optioned

Taiwan LNC system is the standard system.

Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

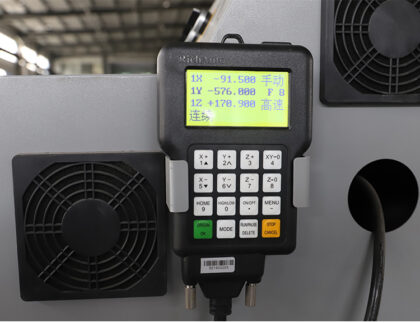

Operation System Optioned

NC-STUDIO system is the standard system.

DSP system, Mach3 system can be optioned.

Table Rotary Lathe Device

Improve the engraving quality and efficiency of the cylinder and reduce the difficulty of operation.

> It is not necessary to expand the surface to calculate the rotary engraving path;
> Completing the tool path calculation at one time without rotating the workpiece repeatedly;
> Reduce the finishing allowance; the tool path can be roughed in layers;
> Realize local rotation processing; can set angle range and length range;
> There is no positioning mark, and the rotary engraving processing adopts the whole shaft mode, and the engraving machine generates an automatically closed rotary engraving processing path.

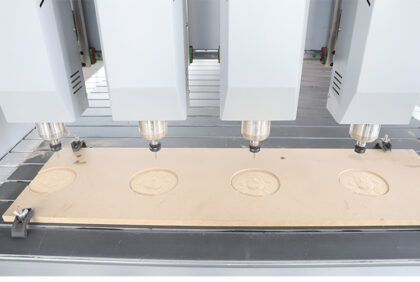

The 4-spindles 3 axis cnc router machine has four heads, which is more efficient than the single-head cnc wood carving machine, and it can realize mirror engraving. Please let me know your whatsapp number, we can send working video for your reference.

When fixing a malfunctioning stepper electric motor, it is very important to be fatigued of inaccurate or shorted circuitry. While examining your links and cords may be called for, there is a straightforward process that can conserve you time and effort when examining your system’s steppers.

Contact our support team immediately and we’ll help you troubleshoot.

In rare cases, we may need to provide on-site support, but we suggest getting in touch with our team first as in many cases on-site will not be necessary.

As a valued iGolden CNC customer, you can expect that we will do everything we can to get your machine working immediately with minimal expense to you.

Of course, we can send some switches, limits, etc.

More efficient than a single head, you can also do mirror carving.
