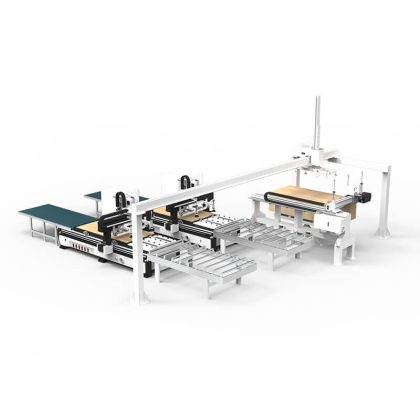

CNC Wood Furniture Cabinet Production Line One-To-Two
Item No:iGC-RL-1T2
A Robot One to Two CNC Router Furniture Production Line is an advanced manufacturing solution designed to automate the process of cutting, shaping, and assembling furniture components. This production line integrates robotic technology with CNC (Computer Numerical Control) routers to maximize efficiency, precision, and flexibility in furniture production.
Price Range: $50000-$60000
Category: Furniture Making Machine
Description
Furniture Production Line
This production line adopts a highly efficient gantry robot combined with a modular design concept, innovatively realizing a “one-to-two” linkage production mode, and is designed to create intelligent and flexible production solutions for the woodworking industry. The gantry robot synchronously controls two cutting machines, significantly improving production efficiency and reducing manual intervention, meeting the needs of batch production and customization in the fields of furniture manufacturing, wooden crafts, and decorative materials.

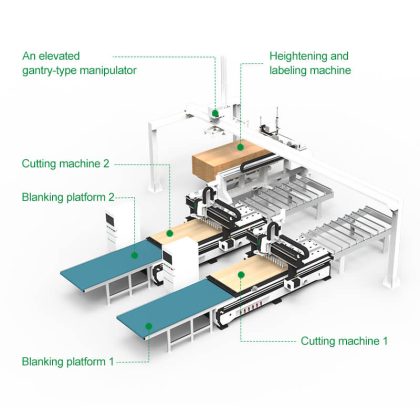

The lift below the elevated labeler can hold 60 sheets.→The central control software sends the label information to the labeling machine.→After the automatic labeling machine has finished labeling, the robot will distribute it to the No. 1 and No. 2 cutting machines.→The processing program is sent by the central control software to the corresponding cutting machine for cutting. →If the cutting machine has not completed its work, the robot will place the grabbed sheet in the labeling buffer area, and the labeling machine will continue labeling until all processed sheets are completed.
CNC router furniture production lines can be equipped with a wide range of CNC wood machinery(such as nesting cnc router, robotic arm, automatic labeling machines, edge banding machines, cnc side holes maschines) and automated control systems.
This furniture product lines is IGOLDEN 2025 newly designed One-to-Two function machine line: Smart 3.0Pro, it can be meet the demands of modern furniture manufacturing and are ideal for producing precision furniture, suitable for small and medium-sized factories. It can support cutting, engraving, drilling ,milling and labeling, which providing a versatile solutions to meet a wide range of production requirements. All of our CNC router furniture production lines are integrated with the market’s leading CAD/CAM software, streamlining the design-to-production process for increased productivity.
Equipment parameters
| Model | iGC-GL-1T2 |
| Robot | |
| Number of axes | 2-axis |
| Beam length | 10.2m |
| Number of suction cups | 8 |
| Suction cup load weight | Max. 100kg |
| CNC cutting machine | |
| Working area（X,Y,Z） | 1300*2500*250mm（Customizable） |
| Max. empty line speed | 60000mm/min |
| Max. operating speed | 30000mm/min |
| Spindle power | 9.0kw Air-cooled tool-changing spindle |
| Spindle speed | 24000rpm |
| Positioning accuracy | 0.03mm |
| X,Y axis transmission | Rack |
| Z-axis drive | Ball Screw |
| Repeat positioning accuracy | 0.02mm |
| Command language | G Code |
| Operating voltage | AC220V/380V, 50Hz |
Main Configuration
| Name | Details | |
| Ⅰ | Mechanical part | |
| 1 | Bed | Square tube welding structure |
| 2 | Dragon Gate | Steel Structure |
| 3 | Spindle | HQD 9.0kw air-cooled automatic tool-changing spindle |
| 4 | Mesa | PVC vacuum adsorption table |
| 5 | Guide | Taiwan Hiwin |
| 6 | Rack | Taiwan YYC |
| 7 | Lead Screw | Taiwan TBI |
| Ⅱ | Circuit part | |
| 1 | Drive | Dongling Motor |
| 2 | Reducer | SHIMPO |
| 3 | Frequency Converter | Fuling |
| 4 | Electrical components | France SCHNEIDER |
| 5 | Three-color light | Yes |
| 6 | Cabinet | IGOLDENCNC |
| Ⅲ | Tool setting part | |
| 1 | Tool magazine | Inline tool change magazine |
| 2 | Tool setting probe | Automatic tool setting instrument |
| Ⅳ | Oil circuit | |
| 1 | Lubrication system | Automatic oil filling |
| Ⅴ | System Control and Software | |
| 1 | Intelligent connection control system | IGOLDENCNC |
| 2 | Labeling | Automatic labeling |
Applications of the CNC Router Furniture Production Line
CNC router furniture production lines are widely used in the furniture manufacturing industry. Thanks to their excellent compatibility and high degree of automation, they can meet the production needs of a wide range of furniture. They are ideal for modern furniture manufacturers who want to optimize existing production processes and improve product quality. Typical applications of this production line are as follows:
1. Customized and Modular Furniture Production
CNC router furniture production line are good at customized furniture and modular designs. They can perform high-precision cutting and processing to ensure accurate dimensions and beautiful designs, and can meet the needs of personalized customization. They provide strong support for the high-end furniture market.
2. Cabinet, Kitchen Furniture and Wardrobe Production
Whether it is modern cabinets, kitchen furniture or large-capacity wardrobes, the CNC router can achieve high-precision processing, ensuring that the dimensions of each part are the same and the machined surface is smooth and flat, thereby improving the overall assembly quality and aesthetics of the product.
3. Panel Door and Decorative Woodworking Processing
CNC router furniture production line have unique advantages in the processing of panel doors and decorative wood products, and are especially suitable for creating complex carved designs and fine textured decorations. Whether it is a practical door panel or an artistic wood product, precise processing can be achieved.
4. Office Furniture Manufacturing
In the field of office furniture, CNC router furniture production line can quickly, stably and mass produce furniture such as desks and filing cabinets, while ensuring the structural durability and appearance consistency of the products, providing cost-effective solutions for the enterprise market.
Features of CNC Router Furniture Production Line
- One-to-Two Functions: 1 set automatic labeling machine working together with 2 set nesting cnc router machines, 1 set gantry loading system, every day working 8 hours, it can easily complete the processing of 280Pcs wooden boards.
- Professional Nesting System: This CNC router furniture production lines with built-in optimization system, automatic material calculation and arrangement, high utilization rate, each board can be used to 2.7-2.8㎡, which can asving costs.
- High-speed labeling machine：large storage capacity, fast labeling speed and high precision
- High-power 9.0kw air cooling spindle: cutting, punching, grooving, engraving and drilling can all be realized.
- High-performance 1500W servo motor: runs smoothly with strong overload capability.
- 6-12Pcs linear automatic tools changer:fast speed changer tools, high efficiency for woodworking.
Let’s discuss more to confirm your offer
Do you plan enlarge your current factory or build new factory?
How many square meters does your factory cover? Could you please provide layout of factory?
How much capital budget do you plan to invest in this production line? We have different configuration options to choose from?
What are your requirements for the capacity of this production line?
How many workers do you plan to put into this factory?Whether to hire professional technicians
Do you invest in this project to expand the existing old factory, or is it the first time to invest in the furniture field to build a new factory ?
Equipment Explanation
The heightened labeling machine is equipped with an intelligent lifting storage platform, which supports the continuous buffer supply of 60 sheets of plate materials, breaking through the traditional single-time loading limitation. The circulating supply mechanism realizes uninterrupted feeding, effectively eliminating the idling waiting time of the equipment, making the labeling unit seamlessly connected with the subsequent process, and improving the overall production line efficiency by more than 40%.
A four-axis robot is used to load materials and transport plates. It cooperates with two CNC cutting machines to grab, position and transport plates. It is characterized by flexible movement and small footprint, which is suitable for small and medium-sized workshop layouts.
The two cutting machines work simultaneously, using professional cutting software, which can design and optimize the layout and positioning of the panels online, thus improving the utilization rate of the panels. Combined with the automatic unloading platform,the processing speed and efficiency are effectively improved.
Related Products
Conclusion
The One to Two CNC Router Furniture Production Line offers a comprehensive solution for manufacturers seeking to improve their efficiency, quality, and flexibility in furniture production. By incorporating advanced CNC technology and customizable configurations, this production line meets the diverse needs of the furniture industry, enabling manufacturers to scale their operations and stay competitive in an ever-evolving market. For more details or to arrange a demonstration, manufacturers are encouraged to contact suppliers or manufacturers specializing in CNC technology.
