CO2 Laser Engraving Cutting Machine
CO2 laser engraver cutting machine
CO2 Laser Engraver Machines
CO2 Laser Engraver Machines
详情_08
详情_15
CO2 Laser Engraver Machines
1390 CO2 Laser Engraver Machines
1390 CO2 Laser Engraver Machines

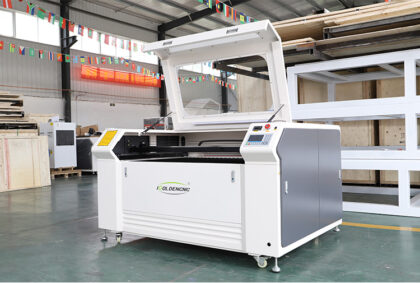

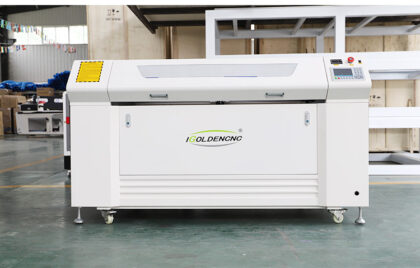

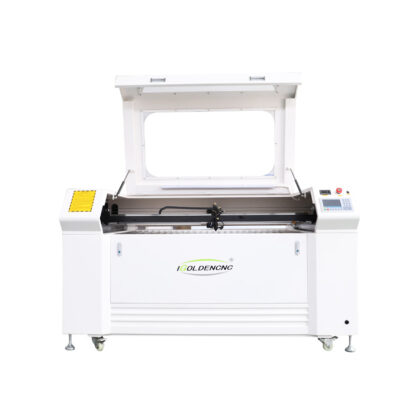

1390 Laser Cutting and Engraving Machine for Sale

Item No.: iGR-L(C)

The affordable CO2 laser engraving cutting machine is distinguishing from the flatbed engraving and cutting machine for nonmetal material, also called CO2 laser engraver. The best CO2 laser engraver is widely used in signs, arts, crafts, gifts, shoes, toys, garments, packaging and paper industry.

Category: Laser Machine>>Laser Engraver
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $3650-$4950

Get Latest Price:

Description

Who is 1390 laser engraving machine for?

Laser cutting and engraving machines utilize a high-powered laser beam to cut or engrave materials with precision. Working area 1300mm x 900mm,The laser beam is controlled by a computer system, allowing for intricate designs and shapes to be created. The machine can cut through or engrave a wide range of materials, including wood, acrylic, fabric, leather, paper, and certain types of metal, depending on the power and capabilities of the specific machine.

The 1390 laser cutting and engraving machine is commonly used in various industries, such as manufacturing, signage, woodworking, crafts, and prototyping. It offers versatility in terms of materials it can work with and the complexity of designs it can produce.

The 1390 laser engraving machine is often used in industries such as advertising, woodworking, and crafts. It can be used to create a wide range of products, such as signs, displays, jewelry, and personalized gifts.

What makes it unique?

Hot applications is engraving and cutting for Wood, acrylic, stone, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass, and other nonmetal materials.

With wide range of application, the iGL-C series is suitable for different requirements with different working area and different power.

>60w/80w/100w/130w/150w/200w as your requirements;
>High precision, perfect engraving result;
>Honey comb table and knife table for optioned;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.

Application of Laser Engraving Cutting Machine

Engraving on Plexiglass

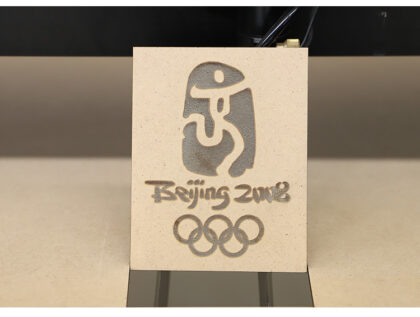

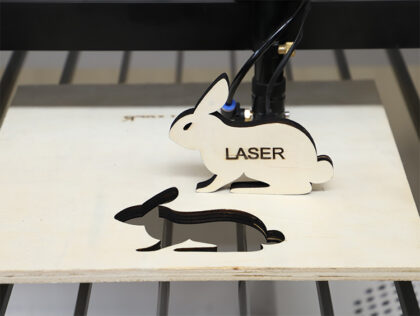

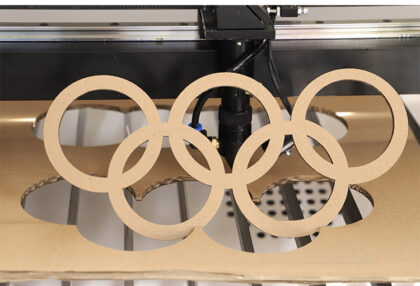

Engraving on Wood

Engraving on Shell

Engraving on Rubber

Engraving on Acrylic

Engraving on Stone

Engraving on Glass

Engraving on Bottle

Positioning Accuracy0.05mm
Repeat Positioning Accuracy0.02mm
Laser Power60W/80W/100W/130W/150W/200W
Scanning Precision2500DPI
Max. Speed24000mm/min
Min. CharacterEnglish Letter: 1*1mm
Cooling SystemWater-cooling
Power SupplyAC110V/220V±10%,50/60Hz
Working Area1300*900mm
Dimensions1820*1310*1070mm
Packing Size2030*1600*1350mm
N.W/G.W800kg/1000kg

Features of CO2 Laser Engraving Cutting Machine

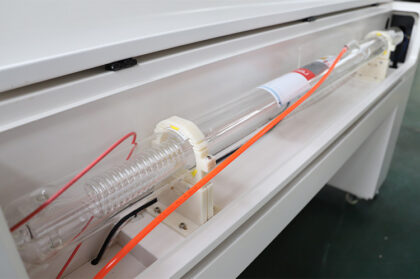

Advanced Laser Tube

Higher laser output power density, concentrated beam, uniform spot, high work efficiency, high cutting speed. The laser tube adopts special manufacturing technology, the laser beam becomes sharp after focusing, the marking line is narrow, the scale is deep, the resolution is high, and the picture quality is clear.

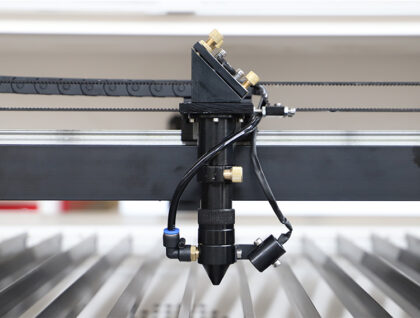

Autofocus Cutting Head

The cutting head adds an automatic focusing device, which can be calibrated by the software machine and find the focus to be cut. There is no need to manually adjust the focal length, which saves a lot of time and has higher accuracy.

Automatic Lifting

Adjust the working height of the worktable up and down to meet the processing requirements of objects of different thicknesses and to meet the needs of cutting materials of different thicknesses.

The lifting height can reach 20cm.

Advanced Transmission System with High Precision

Japan OMRON Electronic Components

More stable and faster.

Taiwan HIWIN Guide Rails

Smoothly and higher precision.

LEADSHINE Stepper Motor

Low noise, low vibration and better acceleration performance.

Honeycomb Worktable

The default standard cellular countertop. The knife strip table can be selected according to the processing materials and requirements.

WIFI Control

Engineers can remotely control computers and machines, adjust parameters and solve problems.

One PC can control multiple machines.

Water Chiller

Dual-temperature dual-pump chiller, two-way water cooling, can quickly cool the laser body and laser head at the same time, one machine is multi-purpose, to ensure the safe operation of the machine 24 hours, visual temperature adjustment, automatic alarm, humanized design, ensure processing safety, save costs, and reduce waste of space.

Options of CO2 Laser Engraving Cutting Machine

Laser protective glasses

Laser protective glasses can prevent or reduce laser damage to human eyes. Laser goggles are efficient and safe goggles, which are comfortable, beautiful, safe and reliable, and their optical safety performance fully meets the GJB1762-93 standard. Laser goggles include reflection type and absorption type, which can completely protect specific wavelength laser and glare. Suitable for various laser devices with visible light transmittance exceeding 70% and optical density above 5.0.

Rotation Axis

The carbon dioxide laser engraving machine can be equipped with a rotating shaft to realize the engraving of the cylinder. Common diameters are 50mm, 80mm, 100mm, etc. Please inform the sales manager of your specific needs.

CCD

The CCD camera has 1.3 million pixels, which can capture the contour of the cutting object and automatically cut the edge. It is widely used in the trademark industry. With the personalized development of the clothing industry, the demand for special-shaped trademarks is increasing. The traditional cutting process cannot meet the demand, but the camera laser cutting machine is very suitable for high-end configuration, stable performance, and faster cutting of special-shaped trademarks.

Stainless Steel Crawler Steel Mesh Platform

Suitable for large-format soft materials such as clothing, fabrics, and carpets.

Automatic Feeding System

No need for manual tentative feeding to improve work efficiency. Promote the smooth movement of the processed materials, ensure the smoothness of the materials, facilitate the stable work of the laser head, and improve the work stability.

For the CO2 laser cutter, the price is different according to the function and configuration. Please contact us for more details.

It depend on the material thickness you want to processing and the running frequency of the machine. Please let us know which material do you want to process and the thickness.

Hot applications is engraving and cutting for Wood, acrylic, stone, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass, and other nonmetal materials.
