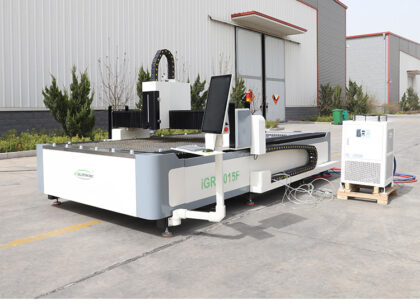

Flatbed Fiber Laser Cutting Machine 1530 for Metal Sheet Cutting
Item No:: iGR-F
CNC laser cutting machine, also called fiber laser cutting machine, fiber laser cutter, laser cutter, metal laser cutter, metal laser cutting machine, designed for high precision metal plate cutting processing. This model is the entry level for metal plate cutting at affordable price.
Category: Laser Machine>>Laser Cutters
Response time: Within 1 hour
Supply Ability: 200 sets/month
Price Range: $4850-$163500
Description
Who is metal sheet plate laser cutting machine for?
The most popular, affordable flatbed fiber laser cutting machine, perfect for metal plate cutting processing, the welding body offers the robust construction that iGOLDENCNC products are known for, combined with a competitive set of configurations.
CNC metal laser cutting machine hot applications is cutting for stainless steel, carbon steel, aluminum, copper, galvanized sheet and other metal plate.
CNC Sheet Metal Laser Cutter machine is one kind of precision metal cutting machines, it is is the best choice to deal with high speed and precious metal cutting.
We also offer customized professional machines for customers. Our cutting-edge technology and precision engineering enable us to provide efficient and reliable machines for a wide range of industrial applications.
What makes it unique?
Popular with metal processing users, the iGR-F series fiber laser cutting machine is suitable for manufacturers who just joined the industrial or started the metal cutting business.
>Basic entry model, low cost;
>High precision, perfect cutting result;
>Heavy industry quality, stable operation for 10 years;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.
Completely controlled by CNC, fiber laser metal cutting machine can produce complex parts with high tolerance repeatedly and consistently. Laser cutting can also produce high quality cut edges, usually without further cleaning, processing or finishing, thus reducing the need for secondary processing.

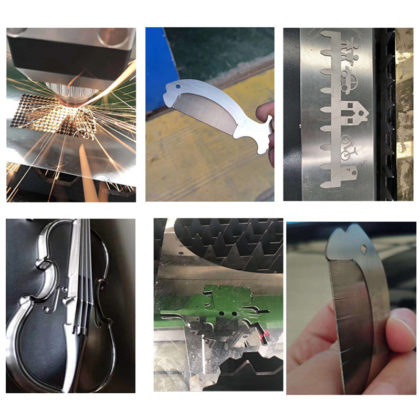

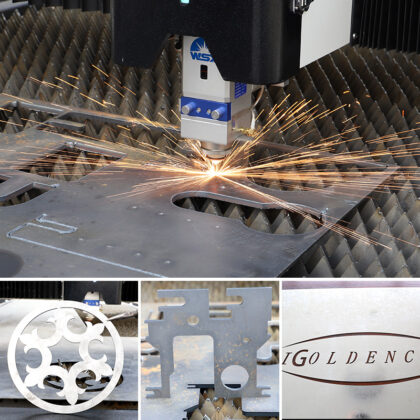

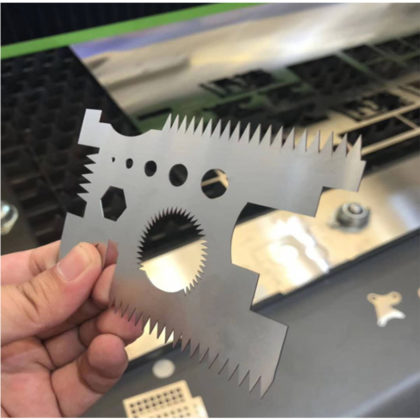

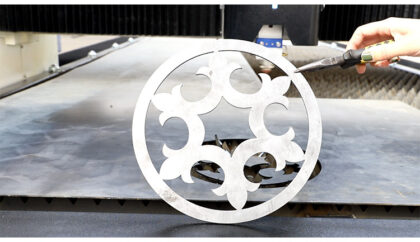

Application of Fiber Laser Cutting Machine
Stainless Steel Cutting
S.S Accessories Cutting
Carbon Steel Cutting
Cutting for Hardware
Cutting for Metal Letters
Cutting for Car Parts
Cutting for Metal Box
Cutting for Metal Shelf
| Working Area | 3000*1500mm |
| Dimensions | 4400*2500*2200mm |
| N.W | 2000kg |
Features of Fiber Laser Cutting Machine
Heavy-duty Welding Bed
The heavy-duty welding bed is welded with a thick rectangular tube with a diameter of 200*200mm. The bed weight can reach 1000kg. The bed body is annealed and milled by a large gantry to accurately drill all installation basic holes at once.
Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed, reduce the processing error of the workpiece. Increase the resistance and stability of the guide rail.
It reduces the loss of the equipment when it is used and keeps the precision of the machine for a long time and does not deform for 20 years. The equipment has good stability and reduces the processing errors caused by the vibration of the bed.

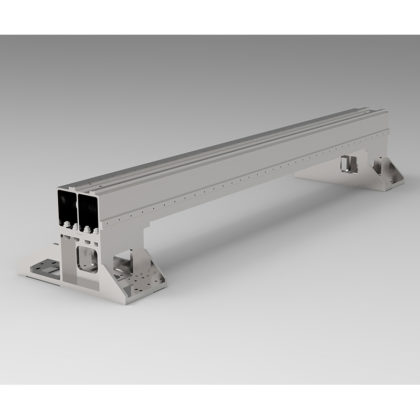

Aero-aluminum Integrated Beam
High precision. After manual aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and ductility.
Fast speed. Aluminum alloy has the features of lightweight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to the high-speed cutting of various graphics on the basis of high precision.
High efficiency. The lighter weight beam can ensure the rapid operation of the equipment, improve the processing efficiency, and at the same time ensure the processing quality. Not only can the high-speed operation of the laser cutting machine be guaranteed, but also the accuracy and efficiency of the cutting processing.
Effectively improve the service life and accuracy of the laser cutting machine, reduce time cost and reduce time loss. And after using the same time limit, the aluminum beam can ensure the cutting accuracy to the greatest extent, and at the same time, it can alleviate the kinetic energy of laser head during high-speed movement.

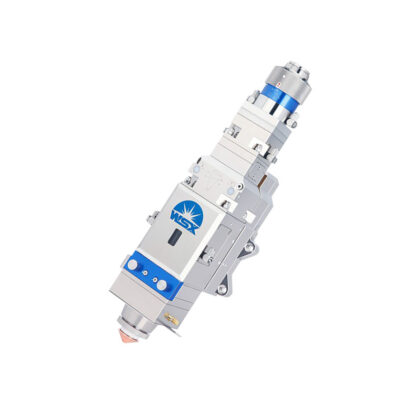

Auto-focus Laser Cutting Head
The laser head has a built-in motor drive unit, and the focusing lens is driven by a linear mechanism to automatically change the position within 20mm. The user can set continuous focus through the program to complete the rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. The compound lens group equipped with D28 integrates the light beam and optimizes the optical and water-cooled design so that the laser head can work stably for a long time.
Autofocus saves focusing time and improves work efficiency by 10 times.
Extend service life, by optimizing the structural design of the cutting head, extend its service life.
Taiwan T-win Rack Rails
Japan YASKAWA Servo Motor
Japan SHIMPO Reducer
Vertical LCD Display Screen Design
The vertical screen display is different from the traditional horizontal screen display. The response speed is 8ms, the resolution is ???, the screen ratio is optimized to ???, the power consumption is low, and the control software interface and human browsing habits are better adapted. In addition, it has a high brightness level and low reflectance, and the sturdy glass panel has sturdiness and durability.
Options of Fiber Laser Cutting Machine
Side Rotation Device
The standard length of the side rotation axis device is 3m/6m/9m , which can process square tubes and round tubes.
Clamp design: The electric clamp design is used on both sides, which can automatically adjust the center. The adjustable range of the diagonal is 20-200mm.
Automatic support installation: It adopts intelligent tube bracket design, which can solve the deformation problem during the cutting process of long tubes.
It can process both metal plates and metal pipes, one machine for two purposes, saving space and cost, and improving production efficiency
Independent Control Cabinet
Floor-standing independent control cabinet. Dustproof All electrical components and laser sources are built into a separate control cabinet and have a dustproof design to extend the life of the electrical components.
The automatic thermostat control cabinet is equipped with air conditioning to achieve automatic constant temperature. This can prevent summer temperatures Excessive damage to components.
More professional electrical device assembly, strong electricity separation and weak electricity separation.
Simpler dustproof, anti-static interference, good heat dissipation, easy to maintain.
More convenient and easy to detect circuit faults and maintenance.
Safer and independent of machine equipment, reduce Equipment operation interference.
For the fiber laser cutter, the price is different according to the function and configuration. Please contact us for more details.
It depend on the material thickness you want to processing and the running frequency of the machine. Please let us know which material do you want to process and the thickness.
The metal laser cutter is only for metal sheet, such as stainless steel, carbon steel, copper, aluminum, iron, galvanized, etc..
