Cabinets Wooden Door Hot Vacuum Press Laminating Machine
Description
Automatic Vacuum Press Machine
Vacuum Membrane Press is Used for Membrane Door, Mica Door, Membrane Kitchen Shutter.PVC MDF door vacuum membrane press machine is fully automatic vacuum coating equipment, can be a variety of high-grade PVC , transfer film, leather furniture surface coating of paste.The high degree of automation and simple operation, processing time, working temperature, vacuum value , all automatic control, to ensure product quality, improve production efficiency.

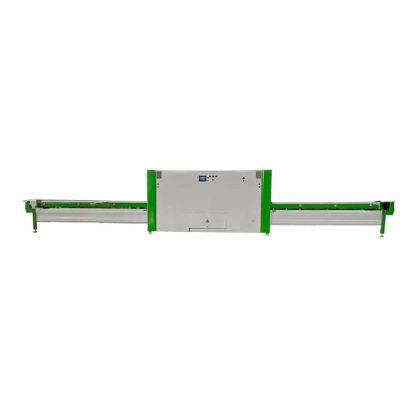

This is a high-performance, stable and reliable large negative pressure double-station laminating machine, specially designed for the surface laminating process of high-efficiency and high-quality flat materials (such as door panels, plates, etc.). This equipment integrates advanced heating, vacuum, control and transmission technologies to ensure a fast, uniform and smooth lamination process, effectively enhancing production efficiency and product yield.
Application of Vacuum Membrane Press Machine
The lamination vacuum press machine specialize in manufacturing vacuum membrane press machines,which press the PVC film or veneer on the carved MDF board,by the heating, vacuum and air pressure, including negative machine(only has vacuum), positive and negative machine(vacuum and air pressure), and profile wrapping machine. The machines are used widely in the furniture industry, such as cabinet, doors, wardrobe,desk,bed,etc.wooden furniture.
Automatic Laminating Machine Parameter：
| Technical indicators | parameter |
| Model | iGC-L2480 |
| Dimensions | 9200mm(L)*1800mm(W)*1700mm(H) |
| Packaging size | 3200mm(L)*1800mm(W)*2200mm(H) |
| Work pressure | ≥0.098 |
| Temperature | 160-210℃ |
| Total power | 28kw |
| Actual power consumption | 7-8kw |
| Weight | 1.5T |
| Screen | 7-inch touch screen |
| Ac contactor | Chint |
| Heating tube | Quartz heating tube 1.6kw/1.8kw |
Core Advantage of Vacuum Laminating Machine
1. Intelligent control, convenient operation
Ø It adopts a 7-inch large-sized touch screen + PLC control system, with a friendly human-machine interface and intuitive and simple operation.
Ø It has a memory function, can store multiple process parameters, and can be called up with one click, greatly improving work efficiency and reducing repetitive Settings.
2. High-efficiency and uniform heating, energy-saving and heat preservation
Ø Three-dimensional heating system: Main heating at the bottom of the working plate + upper heating + auxiliary heating around the edges, combined with rapid heating quartz heating tubes, to achieve rapid and uniform temperature rise.
Ø High-density aluminum fins ensure efficient heat conduction and dissipation.
Ø The thickened rock wool insulation layer effectively reduces heat loss, has excellent insulation performance, and significantly saves energy and electricity (the actual power consumption is about 7-8kW).
3.Strong and stable vacuum, perfect molding
Ø The core vacuum component adopts a high-quality direct-connected vacuum pump (XD-100) with German technology, featuring strong suction.
Ø Ensure that the film is closely adhered to the surface of the workpiece, with good forming effect, no bubbles or wrinkles, and improve the appearance quality of the product.
4. Reliable transmission and stable operation
Ø The transmission shaft drives the walking system, which is structurally solid and reliable.
Ø The design that never goes off track ensures the long-term stable operation of the equipment and effectively improves the yield of finished products.
5.Thoughtful design enhances quality

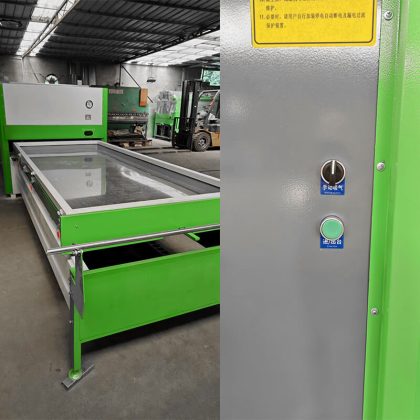

Ø The workbench is equipped with an inflation function, effectively preventing the film from folding and ensuring a smooth and flat surface of the laminated film.
6.Flexible customization to meet demands
Ø The standard workstation size is 1.3m x 2.5m / 3.0m, and non-standard sizes can be customized according to the specific requirements of customers.
7. High-quality configuration, durable and long-lasting、
Ø The core electrical components all adopt first-line domestic brands (Taikong touch screen, ChinT contactor/leakage protection, Xinling relay, Xikexi vacuum pump, quartz heating tube), and national standard pure copper high-temperature wire.
Ø The overall performance is stable and durable, ensuring the long-term reliable operation of the equipment.
