Three-process cutting machine For Sale with cheap price

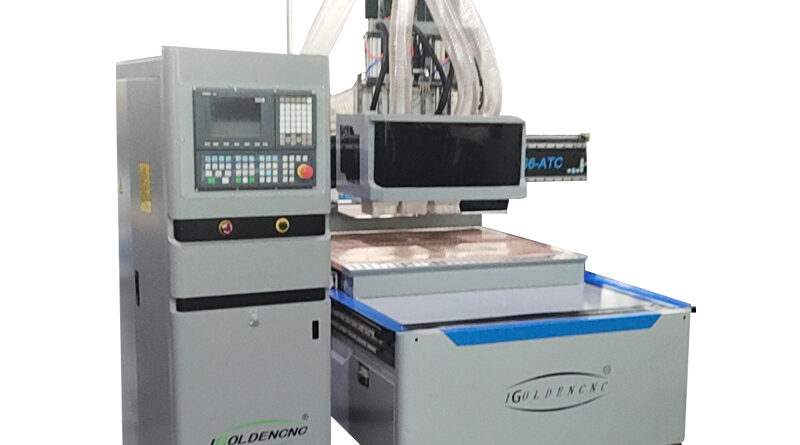

The three-process cutting machine is a CNC machine tool that can automatically change tools and process plates. The three-process cutting machine can automatically change the tool for processing according to the different skills of customized panel furniture production and cabinet door production. The tool change speed is fast, and the tool change can be completed within 8 seconds. The three-process cutting machine is a dual-purpose equipment. Customized furniture can use three-process cutting machine, and cabinet door type and carving can also use three-process cutting machine.

CNC cutting machineFeatures of three-process cutter

  1. Multiple spindle motors work at the same time, which can realize the processing of small batches of products. Advanced automatic tool change sequence, without manual intervention, the sequence is executed automatically. It adopts the domestic leading vacuum adsorption table, equipped with a vacuum pump with strong adsorption force, and a six-zone design, which can strongly adsorb materials in different areas, greatly improving work efficiency.
  2. The body of the three-process cutting machine is processed by low temperature tempering to ensure that the body has small deformation, good rigidity, high strength, firmness and no deformation, and is durable.
  3. The key to the equipment is to disassemble it from the fine parts. Coupled with high-torque servo motor, high-precision rack and pinion drive, high-power bumpy operation, the machine tool has the advantages of stable operation, low noise, high speed and high positioning accuracy.
  4. Powerful dust removal system to ensure that dust does not fly during processing
  5. The strong adsorption system ensures that the plate does not deviate during the processing process, which greatly improves the processing efficiency and prevents the waste of the plate.
  6. Automatic refueling smoothing system with just one touch. Regular maintenance is easy to achieve.
  7. Fast running speed and high efficiency. The idling speed can reach more than 45-60 meters per minute, and the speed can reach more than 20 meters in the engraving and manufacturing of corrugated boards.
  8. Adopt export operating system, split keyboard control, black LCD screen, more powerful functions.
  9. It has functions such as breakpoint memory, continuous engraving after power failure, and processing time prediction to ensure continuous processing in the open air.

    CNC cutting machine

Three-process cutting machine programming requirements

  1. It is very important to carry out reasonable technical analysis and technical planning for processing needs.
  2. Determine the tool type for active tool change according to the status of the processing batch.
  3. In order to improve the application rate of the machine tool, try to use tool presetting outside the machine as much as possible, and fill in the measurement standard into the tool card, so that the operator can determine the sequence of tool compensation parameters before running.
  4. Try to divide the sequence of different process contents into different sub-sequences.
  5. Except for the tool change sequence, the programming method of the machining base is very similar to that of the CNC milling machine.

CNC Router Nesting Machine

The full function of the three-process cutter

  1. The body of the three-process cutting machine is welded by 8mm thick seamless steel pipe. The five-face milling base is used for milling guides, drilling and tapping machine tools to ensure machine tool accuracy. temporary.
  2. On the basis of ensuring the accuracy and service life of the bed, the three-process cutting machine selects well-known brands and central accessories at home and abroad to ensure that each accessory can reflect greater functions.
  3. The R&D department of the company develops and improves the structure and installation of the whole machine according to the customer’s response and the service life of the accessories.
  4. From the bed structure of the machine to the end of the final device, every step of the machine is a device.
