This Stone bridge saw has everything a technologically advanced bridge saw needs to have today: 5 interpolated axis, spindle with half inch fitting with trough-spindle lubrication, tilting table up to 85°, vacuum manipulator system for parts movement during automatic cut process, on-board camera, blade presetting and stone thickness probe.

The stone bridge cutting machine can realize cutting, chamfering, edging, profiling, milling, drilling, slotting, rounding, circular arc and other special-shaped processing through five-axis linkage. It is simple to operate and has strong practicability. A variety of configurations are available.

The price of a 5 axis stone CNC bridge saw can vary widely depending on several factors, such as the size of the machine, the brand, the features, and the country of origin. Generally, a high-quality machine with advanced features and a large cutting capacity will be more expensive than a smaller, basic machine.

As of my knowledge cutoff date of September 2021, the price of a 5 axis stone CNC bridge saw can range from $100,00 to $50,000 USD or more. However, prices are subject to change and may vary depending on market conditions and other factors.

It’s important to note that the initial cost of the machine is just one factor to consider when investing in a CNC bridge saw. Other factors such as maintenance, training, and technical support should also be taken into account. It’s recommended to research different brands and models, read reviews, and compare prices and features to find the best option for your specific needs and budget.

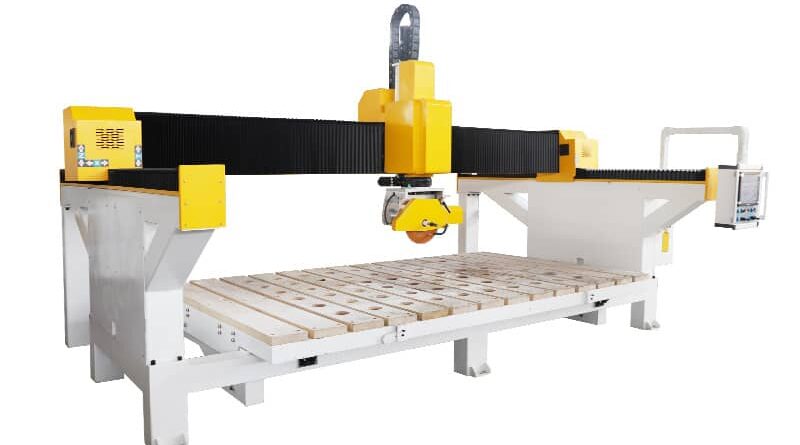

The machine in details of the Stone CNC Bridge Saw

This machine is a fully interpolated 5 axis bridge saw. The Y axis is moved by a gantry system. This guarantees a perfect square of the bridge. Automatic head rotation from 0° to 400° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.

The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by brushless motors through high precision helical gears and racks.

This machine comes with the “absolutely zero” technology, which allow the machine to work without doing the homing process.

It has an extremely easy to use interface, realized to facilitate the interaction between the operator and the machine.

It can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files and “G-code” ( RS-274 machine tool programming language).

The cable-drag chain and the electric cables used on the machine are purposely made for use at high speed (robot materials).



Parameter of the 5 axis Stone CNC Bridge Saw



Product	CNC Stone Bridge Cutting Machine	Item No.	iGS-B
Machine	Machine Body	Square Tube Welding Structure
	Gantry	Steel Structure
	Blade	4kw
	Worktable	Pneumatic Lifting Worktable
	Guide Rails	Taiwan HIWIN
	Rack	Taiwan YYC
	Ball Screw	Taiwan TBI
Electronic	Driver	Japan YASKAWA Servo Drive and Servo Motor
	Reducer	Japan SHIMPO
	Electrical Components	France SCHNEIDER
Software	Intelligent Control System	Full-automatic CNC Touch Screen
Optioned	Blade Saw, Grinding Wheels, Milling Cutter, Tapper
