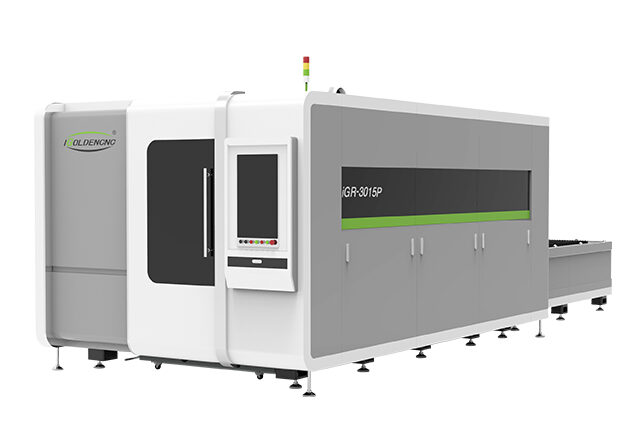

Protective Cover Enclosed Fiber Laser Cutting Machine

CNC Laser Cutting Machine for Sheet Metal

Laser Metal Cutting Machine, equipped with 1000w-12000w fiber laser, can cut 0-25mm thick carbon steel plate, 0-20mm thick stainless steel plate, aluminum plate, 0-12mm thick copper plate, standard working area is 1500*3000mm, can be upgraded It is an independent cabinet with built-in air conditioner for 1500*4500mm, 2000w and above power, and can be installed with a side rotation device to upgrade to a dual-use fiber laser cutting machine.

It is more stable than CO2 mixed laser cutter, which is mainly used for cutting metals (steel, aluminum, copper, brass, titanium, alloy, iron) and nonmetals (wood, plywood, MDF, plastic, acrylic, leather, fabric).

Protective Cover Enclosed Fiber Laser Cutting Machine

A laser cutting machine for sheet metal is a machine that uses a high-powered laser beam to cut and shape sheet metal materials. The machine is designed to accurately and precisely cut through a variety of sheet metal materials, including steel, aluminum, brass, copper, and other alloys.

The machine works by directing a high-powered laser beam through a series of mirrors and lenses that focus the beam on the material to be cut. The laser beam melts, burns, or vaporizes the metal material along a pre-determined cutting path. The machine is operated using specialized software that allows the user to input the design and control the machine’s movements.

Laser cutting machines for sheet metal are commonly used in various industries, including automotive, aerospace, electronics, and construction, among others. They offer several advantages over traditional cutting methods, including faster processing times, greater accuracy, and reduced material waste. Laser cutting is also a non-contact process, which means there is no physical contact between the cutting tool and the material, reducing the risk of damage to the material and the cutting tool.

Advantage of the Metal Cutting Machine

  1. Saves the space in the workshop.
  2. Fiber laser cutting and CO2 laser cutting software installed in one PC system, more convenient to operate.
  3. Taiwan Delta servo motor and ball-screw transmission guarantee the precision of outcome quality (repeat accuracy + 0.02mm).

We have different choices of the fiber laser powers for your working requirements (1000W/1500W), which are suitable for maximum thickness up to 10mm on carbon steel, 6mm on stainless steel, 3mm on aluminium plate, etc.

Full Protective Fiber Laser Cutting MachineFull Protective Fiber Laser Cutting Machine

Feature of the Protective Fiber Laser Cutter Machine


The automatic lubrication system provides a fixed amount of lubricating oil for the equipment to ensure the high-speed operation of the flatbed laser cutter, with abnormal alarm and liquid level alarm functions. The system greatly improves the cutting accuracy and effectively extends the service life of the transmission mechanism.


Intelligent travel protection, automatic monitoring of the operating range of components, installation of international machine tool standard limit springs, the laser cutting head is built-in capacitor height adjustment function, collision stop, improve equipment and life safety protection, reduce the incidence of accidents, improve cutting efficiency.


Automatic alarm function for abnormal working status of equipment, and push it to the operation interface through the control center, improve the efficiency of flatbed laser cutting machine abnormal troubleshooting, reduce potential safety hazards, and reduce maintenance costs.
