The 4-axis CNC Router is divided into the rotary type and spindle swing type, including right rotary axis engraving machine (customizable front rotary device), 2D&3D CNC engraving machine, 3D stereoscopic engraving machine, four-axis CNC machining center, foam carving machine, spindle swing engraving machine, and lock hole machine.

A 4-axis CNC router is commonly used in industries such as woodworking, sign-making, and metalworking to cut, carve, and engrave materials such as wood, plastic, and metal. They are suitable for small to medium-sized production runs and are ideal for creating complex shapes, curves, and contours with high precision.

The 4-axis CNC Router is also known as 4-axis CNC wood router, 4-axis CNC router machine, best -axis CNC router, 4-axis CNC milling machine, 4-axis CNC machine, 4-axis milling machine, 4-axis CNC engraving machine, 4-axis CNC router engraver machine, 4^th axis CNC router, 4-axis machining, 4-axis engraving machine, 4-axis wood CNC machine, 4-axis wood carving machine.

One thing to keep in mind when looking for an affordable 4-axis CNC router is to ensure that the machine is capable of meeting your specific needs. This includes the size of the machine, the size of the cutting bed, the spindle power, and the software and control system. It is also important to consider the reliability and support provided by the manufacturer, as well as the availability of replacement parts and accessories.

Product categories of 4 Axis Cnc Router Machine, we are specialized manufacturers from China, CNC Router Machine, 4 Axis CNC Router Machine suppliers/factory, wholesale high-quality products of CNC Routers For Woodworking R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!

What is a 4-axis CNC Router?

The 4-axis CNC Router machine refers to the computer numerical control equipment including X, Y, Z, and additional rotation axis. It has 3 straight coordinates and 1 rotating coordinate. 4-axis CNC Router engraving machines are usually equipped with rotating axes or rocking spindles, so they can contact the workpiece from different angles and effectively work, so as to realize the 3D processing of cylindrical, curved and circular surfaces.

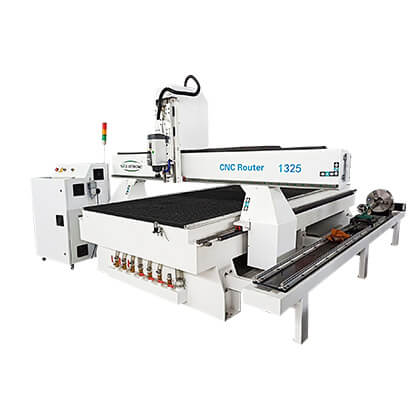

4 Axis Wood CNC Router Machine

Advantages:

1) Heavy duty thicker and bigger welded steel tube frame–more stronger

2) With one removable 200mm rotary device on the machine, it is very suitable for process round wood, cylinder objects

3) DSP B18 control system with handle, can support 4 Axis CNC Router machine, easy operation.

• With Linear type tool changer, this machine can change more than 8 tools automatically in the engraving process.
• The spindle can swing to 180 degree which make the machine can process 3D and 4D objects.
• Made with heavy duty frame and gantry, the machine has a stronger structure.
• All the specifications can be customized according to your own actual processing needs.

What’s the worktable size of the 4 axis CNC Router?

4×4, 4×6, 4×8, 5×10 and 6×12 in feet;

48×48, 48×96, 60×120, 80×120, and 80×160 in inch;

1212, 1218, 1224, 1325, 1530, 2030 and 2040 in milometer.

Of course, the worktable size can be customized as your requirements.

This is a 4-axis engraving machine with automatic tool change. In the process of machining, the automatic tool change can be realized quickly according to the different processing requirements. In addition, this machine has the common feature of a 4-axis machine like the spindle can swing 180 degrees, so it is suitable for processing some complex work pieces such as 3D or 4D work pieces. Therefore, this 4-axis engraving machine has a wider processing range than ordinary 3-axis CNC router. That is to say that it is more suitable for users with diverse processing needs.

4 axis CNC Router Application

Wood furniture industry： Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

How does the 4 axis CNC Router work?

The first one is similar to the 3 axes CNC Router machine with X, Y, and Z axes, but it also includes a rotating device called A axis. The moving path is X-Z-A, Y-Z-A.

The other is a four-axis linkage CNC Router, which realizes 180-degree machining by swing the spindle. Its motion path is X-Y-Z-A, X-Y-Z-B, and X-Y-Z-C. 4-axis CNC router engraving machine, at the time of carving, according to 360 degrees, each step takes 0.000* degrees. At the same time, the high speed rotating spindle on the carving machine cuts the processed material fixed on the table by cutting tools according to the material processed. We can carve various 2D or 3D relief graphics and characters designed in the computer to realize automatic carving.

In daily application, the 4 axis milling machine worktable can not only achieve plane engraving but also realize irregular 3D machining and 3D carving of the irregular workpiece.
