Fiber Pipe Laser Cutting Machine for Metal Tubes and Metal Pipes

What is the Fiber Pipe Laser Cutting Machine?

Fiber Pipe Laser Cutting Machine is also called laser tube cutting machine, laser tube cutter, laser pipe cutter, which is mainly refer to a laser cutting machine with fiber laser source for square/round/rectangular/oval metal pipes and tubes, so you can call it fiber laser tube cutting machine, fiber laser tube cutter, fiber laser pipe cutting machine, fiber laser pipe cutter.

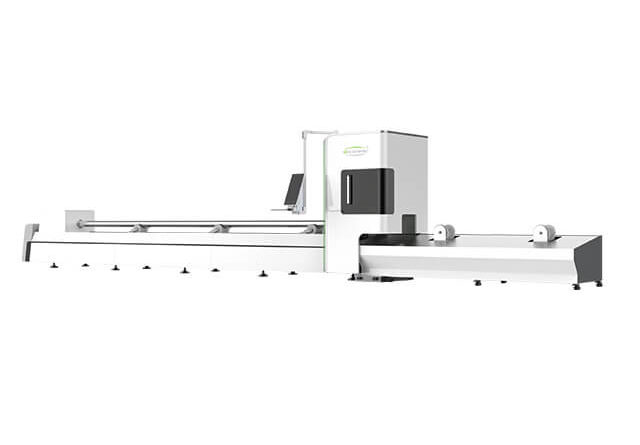

Fiber Pipe Laser Cutting MachineFiber Pipe Laser Cutting Machine

Machine Advantages

1.The whole machine is highly integrated, has good system performance and long life, automatic lubrication;

2.Highly automated, strong anti-interference ability, fast dynamic response speed;

3.Centralized operation, flexible processing, automatic unloading, convenient and fast pneumatic chuck clamping;

4.Simple maintenance and maintenance, basically maintenance-free;

5.The use of special laser tube cutting software and the core technology of efficient cutting are the fundamental guarantee for effectively saving materials and improving cutting efficiency.

Advantages of Laser Tube Cutting Machine with Fiber Laser Source

  1. The fiber laser tube cutting machine can complete a variety of cutting shapes tubes, the tube surface arbitrarily complex curve graphics processing, graphics difficulty without restrictions. After cutting the tube section does not require secondary processing, it can be welded directly, greatly reducing the production period, creating enormous value for the enterprise.
  2. The laser tube cutter can cut lines and holes with different diameters from different directions on the tubes&pipes and cut column and crossed lines at the end of branch pipe to meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
  3. The laser pipe cutter can cut inclined with the main circular pipe.
  4. The fiber laser pipe cutter can cut branch pipe intersected with the main circular pipe.
  5. The fiber laser tube cutter can realize angle groove face, square hole, waist-shaped holes cutting.
  6. The fiber laser pipe cutting machine adopts very thin laser beam which can be used on small part cutting and complicated patterns and reach to a polished effect.
  7. Two rotary tables use double driver synchronous drive, metal tubes are not easily destroyed when processing, with high precision and high processing efficiency.

Features

1.240 front and rear dual pneumatic chucks;

2.Range of clamping pipe diameter: 20mm-240mm;

3.Transmission mode: gear transmission;

4.Rated speed: about 80r/min;

(For round pipes according to the outer diameter, for rectangular pipes according to the largest diagonal)

Applications

CNC laser cutting machine, also called fiber laser cutting machine, fiber laser cutter, laser cutter, metal laser cutter, metal laser cutting machine, designed for high precision metal plate cutting processing.

Hot applications is cutting for stainless steel, carbon steel, aluminum, copper, galvanized sheet and other metal plate.

Fiber Pipe Laser Cutting MachineFiber Pipe Laser Cutting Machine
