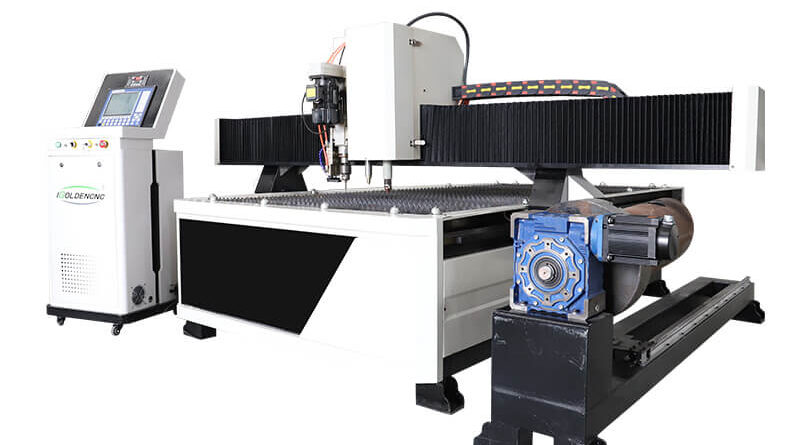

cnc plasma cutter-02

CNC Cutting Plasma Machine VS Laser Cutting: What’s The Difference?

One question we often hear when people come to us with projects is, “Should I use laser cutting or cnc cutting plasma machine for my metal fabrication?” As a cnc plasma cutting machine company, we have the knowledge and know-how to be able to give you our professional recommendations based on your budget, your needs, and your final project. Today, we wanted to take a minute to talk about what the differences are between laser cutting metal and plasma cutting, and what projects we would use these technologies on.

cnc plasma cutter-02How They Work
Simply put, a CNC plasma cutting machine uses the power of electrical current and compressed gas to cut through metal. Plasma cutting technology was first developed in the 1950s in order to cut copper, stainless steel, aluminum, and other metals that could not be cut with flame. Plasma cutters utilize concentrated electrical currents and high-velocity gas flow, usually oxygen or nitrogen. This creates intense heat, which melts a narrow slot in the metal. The gas then propels the molten material from the bottom of the cut. Plasma cutting machines are often used in fabrication shops, construction, automotive repair and restoration, and other similar industries. cnc cutting plasma machine are often used in fabrication shops, automotive repair, and restoration, industrial construction, etc. Like a laser cutter, a plasma cutter ultimately cuts through metal by melting it.

Laser cutting, however, uses laser optics and CNC to direct a focused beam of high-powered light. This light melts, burns, or vaporizes the material, forming a narrow slot. At the same time, auxiliary gas blows out slag from the cutting slot, eliminating the need for a secondary process. Laser cutting is typically used for industrial manufacturing applications to cut a variety of materials, from flat-sheet metal to structural and piping materials.Laser cutting has a tighter tolerance of just .002 inches, making it ideal for precision cutting or parts that have intricate notching.

What They Cut
For most applications involving metal, plasma cutting systems are difficult to beat, especially at thicknesses greater than ¼”. Plasma cutters slice neatly through a wide variety of metals with a thickness of up to 80mm, providing fast, buttery smooth cuts with consistent edge quality and very little dross over the life of a consumable set. In addition, plasma cutters are more forgiving with certain types of materials, including metal that is oxidized or otherwise imperfect, and can cut through metals with reflective properties, which are impossible to cut with laser. Plasma cutters can produce part accuracies better than 0.008”, and are quite fast, processing 16 gauge mild steel at over 200 IPM and 1” thick mild steel at over 45 IPM. Plasma cutting machines are also the optimal choice for certain types of cuts, such as bevel cuts, which can be performed right on the machine. This eliminates secondary operations and provides faster turnaround time.

Laser’s main advantage over plasma is the wide variety of materials it’s capable of cutting. In addition to most types of metal, laser cutters can handle wood, glass, ceramic, rubber, PVC, and even leather and textiles. Laser cutters can also perform a wide variety of cuts at narrow kerf widths (0.006” to 0.015”) and excel at fine, detailed cuts such as small holes, intricate notching, and delicate engraving. Laser is faster when cutting thinner metals. Laser machines are capable of cutting thinner metals at over 1000 IPM and can produce a cut edge squareness of less than 1 degree. However, laser can cause some heat distortion, particularly on thicker plate. It is also slower than plasma on most thicknesses, typically ranging from 20 to 70 IPM.

Both plasma and laser cutters require special accommodations to operate safely. While plasma cutting machines require personal safety devices for protection from glare, noise, and gases, this technology doesn’t require specialized gear and a safety enclosure around the entire system as laser sometimes can.

Startup Cost
If you’re looking for the most bang for your metal-shop buck, you can’t beat plasma in terms of initial investment. Depending on the type and size of machine, as well as its features, most shop-quality CNC plasma cutting machines can be purchased in the range of $50,000 to $100,000. Laser, meanwhile, is by far more expensive. While used laser cutters can sometimes be found for around $250,000, a new machine frequently runs over $300,000, sometimes to as much as $1 million. When it comes to cost with laser versus plasma, plasma is by far the least expensive up-front investment.

Operating Cost
Even when factoring in operating costs such as consumables, abrasive, power, gas, and routine maintenance, plasma is once again the clear winner. Most cnc cutting plasma machine run at about $15/hour, whereas laser cutting machines generally cost around $20/hour to operate. The aforementioned safety considerations also drive up the cost of operating a laser cutting system, since special accommodations must be made. The bottom line for your bottom line when comparing plasma versus laser? Plasma is the best value.

Head-to-Head Performance Testing
If you’re still not certain which is best, plasma versus laser, for your metalworking applications, this study conducted by Hypertherm will likely prove helpful. In tests pitting X-Definition plasma cutters against fiber laser, ISO ranges compared well across mild steel at a variety of thicknesses. At speeds selected to optimize both quality and productivity, plasma showed less average edge deviation from perpendicular and lower variability in deviation when cutting through 6-mm thick mild steel, even after 1,000 starts. With mild steel at a thickness of 12mm, similar results were achieved. In addition, edge quality was smoother with the plasma machine, and plasma delivered excellent perpendicularity and hole quality.

So which is better, plasma or laser? While the ultimate answer depends on the materials you’re cutting, what types of cuts you’ll be making, and your budget, for most metalworking, the clear winner is a plasma cutting machine. Plasma produces fast, high-quality, precision cuts through all types of metal while avoiding the hazards of laser, not to mention its high cost. For great cutting at a great value, you can’t beat plasma.
When thinking about purchasing a CNC cutting machine, it is important to start your search by considering your priorities i.e. cut quality, precision, productivity, cost, etc.

cnc plasma cut signs

Plasma and fiber laser machines both have their own unique strengths and weaknesses.

If your main concern is budget and you are mainly going to cut thicker mild steel, aluminium, and stainless steel, an HD plasma cutter will be your best choice. Plasma cutters are known for their high productivity, wide cutting range, and low acquisition cost. They offer a more than adequate cut quality for a wide range of applications and can mostly produce bolt-ready holes.

If your main concern is cutting to very high tolerances, and you mostly cut thinner (<10 mm) sheets, a fiber laser will almost always be your best option. Their only disadvantage is the relatively large investment cost and relatively narrow cutting range. However, for thinner sheets, their impeccable edge quality and speed make them an attractive option.

It is always worth gaining some expert advice from a range of manufacturers and looking at the samples.
