Exchange Table Fiber Laser Cutting Machine
The dual-worktable fiber laser cutting machine comes standard with a fast exchange platform, which is convenient for loading and unloading. The plate cutting and loading and unloading can be carried out at the same time. The processing efficiency is high, the operating cost is low, and the equipment is affordable.It is the first choice for processing and manufacturing enterprises.
Metal Laser Cutting Machine
High Performance 1KW/2KW/3KW/4KW Fiber Laser Cutting Machine Sheet Metal Laser Cutter with Exchange Platform.
The exchange platform metal laser cutting machine is the first choice for large-scale mass production of sheet metal processing. Automatic loading and unloading saves more time. And the double working platform greatly reduces the time for loading and unloading and improves processing efficiency.
Exchange Table Fiber Laser Cutting Machine is equipped with two cutting pallets which can be automatically switched. When one is used for cutting, the other one can be loaded or unloaded with sheets. This greatly saves the loading and unloading time, improves the working efficiency and saves cost. The laser cutter provides high cutting efficiency and precision, smooth cutting, clean, no burr, low material loss, small heat-affected zone and nearly no thermal deformation. It is suitable for large-scale continuous processing and is the preferred equipment for metal fabricators.
EXCHANGE PLATFORM
Faster and more stable.
Improve processing accuracy and safety.
Increase productivity.

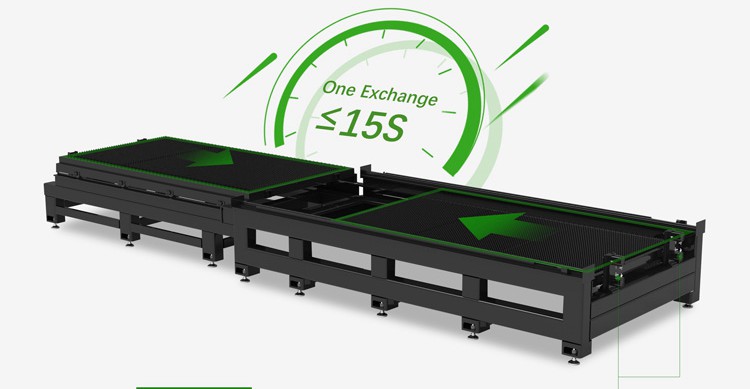

Double motor double chain automatic exchange platform, the platform is composed of a welded frame, with a support grid on which the workpiece is supported, and the worktable can bear a load of up to 1000KG; there are universal balls around the worktable, driven by Yaskawa servo motor, stable exchange speed within 8-15s, effectively preventing deviation and collision.
The two modes of linkage or independent operation can be set flexibly, which is convenient to deal with faults such as jams, easy to clean up the waste below, meet the loading and unloading of special plates, and improve production efficiency.
Exchange Table Laser Cutting Machine
1. Carbon steel plate welding, structural stability, high temperature annealing
2. Five-axis center finishing, high strength and good rigidity
3. such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
4. Automatic focus adjustment, no manual
5.It adopts an up and down exchange platform;The converter is responsible for controlling ,the exchanging motor;
The machine is able to finish the platform exchanging within 15s.
Sheet cutting:More and more metal fabricators across the country have made the switch to Fiber Laser cutting systems for two great reasons: they increase productivity and reduce operating costs. If you want to upgrade your metal cutting operation Fiber lasers will dramatically increase cut speeds while reducing operating costs.
Maximum cutting speed of sheet metal cutting
Firstly, Fiber lasers deliver maximum cutting speeds with high accuracy and repeatability boosting productivity to maximum levels. The fiber laser offers significantly faster processing speeds thanks to astonishing acceleration rates of linear drives and higher power resonators. These are significant advantages for thinner sheet metal cutting as production rates can double or even triple while operating costs decrease by up to 50%.
Secondly, Easily cuts a variety of materials and thicknesses in sheet metal cutting
Thirdly, Fiber lasers produce incredible cutting speeds on thin materials and can easily cut thicker materials. They can cut stainless and mild steel up to 25 mm and aluminum up to 20 mm with a 6KW resonator. Fiber lasers also have the ability to process reflective metals such as brass and copper making them an ideal and flexible tool for job shops.
Fiber lasers for reduced utility costs in sheet metal cutting
With their high optical efficiency and more effective use of electrical power fiber lasers reduce power consumption. The longer life of diode-based resonators and extended time between maintenance sessions deliver added value for sheet metal fabricators everywhere.
Exchange Table Fiber Laser Cutting Machine Product Features
When the cutting head senses the raised part, it will automatically avoid, to protect the laser cutting head, also can improve the work efficiency;2) Laser source
Now Igolden LASER can use Raycus and IPG laser source. IPG is the Germany brand, higher price. Raycus is Chinese most popular brand, now is using widely in fiber laser machines. Price is lower than IPG, and service is more quickly. We also have self-developed laser souce. For lower power such from 1000w-4000w, we can provide IGOLDEN brand laser source. 3) Machine bed
The machine body is plate welding model. Hans’, BYSTRONIC, they are using plate welding machine body now. Heavy duty structure, with strength steel welded structure, and the internal stress is eliminated by annealing. It can be keep the shape more than 10 years. High stability reliability.
FIBER LASER CUTTING MACHINE really cost-effective, open-type, single platform, simple structure, convenient installation, high precision, fast speed, simple operation, convenient maintenance, affordable equipment, low operating cost, it is a sheet metal processing enterprise customized product.At the same time, the top imported parts and strict assembly process ensure the machine safe, efficient and high-precision stable operation.
fiber laser cutting machine as one classic model, widely used in life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people’s daily life.
Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
