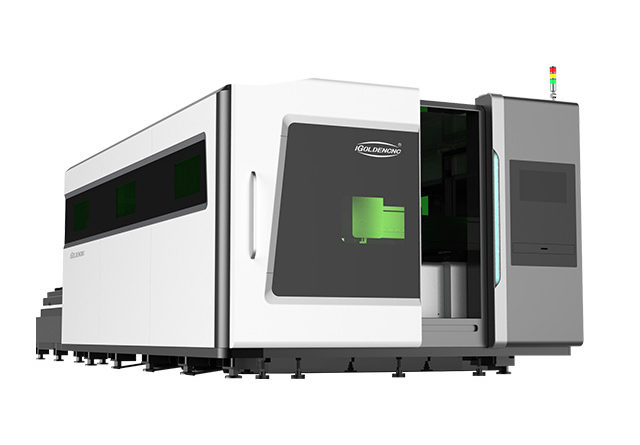

Full Protective Fiber Laser Cutting Machine for SaleThorpe
What is the Full Protective Fiber Laser Cutting Machine?
This Full Protective Fiber Laser Cutting Machine has a fully enclosed protective cover with an exchange table.The full-protective laser cutting machine is equipped with an exchange table and a laser protective observation window. The protective design meets the European CE safety production standards to ensure the safe operation of the equipment and the personal safety of the operators. Equipped with 1000w-6000w fiber laser, the standard working area is 1500*3000mm, which can be upgraded to 1500*4500mm, and the power of 2000w and above is equipped with an independent cabinet with built-in air conditioner.
Advantage of the Full Protective Fiber Laser Cutting Machine
1.It can cut sheet metal by Air compressor.
2.Laser source 2years warranty.
3.Easy control system.
Environmental Protection and Energy Saving:
1.Higher electro-optical conversion rate: fiber cutting machine’s electro-optical conversion rate about 30%, it is 3 times higher than co2 fiber cutting machine.
2.Higher cutting speed and efficient, 2 time faster than YAG or CO2 laser.
3.Low cost: Machine power consumption is 20% -30% of same power co2 laser cutting machine , every hour consumed 0.5w to 1.5 w electricity,it is very easy to maintain: no need to adjust optical path.
Machine Details of the Full Protective Fiber Laser Machine
Transmission System: Double Driver Transmission
Guide rail ( Taiwan )
Super high precision. hardness, long life, tolerance less than 0.02mm/min)
At the beginning of the design, we select 5-10 times normal load guide rail, which it can adapt to more stringent use of the environment and more long-term life.
Gear Rack ( Taiwan )
make sure machine accuracy/use life more longer
Japan Yaskawa Servo Motor / Driver / France Motovrio PO Flange Output
Adopts Imported from Japan Yaskawa servo system, the world’s top servo motor, with high precision large torque, stable performance, long life
Feature of the Full Protective Fiber Laser Machine
Equipped with auto-tracking modules. The cutting head always keeps a safety distance from cutting surface, and has the touch stop function to reduce the risk of collision and accident rate.
Intelligent Stroke Protection
Auto monitoring of beam and cutting parts’ travelling range. The system can feed abnormalities back and give orders to stop quickly, so as to protect the equipment.
Intelligent System Alarm
Give alarm if any abnormality, conduct self-inspection. Main interface can display abnormal alarm, reducing hidden dangers and improving equipment troubleshooting efficiency.
