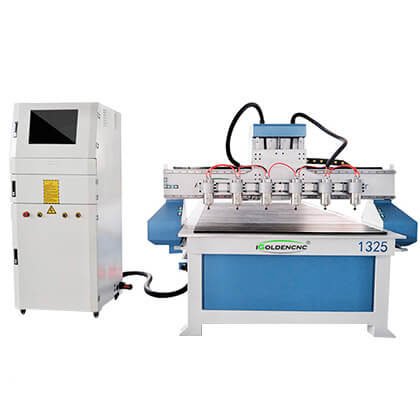

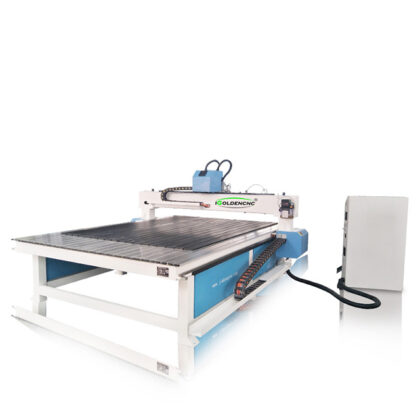

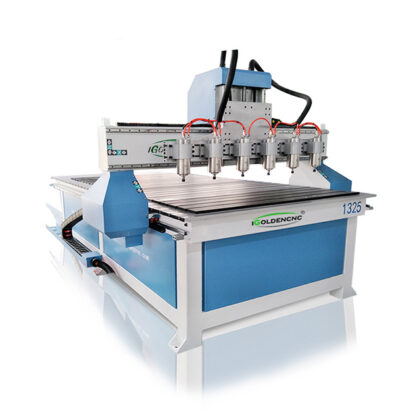

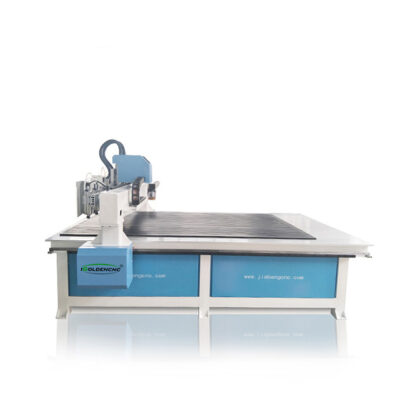

6 Spindles CNC Woodworking Machine for 3D Carving

Item No.: iGW-3AM16

Multi spindles CNC router machine is specially designed for customers with batch production needs. 6 spindles work together to process 6 products at one time. It is mainly used in the furniture industry, decoration industry, musical instrument industry, mould industry, crafts industry, building model industry, advertising industry, etc.

Category: CNC Router>>CNC Wood Router>>3 Axis CNC Router
Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $8000-$9000

Get Latest Price:

Description

Who is it for?

The CNC woodworking machine with 6 spindles, processing on multiple materials at once, perfect for bulk woodworking, the affordable model designed by iGOLDENCNC, and it can be equipped with rotary device for 3D carving, combined with a competitive set of configurations. Hot applications include:

>Woodworking industry: solid wood doors, cabinet doors, paint-free doors, craft wooden doors, 3D wave boards, screens, craft fans, game panels and cabinets, computer desks, panel furniture products and so on;
>Advertising industry: advertising signage, logo production, acrylic cutting, plastic film making, and batch production of advertising decoration products of various materials;
>Other industries: Various large reliefs can be carved, which is widely used in batch processing in the craft gift industry.

What makes it unique?

Popular with the manufacturer with processing requirement of bulk and small size, which can save labour and time, the iGW-3AM series CNC woodworking machine is suitable for bulk woodworking processing.

>Flexible use, fast cost recovery;
>Wide range of applicable materials and industries;
>Heavy industry quality, stable operation for 10 years;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.

Applications of 3 axis CNC woodworking machine

Wooden Window Hollow

Wooden Door Hollow

Wooden Crafts Carving

Wooden Board Carving

Aluminum Plate Hollow

Solid Wood Embossing

LED Words Processing

Acrylic Carving

Positioning Accuracy ±0.05mm
Repositioning Accuracy ±0.02mm
Command Language G Code
Flash Memory 128G
Max. Rapid Travel Rate 50000mm/min
Max. Working Speed 20000mm/min
Spindle Power 1.5kw water cooling*6
Spindle Speed 18000rpm/min
Working Voltage 380V/50Hz
Running Environment Temperature About 25℃
Relative Humidity <85%
Ps. Adjustment is available according to locally requirement
Working Area (X,Y,Z) 2000*3000*200mm
Packing Size 3700*2900*1900mm
N.W./G.W. 2600/2800kg

Features of 3 axis CNC woodworking machine

6*1.5kw Water-cooled Spindles

Standard equipped with one head to drive six 1.5kw water-cooled electric spindles, water circulation cooling, copper nozzle, high-temperature grease lubrication, body made of high-quality stainless steel, imported ceramic ball bearings, precision grinding inner hole, ISO20 knife handle, high precision chuck, ER11 dynamic balancing nut and 6mm chuck.
Double-layer dustproof sealing structure, the body is smooth and not easy to rust, the motor has high concentricity and high rotation accuracy.
The bearing has a long service life, high speed and low noise, stable operation, no chipping during processing, high precision of the spindle, and maintenance-free.

Welding Machine Body

Rectangular tube welding bed, honeycomb structure with reinforcing bars, welded by a rectangular pipe with a diameter of 150*150mm and a thickness of 6mm. After large-scale gantry milling, all the installation holes are accurately and thoroughly processed.
Higher tensile strength and dimensional stability. It can effectively improve the accuracy of the bed, reduce the machining error of the workpiece, and increase the resistance and stability of the guide rail.
The loss of the equipment is reduced. The accuracy of the machine is kept for a long time, and it does not change for 20 years. The stability of the equipment is good, and the machining error due to the vibration of the bed body is reduced.

The Third-generation Gantry

The gantry is machining with the thickened rectangular tube that can bear the weight of fewer than 500 kilograms and annealed.
High strength, good rigidity, lightweight, no deformation, long service life.
The damage to the motion conduction device is small, the resistance to the driving motor is small, the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use cost are reduced.

Aluminum Profile Worktable

The aluminium profile worktable is composed of several thick aluminium profiles, which are stable and not deformed, and are easy to clamp.
The aluminium profile worktable is to fix multiple aluminium profiles on the bed and stick a layer of PVC to prevent damage to the cutter. Each aluminium profile has a groove in the middle for placing the platen fixing material for easy processing.
Moisture resistance, corrosion resistance, acid and alkali resistance, rust and wear resistance, non-magnetic, strong stability.
Flexible fixing plate, stable and wear-resistant, zero maintenance cost, no deformation, prolong service life.

High-precision Transmission System

The positioning accuracy of the machine is 0.02mm, the maximum running speed is 50,000mm/min, and the machine working life up to 10 years.

Taiwan HIWIN Guide Rails and Rack

Japan YASKAWA Servo Driver

Japan SHIMPO Reducer

Upgraded Intelligent Control System

Taiwan LNC System.

>Strong compatibility compatible with many CAD / CAM software such as Type3 / Artcam / Castmate / Proe / UG / Carved Wentai;
>Advanced file pre-processing function helps users to correct errors in processing files in time;
>Advanced three-dimensional curve prediction algorithm, the polyline is stable, ensuring the speed and accuracy of the curve;
>It has the function of breakpoint and breakpoint engraving, and the function of automatic error correction when returning to the origin, which effectively guarantees the processing accuracy when working for a long time;
>The system is easy to operate, responds quickly, and quickly removes obstacles, which is conducive to learning.

High-precision Automatic Tool Sensor

High precision automatic tool sensor, 1um repeatability, suitable for 95% of the operating system in the market, easy to install, super-hard alloy for the blade surface, stable and durable, IP67 class deep waterproof.
Compared with the manual toolset, the machining accuracy and work efficiency are improved. The operation time is saved by 70%, the machining accuracy is increased by 30%, and the defective rate of products is reduced.

France Schneider Electric Components

Advanced anti-interference ability, stable signal, suitable for the different working environment, high safety.
The European safety standard, stable operation for 10 years, ensure engraving machine circuit safety, safety performance improved 50%.

Automatic Lubrication System

Guaranteed machine’s lubrication all the time, ensure the smooth operation of the CNC router, with abnormal alarm and liquid level alarm. It will extend the service life of the transmission system and whole machine, and reduce maintenance time, increase your profits.

Options of 3 axis CNC woodworking machine

Spindle Optioned

1.5kw and 2.2kw water-cooled spindle can be optioned as your requirements.

The woodworking machine is used for carving and relief in bulk.

Worktable Optioned

Aluminium profile worktable: three-axis router machine standard table, manual clamping plate, the most economical;

Vacuum adsorption worktable: equipped with 7.5kW vacuum pump adsorption, effectively improve machining accuracy and efficiency;

Both vacuum adsorption and T-slot worktable: the cost is higher, but the big board, the small board, the thin plate, the thick plate can realize the effective fixed and the high precision processing.

Control System Optioned

Taiwan LNC system is the standard system.

Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

Operation System Optioned

NC-STUDIO system is the standard system.

DSP system, Mach3 system can be optioned.

Table Rotary Lathe Device

Improve the engraving quality and efficiency of the cylinder and reduce the difficulty of operation.

> It is not necessary to expand the surface to calculate the rotary engraving path;
> Completing the tool path calculation at one time without rotating the workpiece repeatedly;
> Reduce the finishing allowance; the tool path can be roughed in layers;
> Realize local rotation processing; can set angle range and length range;
> There is no positioning mark, and the rotary engraving processing adopts the whole shaft mode, and the engraving machine generates an automatically closed rotary engraving processing path.

It can save time, because 6 spindles can working at the same time Improve efficiency.

It can working on metal, acrylic, foam, plastic and so on.

It can work both together and separated.

Yes,we will ,if you come to China, we will offer you free training until you can use machine freely. And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

It can do 3D sculpting.
