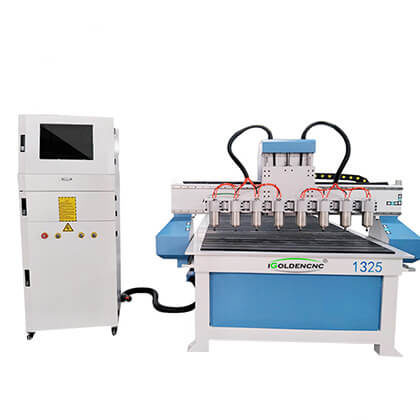

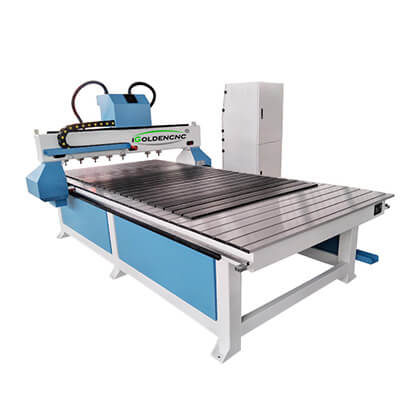

8 Spindles Wood CNC Router Machine for 3D Carving

Item No.: iGW-3AM18

Multi spindles wood CNC router machine is specially designed for customers with batch production needs. 8 spindles work together to process 8 products at one time. It is mainly used in the furniture industry, decoration industry, musical instrument industry, mold industry, crafts industry, building model industry, advertising industry, etc.

Category: Category: CNC Router>>CNC Wood Router>>3 Axis CNC Router

Response time: Within 1 hour
Supply Ability: 300 sets/month
Price Range: $8500-$9500

Get Latest Price:

Description

Who is it for?

The wood CNC router with 8 spindles, processing on multiple materials at once, perfect for bulk woodworking, the affordable model designed by iGOLDENCNC, and it can be equipped with rotary device for 3D carving, combined with a competitive set of configurations. Hot applications include:

>Woodworking industry: solid wood doors, cabinet doors, paint-free doors, craft wooden doors, 3D wave boards, screens, craft fans, game panels and cabinets, computer desks, panel furniture products and so on.
>Advertising industry: advertising signage, logo production, acrylic cutting, plastic film making, and batch production of advertising decoration products of various materials.
>Other industries: Various large reliefs can be carved, which is widely used in batch processing in the craft gift industry.

What makes it unique?

Popular with the manufacturer with processing requirement of bulk and small size, which can save labour and time, the iGW-3AM series wood CNC router is suitable for bulk woodworking processing.

>Flexible use, fast cost recovery;
>Wide range of applicable materials and industries;
>Heavy industry quality, stable operation for 10 years;
>Easy to operate, quick obstacle removal, conducive to learning;
>Supported by industry leader iGOLDENCNC.

Applications of 3 axis wood CNC router

Cabinet Door Processing

Wooden Door Processing

Wooden Mold Relief

Wooden Crafts Processing

Wooden Plate Hollow

Wooden Frame Processing

Aluminum Carving

Acrylic Engraving

Positioning Accuracy ±0.05mm
Repositioning Accuracy ±0.02mm
Command Language G Code
Flash Memory 128G
Max. Rapid Travel Rate 50000mm/min
Max. Working Speed 20000mm/min
Spindle Power 1.5kw water cooling*8
Spindle Speed 18000rpm/min
Working Voltage 380V/50Hz
Running Environment Temperature About 25℃
Relative Humidity <85%
Ps. Adjustment is available according to locally requirement
Working Area (X,Y,Z) 2000*3000*200mm
Packing Size 3700*3000*1900mm
N.W./G.W. 3000/3200kg

Features of 3 axis wood CNC router

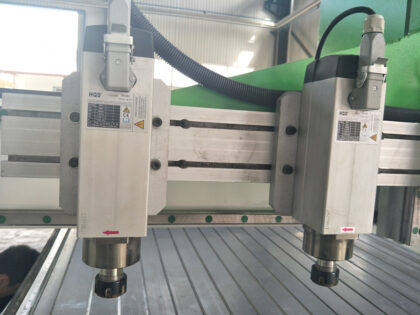

8*1.5kw Water-cooled Spindles

High precision, low noise, stable operation, and ensure no chipping during processing.

>Dustproof and waterproof, the head bearing adopts double dustproof design, which effectively prevents foreign objects from entering;
>High rotation accuracy, adopting precision ceramic bearings to ensure the rotation accuracy of the electric spindle during high-speed grinding;
>Fine workmanship, water-cooled heat dissipation design, ER20 dynamic balance nut with high accuracy, pure copper galvanized water nozzle has good rust prevention effect;
>Using special high temperature resistant enamelled wire coil, strong power and longer life.

Welding Machine Body

Rectangular tube welding bed, honeycomb structure with reinforcing bars, welded by a rectangular pipe with a diameter of 80*140mm and a thickness of 6mm. After large-scale gantry milling, all the installation holes are accurately and thoroughly processed.
Higher tensile strength and dimensional stability. It can effectively improve the accuracy of the bed, reduce the machining error of the workpiece, and increase the resistance and stability of the guide rail.
The loss of the equipment is reduced. The accuracy of the machine is kept for a long time, and it does not change for 20 years. The stability of the equipment is good, and the machining error due to the vibration of the bed body is reduced.

The Third-generation Gantry

The gantry is machining with the thickened rectangular tube that can bear the weight of fewer than 800 kilograms and annealed.
High strength, good rigidity, lightweight, no deformation, long service life.
The damage to the motion conduction device is small, the resistance to the driving motor is small, the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use cost are reduced.

Aluminum Profile Worktable

The aluminium profile worktable is composed of several thick aluminium profiles, which are stable and not deformed, and are easy to clamp.
The aluminium profile worktable is to fix multiple aluminium profiles on the bed and stick a layer of PVC to prevent damage to the cutter. Each aluminium profile has a groove in the middle for placing the platen fixing material for easy processing.
Moisture resistance, corrosion resistance, acid and alkali resistance, rust and wear resistance, non-magnetic, strong stability.
Flexible fixing plate, stable and wear-resistant, zero maintenance cost, no deformation, prolong service life.

High-precision Transmission System

The positioning accuracy of the machine is 0.02mm, the maximum running speed is 50,000mm/min, and machine working life up to 10 years.

Taiwan HIWIN Guide Rails and Rack

Japan YASKAWA Servo Driver

Japan SHIMPO Reducer

Upgraded Intelligent Control System

Taiwan LNC System.

>Strong compatibility compatible with many CAD / CAM software such as Type3 / Artcam / Castmate / Proe / UG / Carved Wentai;
>Advanced file pre-processing function helps users to correct errors in processing files in time;
>Advanced three-dimensional curve prediction algorithm, the polyline is stable, ensuring the speed and accuracy of the curve;
>It has the function of breakpoint and breakpoint engraving, and the function of automatic error correction when returning to the origin, which effectively guarantees the processing accuracy when working for a long time;
>The system is easy to operate, responds quickly, and quickly removes obstacles, which is conducive to learning.

High-precision Automatic Tool Sensor

High precision automatic tool sensor, 1um repeatability, suitable for 95% of the operating system in the market, easy to install, super-hard alloy for the blade surface, stable and durable, IP67 class deep waterproof.
Compared with the manual toolset, the machining accuracy and work efficiency are improved. The operation time is saved by 70%, the machining accuracy is increased by 30%, and the defective rate of products is reduced.

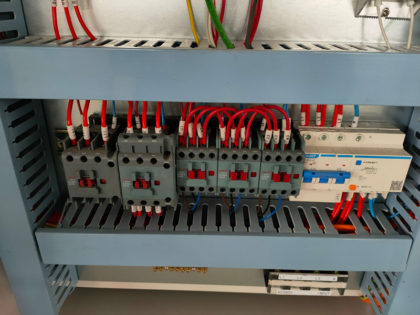

France Schneider Electric Components

Advanced anti-interference ability, stable signal, suitable for the different working environment, high safety.
The European safety standard, stable operation for 10 years, ensure engraving machine circuit safety, safety performance improved 50%.

Automatic Lubrication System

Guaranteed machine’s lubrication all the time, ensure the smooth operation of the CNC router, with abnormal alarm and liquid level alarm. It will extend the service life of the transmission system and whole machine, and reduce maintenance time, increase your profits.

Options of 3 axis wood CNC router

Spindle Optioned

1.5kw and 2.2kw water-cooled spindle can be optioned as your requirements.

The woodworking machine is used for carving and relief in bulk.

Worktable Optioned

Aluminium profile worktable: three-axis router machine standard table, manual clamping plate, the most economical;

Vacuum adsorption worktable: equipped with 7.5kW vacuum pump adsorption, effectively improve machining accuracy and efficiency;

Both vacuum adsorption and T-slot worktable: the cost is higher, but the big board, the small board, the thin plate, the thick plate can realize the effective fixed and the high precision processing.

Control System Optioned

Taiwan LNC system is the standard system.

Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

Operation System Optioned

NC-STUDIO system is the standard system.

DSP system, Mach3 system can be optioned.

Table Rotary Lathe Device

Improve the engraving quality and efficiency of the cylinder and reduce the difficulty of operation.

> It is not necessary to expand the surface to calculate the rotary engraving path;
> Completing the tool path calculation at one time without rotating the workpiece repeatedly;
> Reduce the finishing allowance; the tool path can be roughed in layers;
> Realize local rotation processing; can set angle range and length range;
> There is no positioning mark, and the rotary engraving processing adopts the whole shaft mode, and the engraving machine generates an automatically closed rotary engraving processing path.

There is additional 2 spindles, and can process 8 pieces at the same time.

When we claim complimentary life time technology assistance, we suggest we’ll do every little thing we can to support your device for as long as you possess it. We provide free and hassle-free technology assistance using email, phone, as well as net connectivity. In unusual situations, it might be needed to send out a specialist bent on service your machine at an added cost determined by the certain circumstance. While on-site assistance is not cost-free, it is really uncommon because our phone, email, as well as on-board medical diagnosis systems permit our group to be more hands. We have the top-rated assistance in the market, as well as we can often resolve your issues from another location.

Contact our support team immediately and we’ll help you troubleshoot. In rare cases, we may need to provide on-site support, but we suggest getting in touch with our team first as in many cases on-site will not be necessary.

The cnc woodworking machine can be used for flat, curved and cylindrical engraving.

We can guarantee good quality,but if happened,please contact us immediately, take some pictures, we will check on the problem,and solve it asap.
