Six Sides CNC Drilling Machine

Six Sides CNC Drilling Machine Routers for Woodworking Furniture

What is the Six Sides CNC Drilling Machine Routers?

Six Sides CNC Drilling Machine Routers is a high-end CNC equipment for drilling and grooving of plate furniture production. Six-sided CNC drilling can complete six-sided processing, grooving and milling at one time. Easy to operate, flexible to use, free from manual intervention. The hinge hole can be processed in the linkage, and the thickness of the plate can be mirrored on both sides within a certain range.

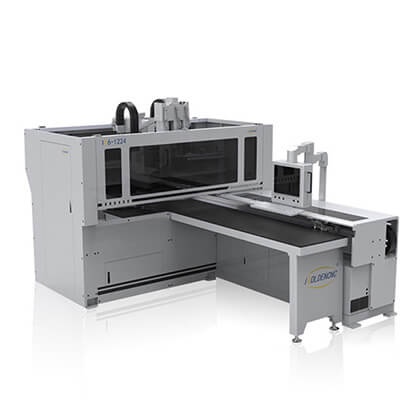

Six Sides Cnc Drilling Machine

Feature of the Six Sides CNC Drilling Machine

Two sets of drill units/boring head at the top and below: It can finish all drilling and grooving/slotting on six surfaces at one time with high efficiency, high precision.

Intelligent double clamps: Floating clamps smart avoidance, large or small panels both can be processed, the maximum speed of clamp movement can reach 130m/min.

Intelligent unloading system: After processing boards, it can be automatically transferred to the sorting area.

Intelligent operating system: Computer operation, CAD drawing, CAM import, can directly import open data formats such as DXF, MPR/XML, and easy to operate. It can be docked to the United States CV, France Topsolid, Haixun, 3VJIA, E-WOOD, Yunxi, 1010, and other well-known design and nesting software at domestic and abroad.

Advantage of the Six Sides CNC Drilling Routers

  1. Complete six sides processing and slotting and milling at one time; Easy to operate, flexible to use, and free from manual intervention.
  2. Equipped with a rear feed roller, so the processing plate supports two directions (front and rear) to come out. As for rear direction, an optional power expenditure roller or a side roller can be selected.
  3. Equipped with front, rear, left, right and horizontal hole machining auxiliary pressure rollers; With alll-round auxiliary pressure processing to ensure the accuracy of horizontal hole machining during workpiece processing.
  4. Designed with vertical pressure roller to ensure the machining accuracy of vertical hole and slotting.
  5. Manufactured with upper and lower spindles, so there is no need to turn the plate for forward and reverse slotting.
  6. With automatic dust collector; With extra long X slide rail (5.1 m), which can reduce times of feeding and picking during long workpiece processing, and improve processing efficiency.
  7. Allowed to be used for joint processing of hinge holes; The sheet can be mirrored on both sides within a certain thickness range.

Six Sides CNC Drilling Machine RoutersSix Sides CNC Drilling Machine RoutersSix Sides CNC Drilling Machine RoutersSix Sides CNC Drilling Machine Routers

What is used for?

It is mainly used for drilling and grooving of plywood furniture or customized cabinet. It can process the mounting holes of two-in-one and three-in-one connectors for common plywood furniture or customized cabinet. It also has the function of processing some types of invisible connectors.

It can achieve milling and groove on standard square boards and special-shaped boards.

It automatically recognizes the board information by wireless scanner scan the barcode label on the board. One time position, it can automatically feed, automatically process all hole positions and grooves, no need to turn the board.

High precision, fast speed, no need to adjust the machine for processing various boards. Simple operation, especially suitable for plywood furniture or customized furniture production.
