The importance of 4 Axis ATC EPS Foam Carving Machine

The importance of 4 Axis ATC EPS Foam Carving Machine

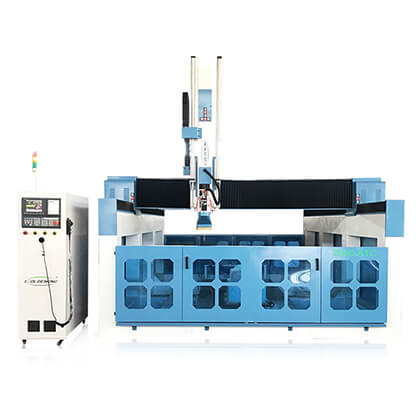

4 Axis ATC EPS Foam Carving Machine, the spindle can swing 180 °, optional 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale 3D engraving, and curved surface processing is available, also known as foam CNC router machine, mold CNC router machine, EPS CNC carving machine.

EPS Engraving MachineFoam Carving Machine

What is the EPS?

The EPS is made of foamed plastic,with buffer, insulation, heat insulation, sound insulation, anti-vibration etc function.The food box,electrical product shipping,the fire protection of the construction industry, the sound insulation material, and the packaging of high-tech products area all depend on EPS foam. So choosing a good EPS foam engraving ATC 4 axis cnc router machine is especially important.

What is the ATC?

ATC is refer to Automatic Tool Changer. ATC CNC router is a type of CNC machine with automatic tool changer spindle, the spindle usually carries tools magazine of 6 cutters or 8 cutters or 10 cutters or 12 cutters. The CNC router tools can automatically change according to the working requirements when the CNC router ATC works, no need of manual operation, which will improve the working efficiency greatly. There are two types ATC CNC machine, which includes linear ATC CNC router and Disc ATC CNC router. The best ATC CNC machine adopts a rotary 4th axis for 3D cutting and carving.

4 Axis ATC EPS Foam Carving Machine main configuration:

#Working area:1300*3700*1200mm

#9KW Air-cooled ATC spindle.Option China HQD and Italy HSD brand.The spindle can rotated 180-degree.

Drive:Yaskawa 850W, Japan

#Taiwan Hiwin square rails

#Taiwan Syntec control system

#Japan Yaskawa servo motor and drivers

#Delta inverter

#vacuum table and pump

#8 ISO30 tool change system

#Tool set:Automatic tool setting

Inverter:Delta

System:Taiwan SYNTEC control system+handwheel

Rack:X, Y axis 960mm helical gear

Screw:Z axis screw

Voltage:3 Phase/380V/50HZ

Main features

1)This CNC Foam Router use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.

2)The route of Z axis can be heightened to 900mm, so it is suitable for processing large-scale and super-thick material

3)The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.

4)The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.

Foam Carving Machine

Application

1.Mold industry: casting mold, automobile, ship, yacht, aviation industry, rail transportation etc.

2.Musical instruments: large 3D curved surface and shape processing.

3.Applicable materials: wood, EPS, other non-metal carbon mixed compound, etc.
