What Is a Sheet Metal Bending Machine？

Bending machines are integral to the manufacturing industry and come in various types and sizes. With further classification based on features, characteristics, and applications, choosing the right tool for your business can be daunting.

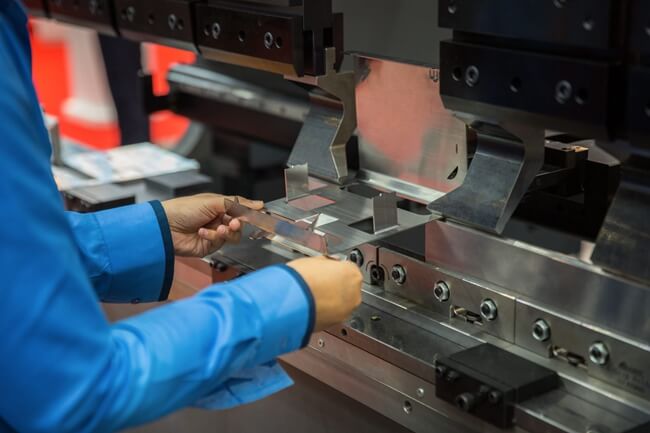

Sheet Metal Bending Machine

Bending machines are industrial tools used to shape metal parts at different angles. These machines apply pressure evenly, minimizing the risk of metal fatigue and breakage during the bending process. They are compatible with various materials, including steel, copper, aluminum, and even tougher ones like titanium.

The art of bending, a crucial technique in manufacturing, has been practiced since the early metal ages. From shaping basic tools to crafting intricate metal works, bending has remained a fundamental skill throughout history. Even today, metal bending machines are in high demand across aerospace, construction, and automotive industries.

In addition to major industries, bending machines are widely used in various applications, including hospital furnishings, boat and swimming pool equipment, road signs and posters, bathroom fixtures, taps and faucets, as well as prams and pushchairs.

What Are the Functions of a Sheet Metal Bending Machine?

A bending machine is basically a forging machinery that plays a key role in sheet metal processing, especially for large sheets. Its functions range from bending and stretching to rounding and punching metals. So you can imagine the possibilities it offers across industries- light industry, aviation, shipbuilding, metallurgy, instrumentation, and more!

The workbench, made up of a base and pressure plate, sits on the bracket. The base connects to the clamping plate through a hinge mechanism. Within the base, you’ll find essential parts like seat shell housing and coil structure that are covered with protective plates.

All these elements make sure that when metals are placed between them for bending purposes, they can be securely held in place while receiving force from the machine. When the wire is connected to the coil, it creates an attractive force on the pressure plate. This forces the thin plate to be clamped between the pressure plate and the base.

Because the system uses electromagnetic force binding, the pressure plate can be shaped to fit a variety of workpiece needs. It can also process pieces that have side walls. You can replace the bending machine mold and can meet your diverse demands.

Advantages of Sheet Metal Bending Machines

Precision and Accuracy: Sheet metal bending machines are designed to provide high levels of precision, ensuring that each bend is consistent and meets specified angles and dimensions. This accuracy is crucial in industries where tolerances are tight.

Versatility: These machines can bend various materials, including different types of metals like aluminum, steel, and copper. They can also handle a range of thicknesses, making them suitable for a wide array of applications.

Efficiency: Modern sheet metal bending machines are equipped with advanced technology that speeds up the bending process. This efficiency reduces production time and increases output, benefiting manufacturers in terms of productivity.

Reduced Material Waste: With precise bending capabilities, these machines minimize the risk of over-bending or under-bending, leading to less scrap material. This can result in significant cost savings over time.

Durability and Longevity: Built to withstand heavy use, sheet metal bending machines are made from high-quality materials that ensure durability. This longevity translates to a lower overall cost of ownership for businesses.

Improved Safety: Many modern bending machines come with safety features that protect operators during the bending process. This enhances workplace safety and reduces the risk of accidents.

Customization Options: Many bending machines offer customization features, allowing users to program specific bends and shapes. This flexibility is ideal for manufacturers who need to produce unique or complex designs.

Ease of Use: User-friendly interfaces and automation in many sheet metal bending machines simplify operation, allowing even less experienced operators to achieve quality results with minimal training.

Support for Automation: Some sheet metal bending machines can be integrated into automated production lines, enhancing overall workflow and efficiency. This capability is particularly advantageous for high-volume manufacturing.

Adaptability: These machines can be adapted to various industries, from automotive to aerospace, making them an essential tool for many manufacturing processes.

By leveraging these advantages, businesses can enhance their manufacturing capabilities, improve product quality, and reduce operational costs.

Mastering Sheet Metal Bending

Have you ever wondered about the art and precision behind sheet metal bending? In this detailed blog post, we explore the fascinating process of transforming flat metal sheets into complex forms. Our expert mechanical engineer uncovers the secrets behind various metal bending techniques, from press brake bending to mold bending, while discussing materials like aluminum and steel. Discover the essential equipment and methods that make sheet metal bending a crucial part of modern metal fabrication.

Sheet metal bending is a core forming process used to modify the geometry of metal sheets or panels by creating angular bends along a straight axis. This versatile method can produce various profiles, such as V-shapes, U-shapes, and even more intricate designs, making it essential for fabricating components across industries like automotive, aerospace, and construction.

Two primary methods dominate sheet metal bending: mold bending and press brake bending. Each method has distinct advantages and suits different production needs:

Mold bending:
- Ideal for parts with intricate geometries and complex structures
- Suitable for both low-volume prototypes and high-volume runs
- Uses custom-designed dies for precise, repeatable results
- Ensures excellent dimensional stability and consistent quality
Press brake bending:
- Best for larger sheet metal components
- Flexible, allowing quick changeovers between different bend profiles
- Cost-effective for low to medium production volumes
- Offers precise control over bend angles and radii with adjustable tooling

Choosing between these methods depends on factors such as part complexity, production volume, material properties, and required tolerances. Both techniques play a crucial role in modern metal bending techniques, providing unique characteristics tailored to specific fabrication needs.

Sheet Metal Bending Machine: Comprehensive Analysis and Troubleshooting of Common Faults

Hydraulic sheet metal bending machines, commonly used in sheet metal fabrication, are essential for achieving precise bends. However, like any complex machinery, they can encounter various issues during operation. This guide provides an in-depth analysis of common faults in CNC bending machines, including potential causes and troubleshooting methods.

1. Excessive Noise from the Hydraulic sheet metal Bending Machine Oil Pump

One frequent issue is the oil pump noise in CNC press brakes, often due to oil leakage or low oil levels, which leads to oil pump suction issues. If the oil viscosity is too high at low temperatures, it increases oil absorption resistance, impacting the efficiency of the CNC hydraulic system. Furthermore, clogged oil suction filters or damage during installation can cause significant noise, leading to long-term damage if not addressed. It’s essential to regularly inspect the hydraulic oil pump and ensure proper installation to prevent such issues.

2. No Pressure Build-up in the CNC Hydraulic System

When a bending machine’s hydraulic system fails to build up adequate pressure, it might result from oil pump steering errors, oil pump damage, or even a malfunctioning pressure gauge. Ensure that the pressure control valve isn’t blocked and that the compensation amplifier is functioning correctly. These components play critical roles in maintaining proper pressure in the CNC press brake hydraulic system.

3. Slow Pressure Build-up in Bending Machine with REXROTH Hydraulic System

In some cases, REXROTH hydraulic systems used in bending machines may experience slow pressure build-up due to blocked pressure valve ports or malfunctioning cartridge valves. This problem may be further complicated by electrical issues, such as solenoid valve failures, which can delay the pressure build-up process in the bending machine hydraulic system.

4. Impact Sounds During Hydraulic sheet metal Press Brake Operation

Impact sounds can occur during bending machine operation, often caused by loose rails or improper installation of the grating ruler. This mechanical issue can result in misalignment and poor bending accuracy. Addressing such mechanical issues promptly can improve the machine’s overall performance, particularly in terms of bending precision.

5. Slider Fails to Perform Quick Action

The failure of the CNC press brake slider to perform quick actions could be linked to a fast-down valve malfunction or lack of electrical signals to the electromagnetic proportional directional valve. Mechanical issues such as a tight guide plate or cylinder can also prevent the slider from functioning properly. Regular maintenance and inspections ensure the smooth operation of the bending machine’s slider.

6. Prolonged Pause at the Slider Speed Conversion Point

When the bending machine experiences a long pause at the speed conversion point, it may be due to air entering the oil tank’s upper chamber, which delays pressure build-up. An incomplete closure of the filling valve or a low flow rate through the self-suction pipe can also contribute to this issue. Ensuring proper closure and pressure regulation is crucial for efficient machine performance.

7. No Slider Slowdown in Bending Machine

A common issue in bending machines is the slider failing to slow down, typically caused by electromagnetic proportional reversing valve malfunctions, or system pressure that cannot be built. Regular checks on the filling valve and associated pressure components help maintain the machine’s operational integrity.

8. Slider Vibration, Swinging, or Noise During Operation

Vibration and noise during the slider’s movement in bending machines often point to air bubbles in the hydraulic oil, excessive friction between slider rails, or uneven gaps in the guide plate. These mechanical faults can disrupt the smooth operation of the CNC hydraulic press brake. Regular lubrication and inspection of the hydraulic system can minimize such issues.

9. Synchronization Errors During Slider Slowdown

Synchronization errors when the CNC press brake slider slows down are typically caused by faults in the CNC system parameters or proportional directional valves. These errors can lead to inaccurate bending angles and affect overall machine efficiency. Regularly fine-tuning the system’s parameters ensures smooth operation.

10. Oscillation and Jitter at the Lower Dead Center

When the CNC press brake’s slider oscillates or jitters at the lower dead center, it’s often a sign of issues with the grating ruler or the pressure parameters of the CNC system. Oscillation can lead to inaccurate bending angles and should be addressed immediately to avoid further complications in metal sheet bending operations.

11. Slow or No Return of the Slider

The slow return or complete failure of the bending machine slider to return to its original position could be due to a damaged electromagnetic proportional reversing valve or low return pressure. Such issues can affect the overall production speed and precision of the machine, especially during repetitive bending tasks.

12. Vibrations During Slider Return

If the bending machine experiences vibrations during the slider’s return, the issue is often linked to improper pressure settings or faults in the system parameters. Adjusting the pressure and ensuring proper calibration of the proportional valve helps mitigate these vibrations, ensuring smooth machine operation.

13. Slider Sliding at the Top Dead Center

A sliding slider at the top dead center of the bending machine can indicate issues with the back pressure valve, hydraulic oil levels, or the stability of the sealing ring. Addressing these components can help prevent unwanted sliding, which can impact the accuracy and safety of sheet metal bending operations.

14. Large Bending Angle Errors

Large errors in the bending angles produced by Hydraulic sheet metal bending machines can result from a compensation cylinder not fully restoring to zero, loose quick clamping, or issues with the grating ruler. Variations in the material, such as thickness or stress, can also cause inconsistencies in metal bending angles.

15. Significant Bending Errors in CNC Press Brakes

If a CNC press brake produces significant bending errors, it could be due to the deformation of the upper and lower dies, problems with the worktable, or insufficient compensation for deflection. Ensuring proper die alignment and inspecting the machine’s components can help achieve more precise sheet metal bending results.

16. Hydraulic Line Leakage in CNC press brakes

Leaks in the CNC hydraulic system are typically due to improper tubing installation, vibration, or external impact. Ensuring that all hydraulic lines are correctly installed and secured with clamps is vital to preventing leaks that could affect the machine’s performance.

17. Important Considerations for Hydraulic System Installation and Maintenance

During the installation and maintenance of the CNC hydraulic system, it’s crucial to avoid tampering with any sealed valves. After servicing the system, always replace the hydraulic oil and clean the oil tank to ensure the system functions optimally.

18. Common Rear Stopper Faults in Hydraulic sheet metal press brakes

Issues with the rear stopper in Hydraulic sheet metal bending machines, such as failure to move or drive alarms, often arise from mechanical problems or faulty encoder cables. Checking the X and R axes for instability and ensuring the proper alignment of the servo motor can help prevent these faults.

Main Components and Structure of the Bending Machine

We previously touched on the essential components of a bending machine when discussing its functions. Now, let’s delve deeper into these critical parts:

1. Bend Die

The bend die, also referred to as the bend form or radius die, is a vital component of rotary-draw bending machines. Its primary role is to shape the tube during the bending process, allowing it to achieve the desired curvature. Selecting the appropriate bend die is crucial, as it directly impacts how well the tubes adhere to specific radii. When working with applications that demand tight bends with small radii, choosing a high-quality bend die becomes even more critical.

2. Clamp Die

The clamp die secures the tube onto the bend die, preventing any slipping during the bending operation. This component is essential for providing stability and accuracy, which are necessary for achieving precise bends in metal tubes or pipes. For instance, when using a pipe bending machine to create intricate forms or angles on a stainless steel pipe, the clamp die firmly holds it against the bend die, minimizing movement that could lead to errors.

3. Pressure Die

The pressure die ensures that the tube or sheet metal accurately conforms to the contour of the bend die. This component applies consistent and even pressure throughout the bending process, resulting in precise bends. Think of it as a guiding hand, maintaining uniformity and accuracy with each bend.

4. Wiper Die

Located immediately after the bend die, the wiper die serves to prevent the formation of humps in the inner radius during the bending process. As the material becomes plastic and starts to deform, it can create wrinkles and larger deformations. Incorporating a wiper die after the bend die effectively mitigates these issues, resulting in smoother bends.

5. Mandrel

When bending steel and aluminum tubes, the mandrel plays a critical role in achieving satisfactory results. Its main function is to prevent the tube from collapsing during the bending operation, ensuring precise and consistent bends each time. The mandrel becomes particularly necessary for challenging tasks, such as bending small radii or working with thin tubes or harder materials. Without a mandrel, a delicate tube might collapse under pressure, jeopardizing the entire bending process. Therefore, this handy component is essential for successful tube bending operations.

Understanding these components is crucial for anyone involved in the bending process, as they collectively contribute to the machine’s overall performance and the quality of the finished product.

Materials and Common Metals

Sheet metal bending is a vital process in modern manufacturing, where material selection significantly impacts product performance and cost-effectiveness. This section explores the most commonly used metals in sheet metal bending, highlighting their properties, applications, and unique characteristics that affect formability and the overall quality of the final product.

Steel

Steel, an iron-carbon alloy, is the cornerstone of sheet metal bending due to its exceptional strength-to-cost ratio and versatility. Various grades of steel provide a range of properties tailored for different bending applications:

Mild Steel (Low Carbon Steel): Contains 0.05% to 0.25% carbon, offering excellent formability and weldability. Its low yield strength allows for easy bending, making it ideal for automotive body panels, structural components, and general fabrication. However, its susceptibility to corrosion requires protective coatings for many applications.
Stainless Steel: Alloyed with a minimum of 10.5% chromium, stainless steel boasts superior corrosion resistance due to the formation of a self-healing chromium oxide layer. Common grades include:
- 304 (austenitic): Offers excellent formability and corrosion resistance; widely used in food processing equipment and medical devices.
- 316 (austenitic): Enhanced corrosion resistance from molybdenum content; preferred for marine and chemical processing environments.
- 430 (ferritic): Magnetic with good formability; commonly used in automotive trim and appliances.
High-Strength Low-Alloy (HSLA) Steel: Delivers improved strength and formability compared to mild steel, achieved through micro-alloying elements like niobium or vanadium. HSLA steels are increasingly utilized in the automotive and aerospace industries for weight reduction while maintaining structural integrity.

Aluminum

Aluminum alloys offer an optimal balance of lightweight properties, corrosion resistance, and formability, making them essential in industries that prioritize weight reduction and durability:

Alloy 5052: Known for its excellent formability and corrosion resistance; commonly used in marine applications, electronic enclosures, and fuel tanks.
Alloy 6061: Offers good strength and weldability; widely utilized in structural components, transportation equipment, and machine parts.
Alloy 3003: Features high formability and moderate strength; ideal for general sheet metal work, HVAC components, and cookware.

Key advantages of aluminum in sheet metal bending include:

Superior strength-to-weight ratio, enabling lightweight designs
Natural corrosion resistance due to oxide layer formation
Compatibility with various surface finishing techniques, including anodizing and powder coating
Excellent thermal and electrical conductivity

Copper

Copper’s unique combination of high electrical conductivity, thermal management properties, and formability makes it irreplaceable in specific applications:

Electrical conductivity: 100% IACS (International Annealed Copper Standard), establishing the benchmark for electrical applications.
Thermal conductivity: 401 W/(m·K), facilitating efficient heat dissipation in thermal management systems.
Antimicrobial properties: Inherent characteristics that make copper suitable for healthcare and public space applications.

Common copper grades for sheet metal bending include:

C11000 (Electrolytic Tough Pitch): Known for its high conductivity, commonly used in electrical busbars and roofing.
C12200 (DHP Copper): Offers excellent formability, making it ideal for plumbing and HVAC applications.

Brass

Brass, an alloy primarily composed of copper and zinc, offers a unique combination of properties that make it valuable for both functional and aesthetic applications:

Excellent machinability and formability: Enables the creation of complex shapes and fine details.
Corrosion resistance: Particularly effective in freshwater environments.
Attractive appearance: Its golden hue makes it a popular choice for decorative and architectural elements.

Common brass alloys used in sheet metal bending include:

C26000 (Cartridge Brass): Composed of 70% Cu and 30% Zn; known for excellent formability and commonly used in hardware and ammunition casings.
C36000 (Free-Cutting Brass): Contains lead to enhance machinability; ideal for precision components.

When selecting materials for sheet metal bending, it’s crucial to consider not only the material properties but also specific bending requirements, such as bend radius, springback compensation, and the potential for stress cracking. Advanced finite element analysis (FEA) and simulation tools are increasingly employed to optimize material selection and bending parameters, ensuring successful outcomes in complex sheet metal forming operations.

What Are the Types of Sheet Metal Press Brake

A sheet metal press brake can be characterized by several fundamental parameters, including its force or tonnage and working length. Additional key factors include stroke length, the distance between the frame uprights or side housings, the distance to the back gauge, and work height. The upper beam typically operates at speeds ranging from 1 to 15 mm/s.

Press brakes come in various types, such as nut-stop hydraulic, synchro hydraulic, electric, and hybrid models. Hydraulic presses function by utilizing two synchronized hydraulic cylinders on the C-frames, which move the upper beam. Servo-electric brakes, on the other hand, employ a servo motor to drive a ballscrew or belt drive, providing the necessary tonnage to the ram.

Historically, mechanical presses dominated the market until the 1950s. These machines operated by storing energy in a flywheel powered by an electric motor, which, when engaged by a clutch, would drive a crank mechanism to move the ram vertically. Mechanical presses offered advantages in accuracy and speed. However, with the advent of advanced hydraulics and computer controls, hydraulic machines have since become the most popular option.

Modern press brakes are typically equipped with either NC (Numeric Controlled) or CNC (Computer Numeric Controlled) systems. NC controllers are more basic, while CNC controllers offer higher-end functionalities. Although CNC systems may have a higher initial cost, they can be more cost-effective in the long run due to their efficiency.

Pneumatic and servo-electric machines are generally used for lower tonnage applications. Hydraulic brakes, known for their accuracy, reliability, energy efficiency, and safety, are favored in many applications. Unlike flywheel-driven presses, the ram motion in hydraulic brakes can be easily halted by safety devices such as light curtains or presence-sensing devices, ensuring safer operation.
